DESCRIPTION
FEEL THE REAL POWER OF THE HEADPHONE AMP/DAC WITH MULTIPLE VACUUM TUBESย

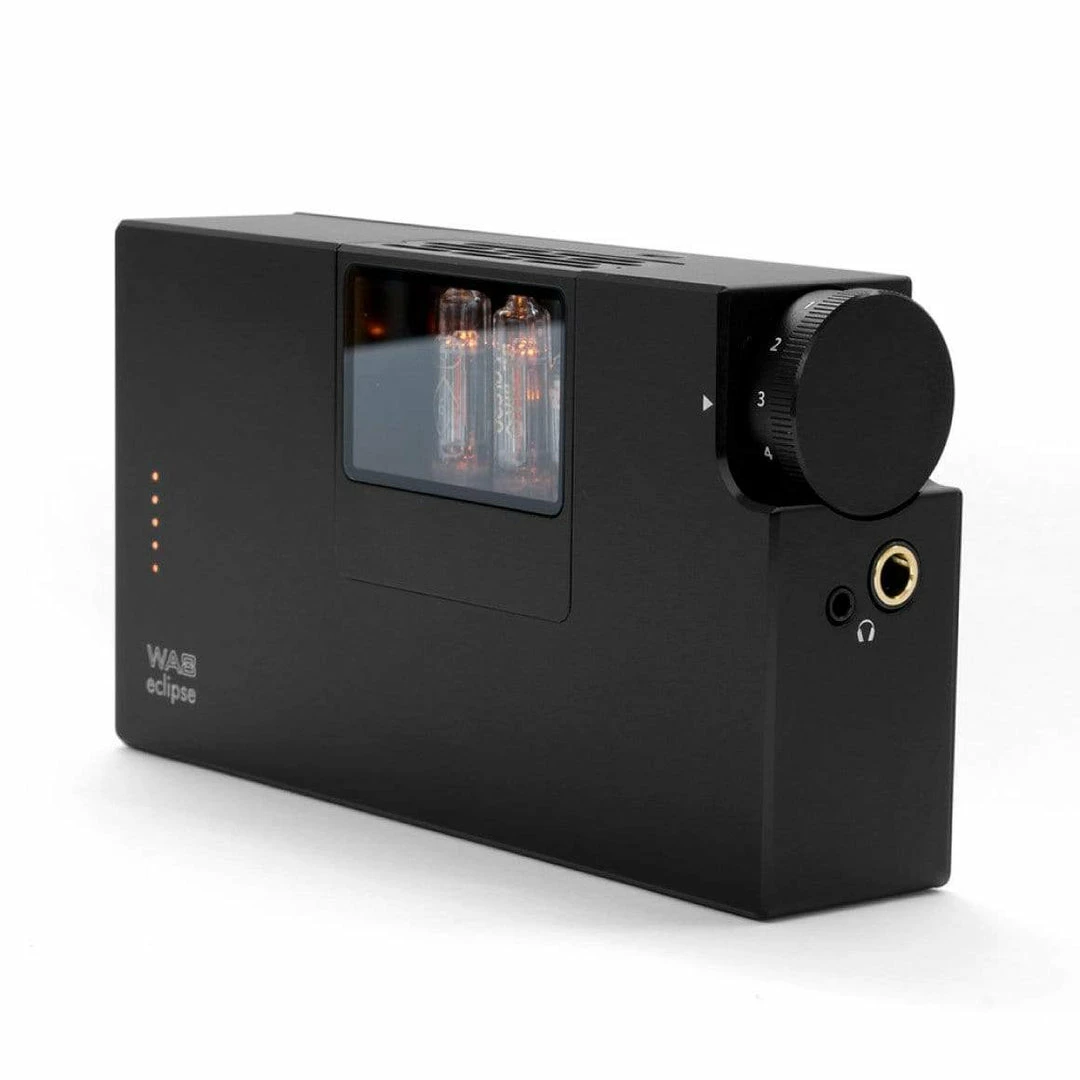

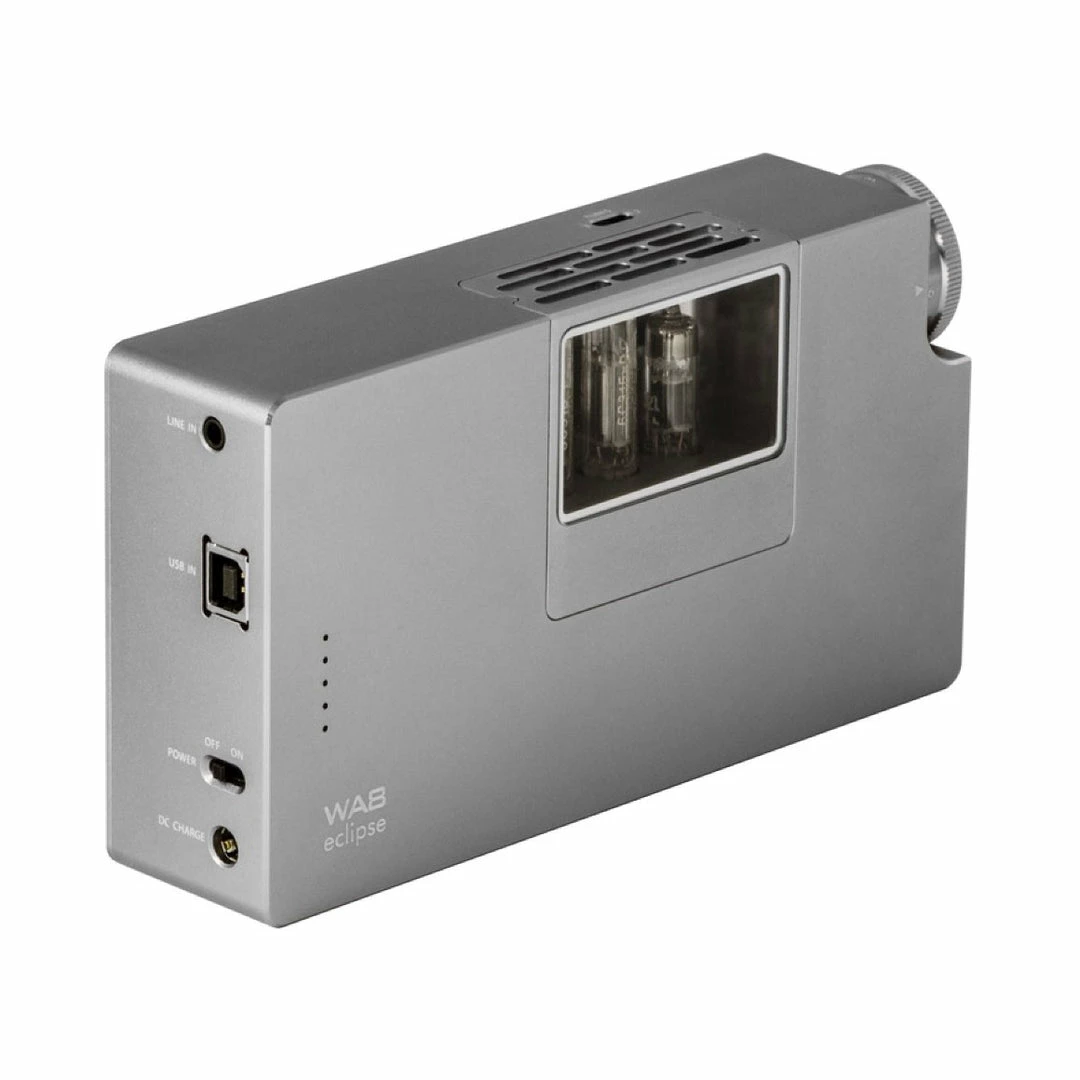

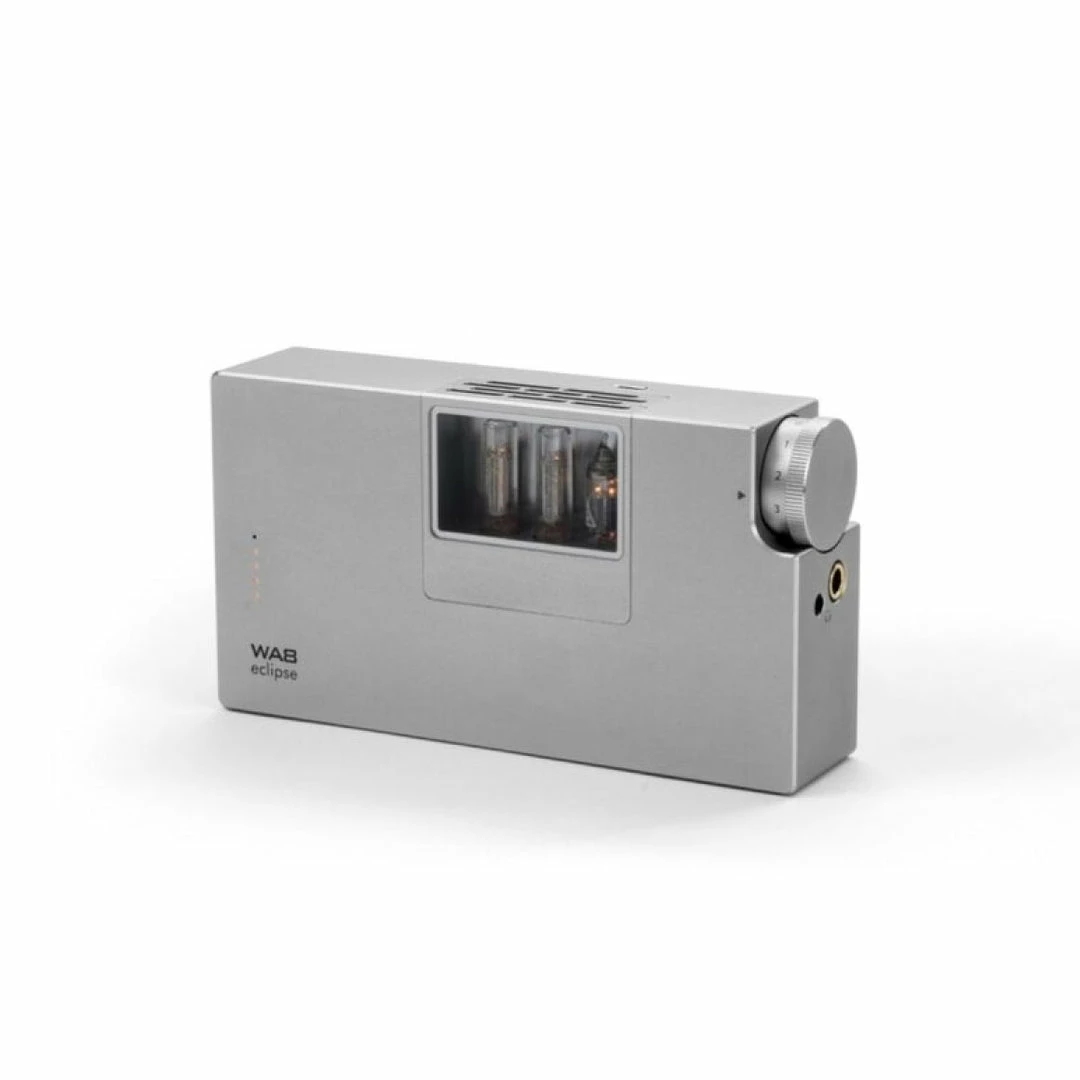

Powered withย 2ย 6S31B vacuum tubes for power andย 1 6021 tube for the driver, the Woo Audioย WA8 Eclipseย allows you to select whether you want to use two or all three tubes at one time. The Class-A, single-ended triode topology of the WA8 eclipse uses output transformers made of OCC single crystal copper toย offer high bandwidthย with no audioย loss.

ENJOY MUSIC IN HIGH-QUALITY SOUND WITH THE AUDIOPHILE-GRADE DAC CHIP
Enjoy only high-quality sound with the WA8 Eclipse Headphone Amplifier / DAC. It uses an audiophile-grade ESS SABRE Reference ES9018M DAC Chip and hasย a sampling rate of 24-bit/384kHz.

A 4-HOURย BATTERY LIFE FOR ON-THE-GO MUSIC LISTENING CONVENIENCE
The W8 Eclipse is powered by aย battery, making it ideal for out-of-home music listening. You get a powerful sound for 4 hours on a single charge. When the battery level goes down, plug it in an electrical socket and listen to it while charging.


DRIVES ALMOST ANYTHING FROM POWER-HUNGRY HEADPHONES TO SENSITIVE IEMS
Regardless of whichย headphone you are pairing, the W8 Eclipseย is ableย to drive just about anyย headphone. Even power-hungry headphones with up to 600ฮฉ can be seamlessly drivenย by the E8 Eclipse while the ultra-low noise circuitryย delivers aย crystal-clear sound even forย IEMs.

SPECS
| HEADPHONE AMP DESIGN | All-tube, Single-ended, class-A, transformers output |
| POWER SUPPLY | Rechargeable Lithium-ion battery, 3400mAh, 36.72Wh |
| TUBE USED | One matched pair of 6S31B, one 6021 |
| USB RECEIVING CHIPSET | XMOS xCore Audio |
| DAC CHIP | ES9018K2M |
| SAMPLING RATE | Up to 24-Bit, 384kHz |
| INPUTS | One Asynchronous USB2.0 digital One 3.5mm (1/8″) analog |
| OUTPUTS | One 6.3mm (1/4″) and 3.5mm (1/8″) headphone outputs, |
| HEADPHONES IMPEDANCE | 8-600 Ohms |
| RCA IMPUT IMPEDANCE | 100 Kilo-Ohms |
| MAX OUTPUT | Approx. 350mW @ 45 ohms |
| FREQUENCY RESPONSE | 20Hz to 30kHz, +/-0.5dB |
| SUPPORTED DEVICES | XMOS xCORE-AUDIO asynchronous USB compatible with Mac, PC, Android and iOS devices |
| S/N | 100dB |
| POWER CONSUMPTION | 25 Watts on charging |
| BATTERY CHARGER | 100-240V, 50/60Hz |
| AMP BODY FINISH | CNC-milled aluminum enclosure, available in anodized black, space gray |
| DIMENSIONS | 6.69″ (L) x 3.6″ (W) x 1.69″ (D) / 170mm (L) x 92mm (W) x 43mm (D) |
| WEIGHT | 2.4lbs / 1.09kg (amplifier only) |
| BOX CONTENTS |
1. WA8 Eclipse amplifier/DAC x 1 |
| 2. Pelican hard case x 1 | |
| 3. AC Charger x 1 | |
| 4. USB cable x 1 | |
| 5. Quick start guide |
