DESCRIPTION
YOUR EARSPEAKERS’ BEST FRIEND, CONNECTS TO ALL

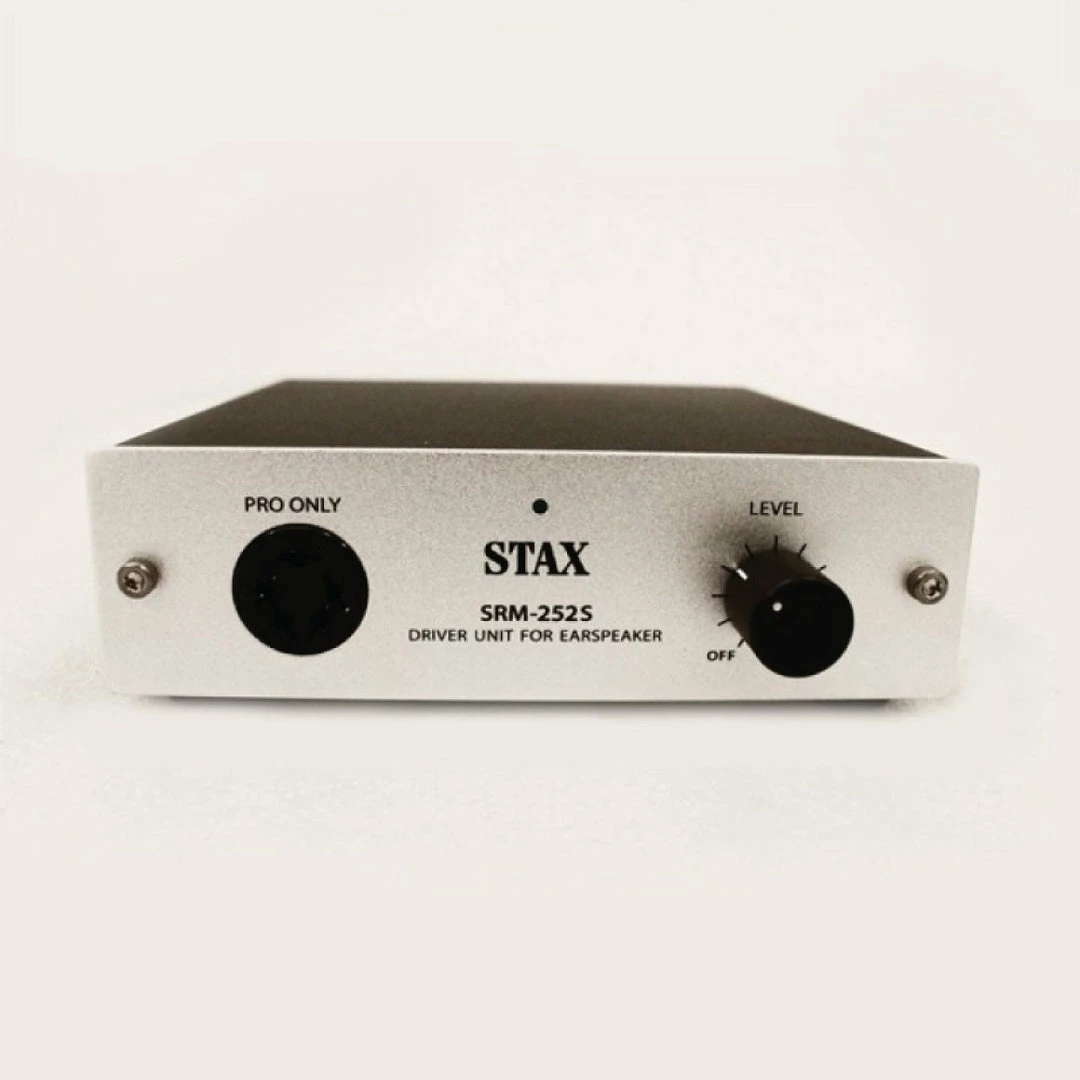

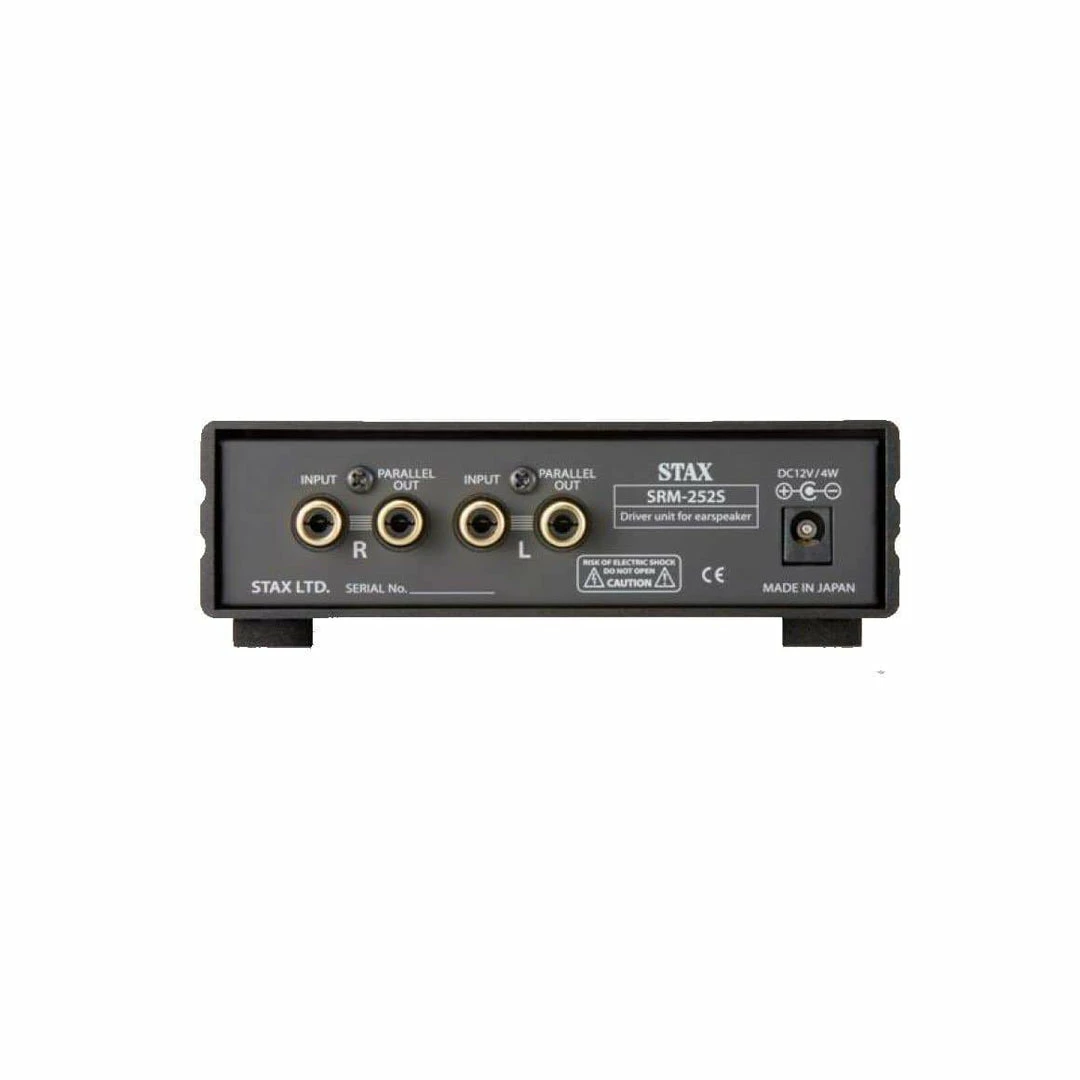

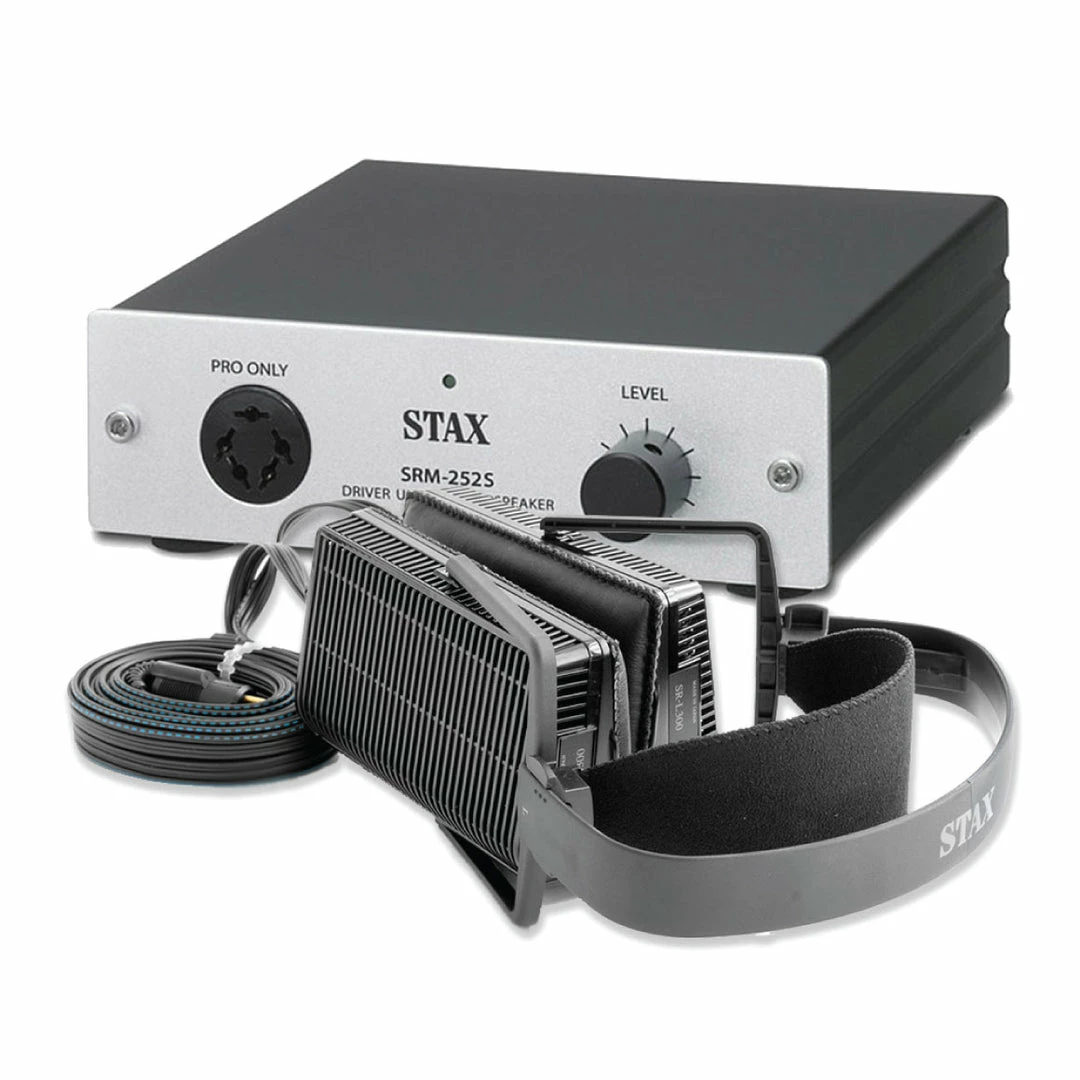

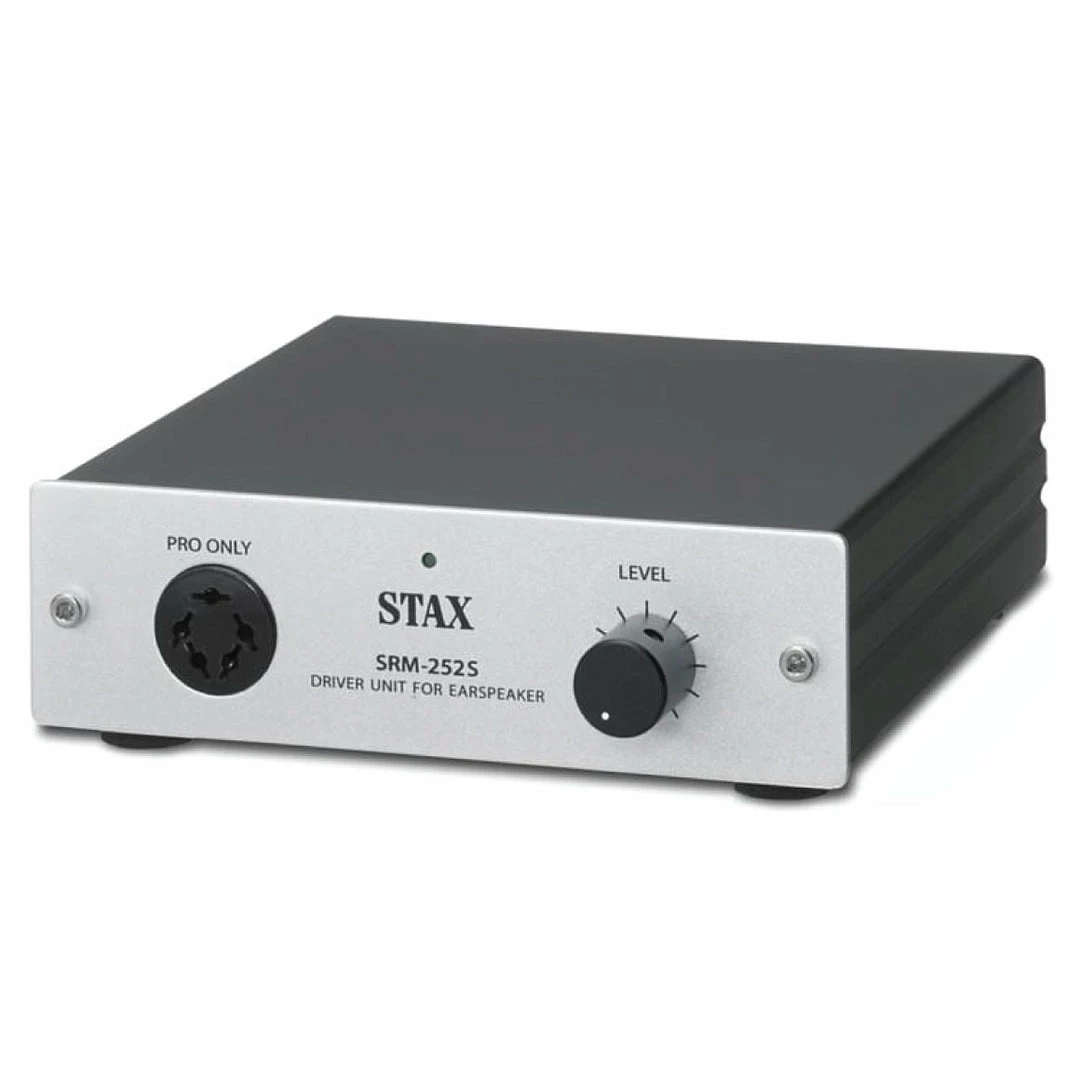

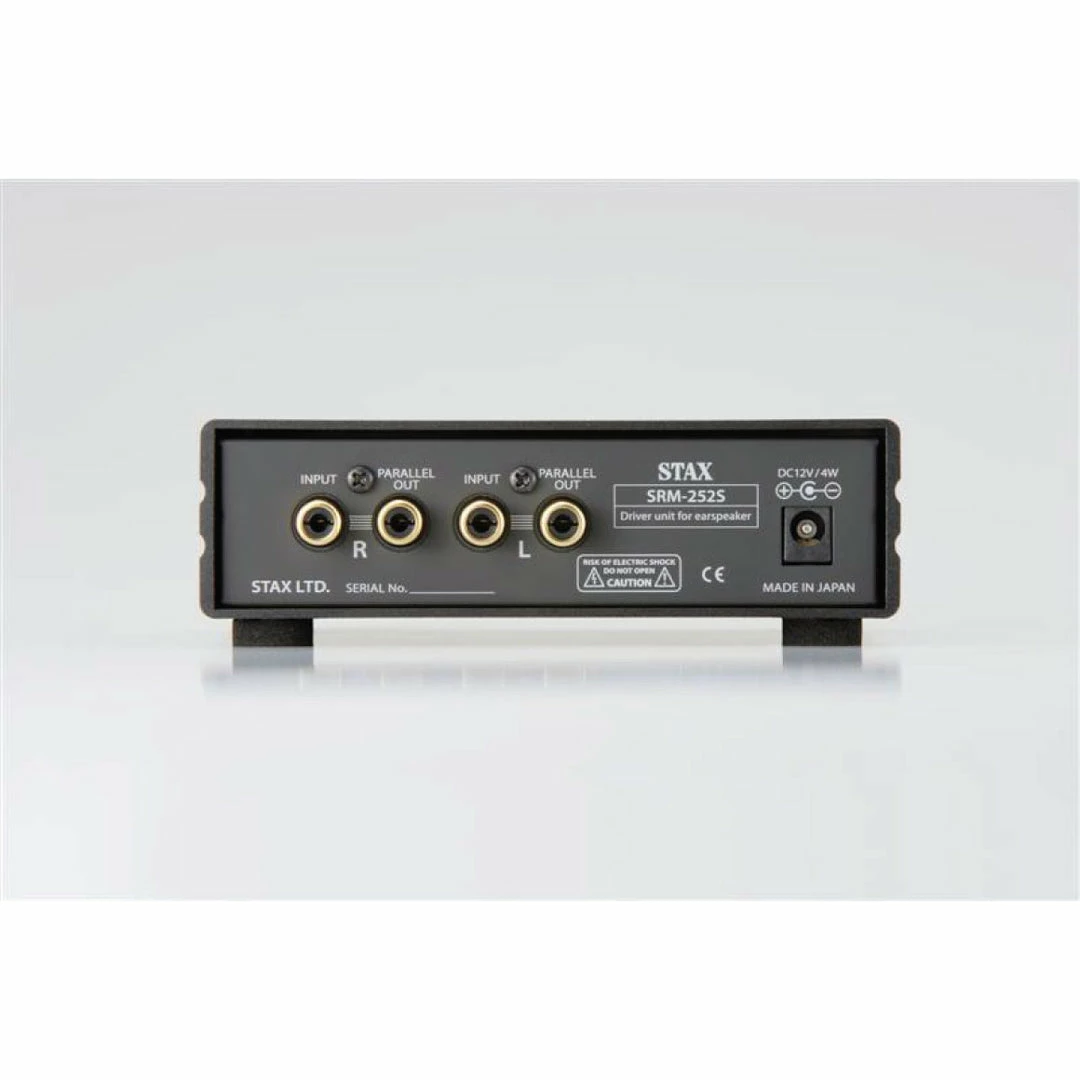

The SRM-252S has been exclusively designed for STAX earspeakers. This driver unit works as an amplifier. Pair your headphones with the SRM-252S and enjoy the best that the world of music has to offer. With its high-quality PRO-bias 5-pin connector, the STAX SRM-252S can directly connect to a portable audio player, CD player or PC via its audio output terminal. You can also simultaneously connect it to a loudspeaker thanks to the parallel output terminal.



THE FINEST MUSIC, BEAUTY WITH FUNCTIONALITY
New high-voltage transistors and low-noise FETs are carefully selected for the best audio experience. Smooth and rich sound is produced by the output stage thanks to the emitter-follower configuration. The class-A amplification does not have any coupling capacitors. This lets you hear your music with every detail crystal-clear. The SRM-252S features a simple design that is high on functionality. This driver unit is the size of a CD jacket case. The aluminium extrusion chassis does away with the heat caused by the inbuilt class-A DC amplifier while at the same time, improving its reliability.



SPECS
| FREQUENCY RESPONSE | DC- 35 kHz (40Vr.m.s. output SR-207, when using one unit) |
| TOTAL HARMONIC DISTORTION | max. 0.01% (1 kHz / during 100 V r.m.s. output) |
| INPUT IMPEDANCE | 50 kΩ (RCA) |
| MAX. OUTPUT VOLATGE | 280 V r.m.s. / 1 kHz |
| STANDARD BIAS VOLTAGE | DC580 V (PRO bias) |
| RATED INPUT LEVEL | 125 mV with 100V output |
| MAX. INPUT LEVEL | 30 V r.m.s. with volume at minimum setting |
| AMPLIFICATION | 58 dB (x800) |
| TEMPERATURE RANGE FOR USE | Between 0º and 35ºC, max. 90% (no condensation) |
| POWER CONSUMPTION | DC12V, 4W/ Exclusive AC adaptor attached For your area |
| EXTERNAL DIMENSIONS | 132 (W) × 38 (H) × 132 (D) mm (without Knob, Pin jack) |
| WEIGHT | 540g |
| BOX CONTENTS | 1. STAX SRM-252S |
FAQs
WARRANTY AND MEDIA REVIEWS
1 Year Warranty
Don’t sweat it, this STAX SRM-252S comes with a 1 year warranty from STAX that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer’s warranty.
Read more about STAX’s warranty in India.























Reviews
There are no reviews yet.
