Best deal 🧨 Portable Amps &DACs TOPPING – NX7 🔔

Original price was: $217.43.Current price is: $91.99.

SKU: topping-7310972092604 Category: Portable Amps &DACs Tags: __labelop:Our Pick, CI_AMP, Collection_E20K, Detailedreviewforamps_dacs, Filters_Portable Amps/DACs, K_Audiophiles, Noreturn, YouTube_Reviews

Safe and Secure Payments, Always
The best quality products, always.
Unbeatable Quality Guaranteed
Safe Payments for a Better Shopping Experience

Chi-Fi
Excellence

1 Year of
Warranty

Ideal for
Audiophiles

Best Suited for
Portable Use

20 Hours of
Battery Life

4.4mm
Balanced Output

Pair with Laptop
via USB

Upto 1400mW x2 @32Ω
Power Output

Battery Capacity of
4000 mAh

Super Lightweight
Design

Volume
Controls

DESCRIPTION

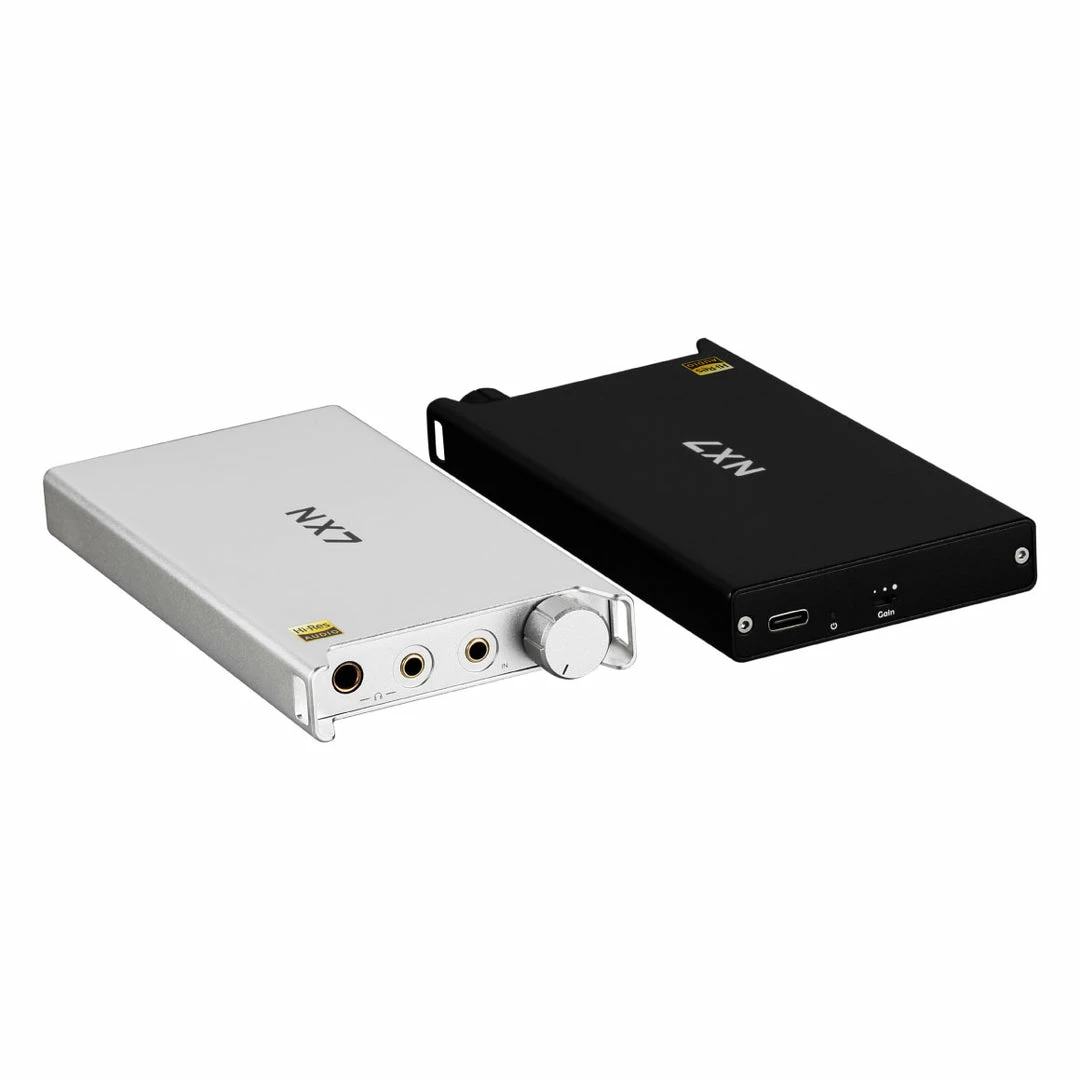

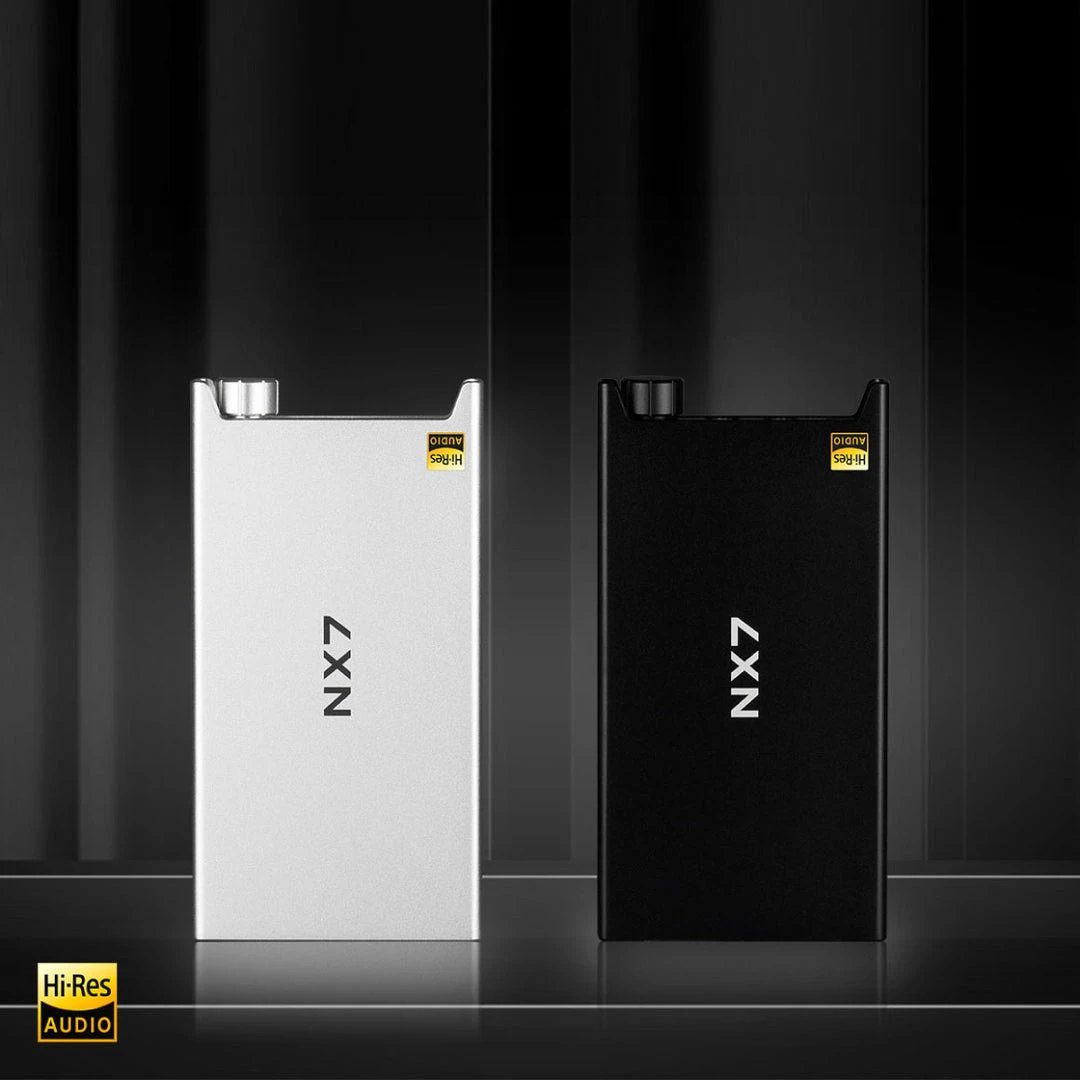

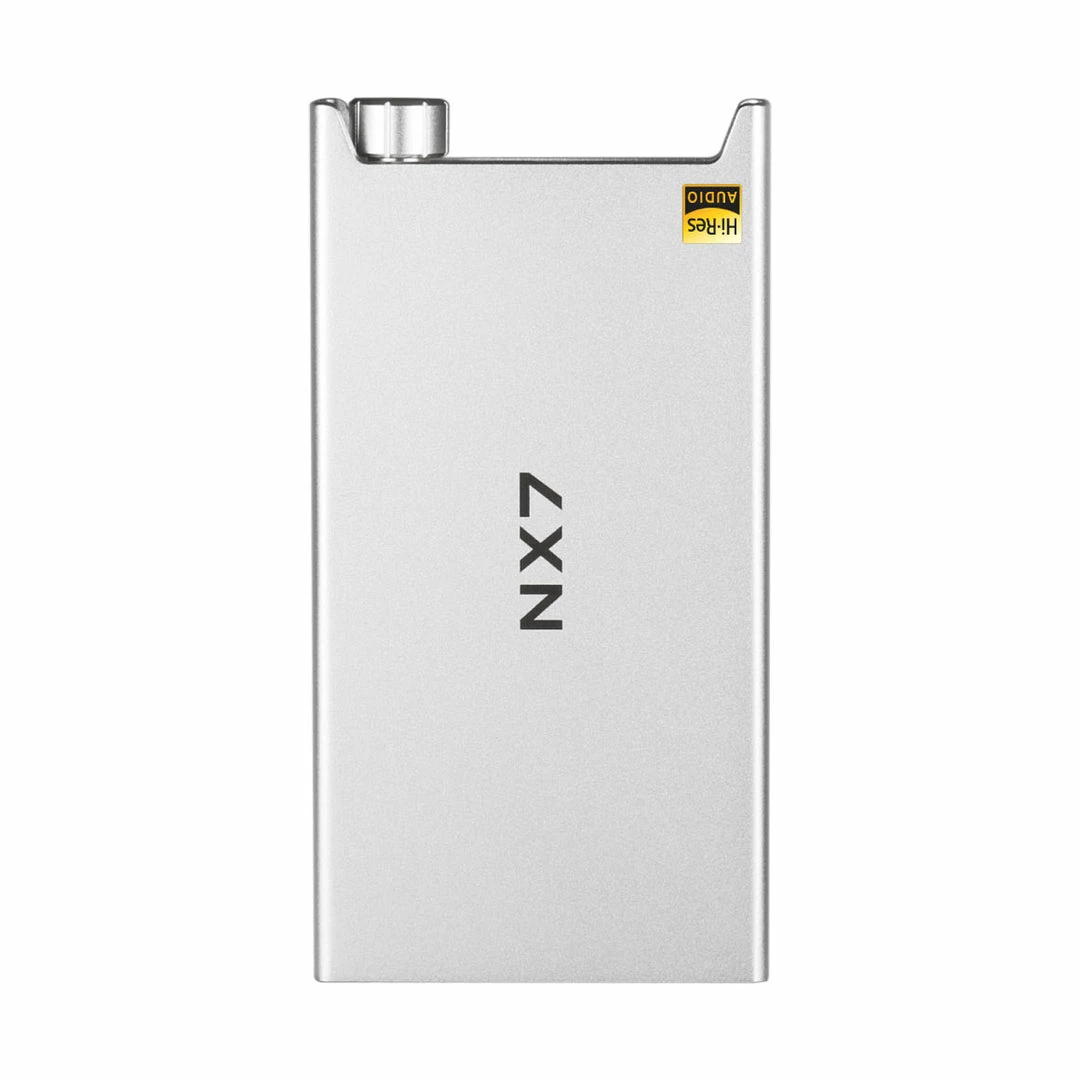

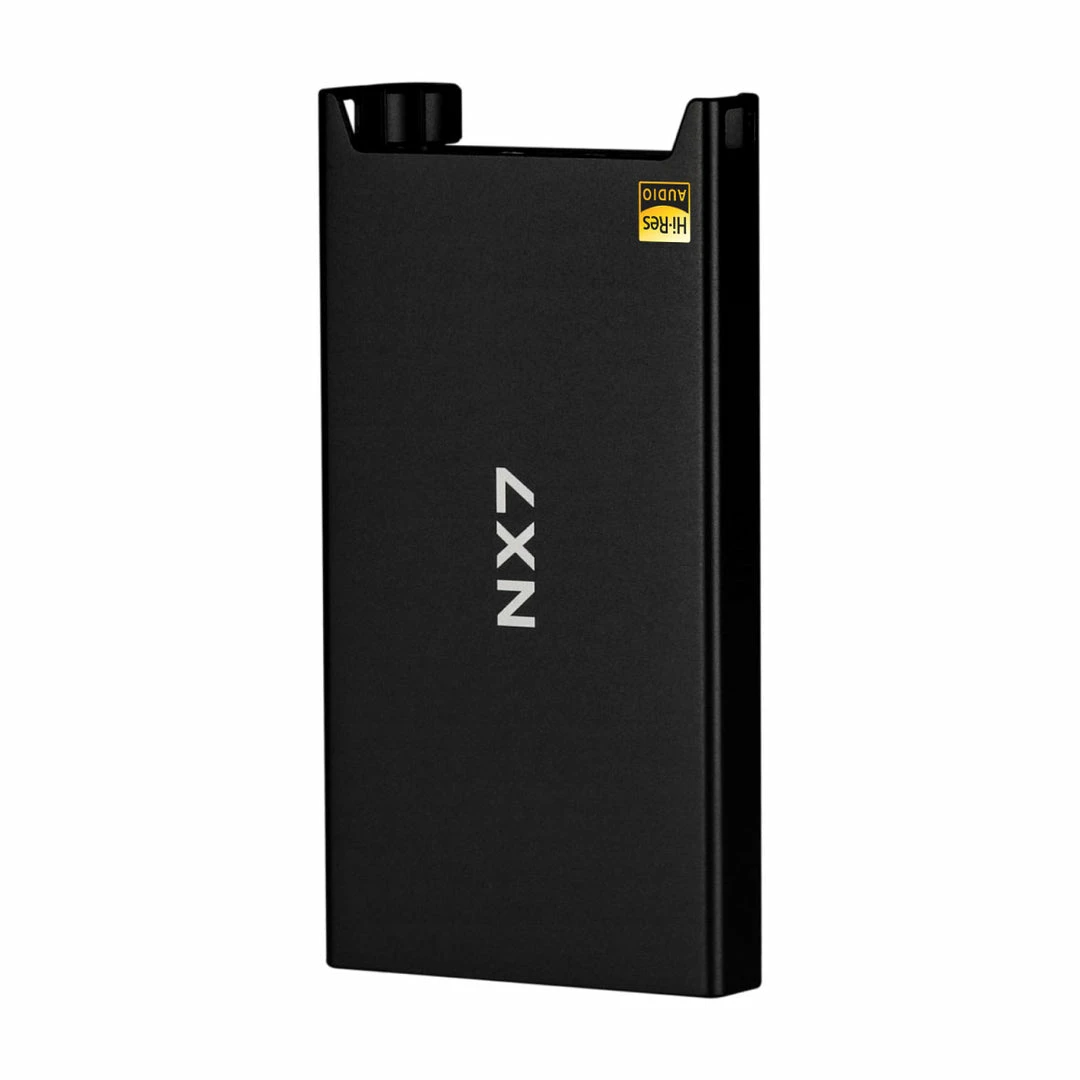

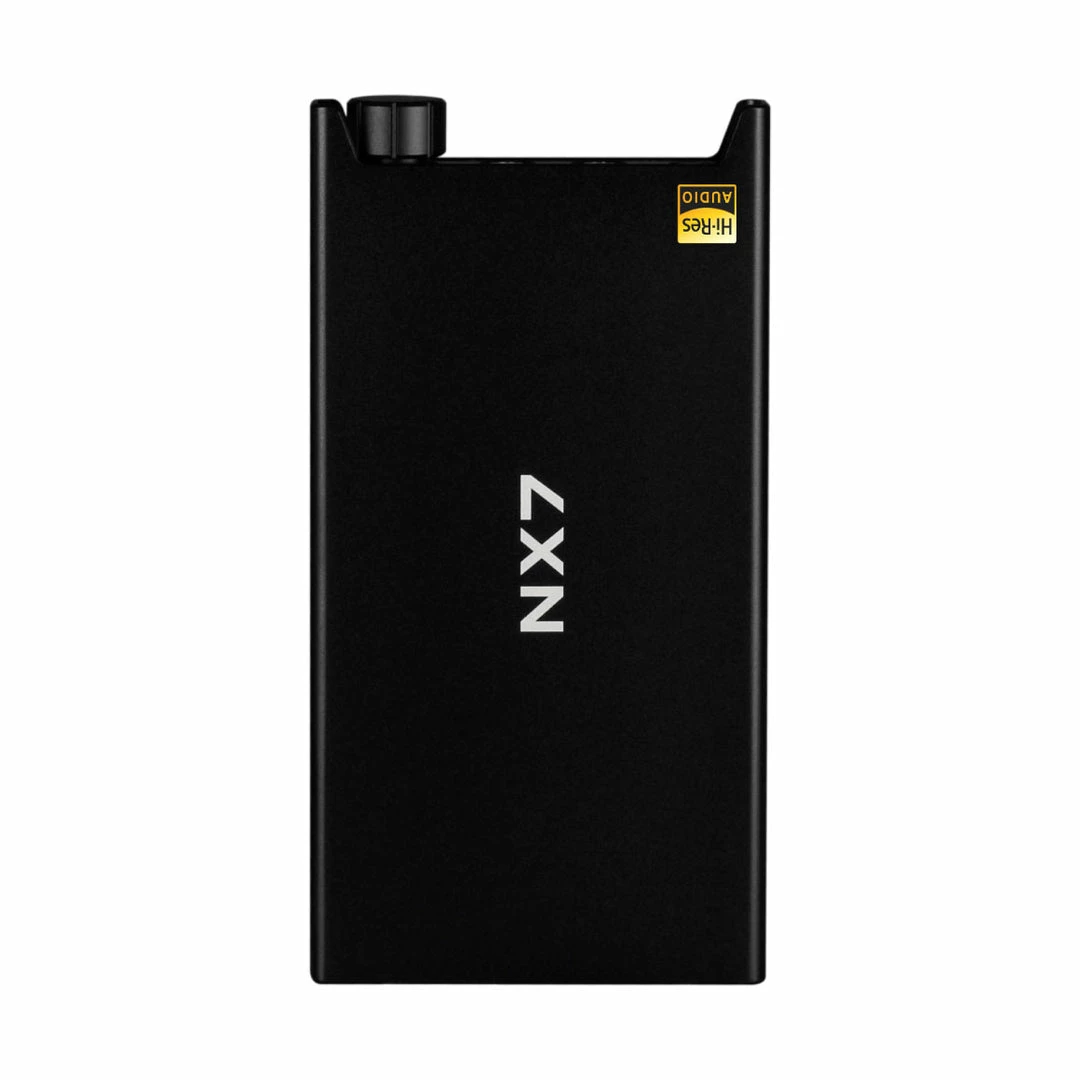

The Topping NX7 is the latest flagship portable headphone amplifier. Topping has developed an NFCA module specifically for portable amplifiers like the NX7. The NFCA (Nested Feedback Composite Amplifier) module achieves clean and high power with low output impedance. The low idle power consumption allows for extended battery life. The NX7 delivers a value of 0.00007% for THD + N and 135 dB for SNR, making it one of the cleanest portable amplifiers.

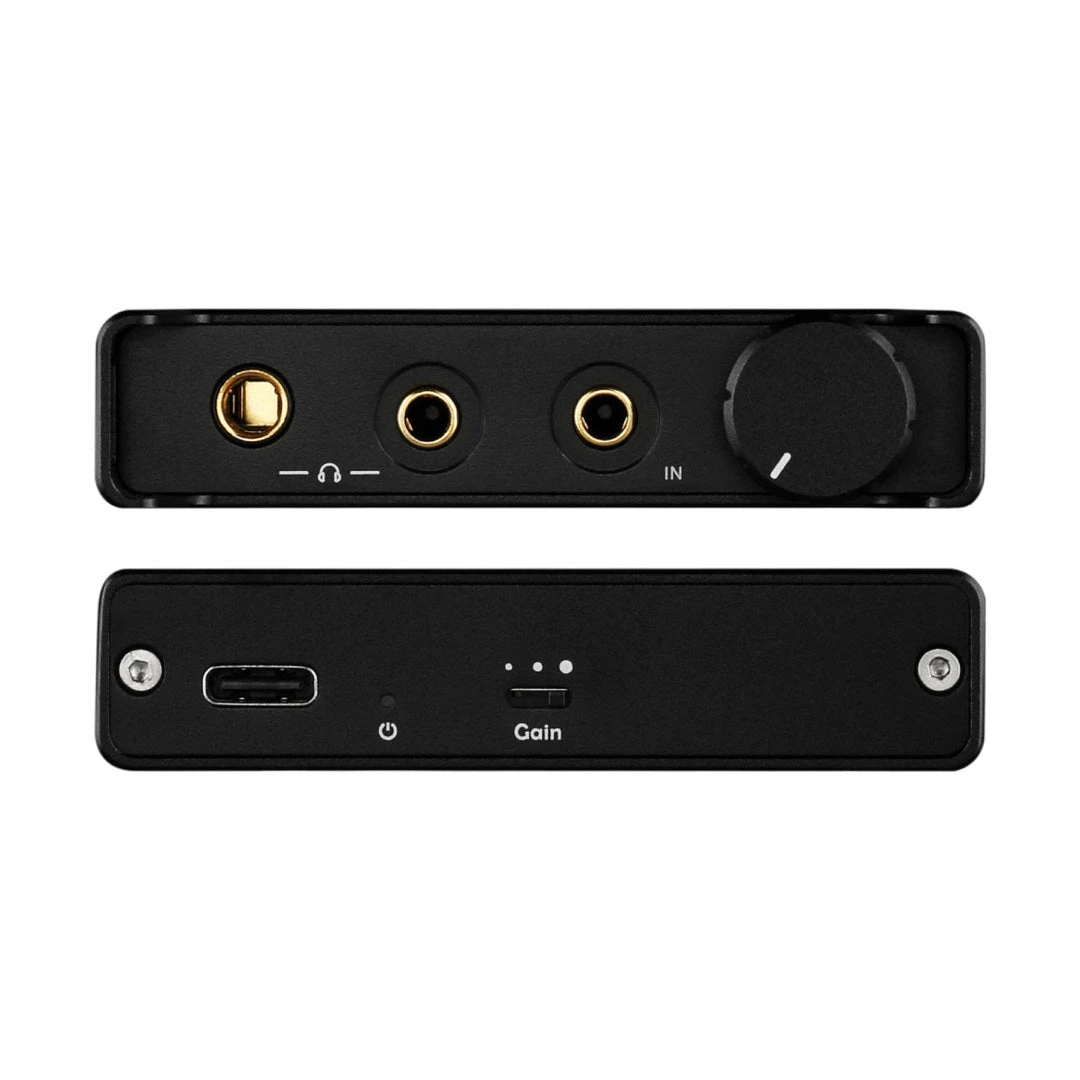

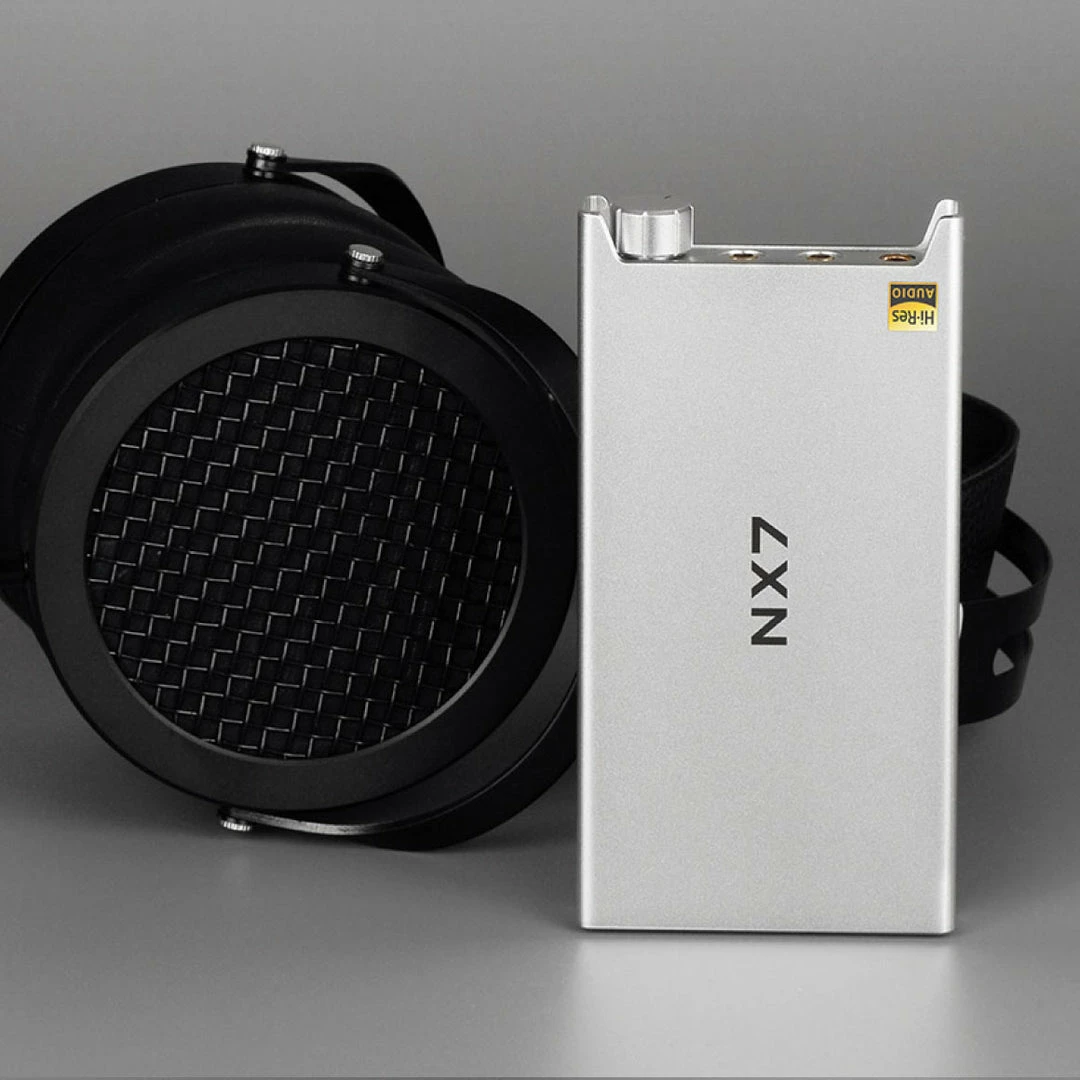

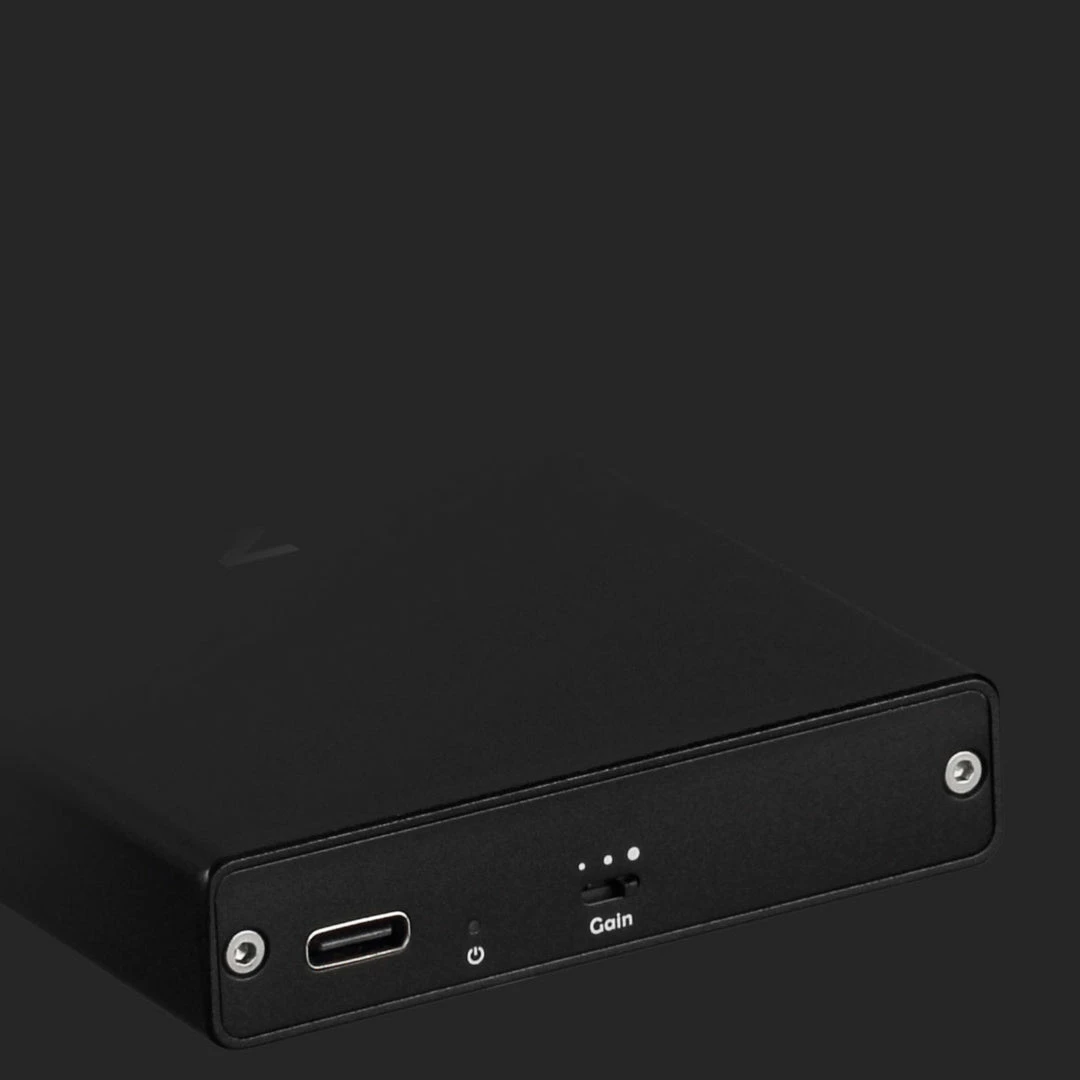

Topping NX7 has been engineered with careful consideration to drive full-sized headphones and even sensitive IEMs with ease. This is possible with the 3-step gain settings embedded in the NX7. With the help of its 3-step gain setting, NX7 can easily power full-sized headphones. The NX7 can output 180mW of high power under a load of 300Ω. Using the low gain of the NX7, you can drive IEMs. At -13.8dB, the low gain option gives you plenty of room to control the volume of extremely sensitive IEMs without damaging them or your hearing.

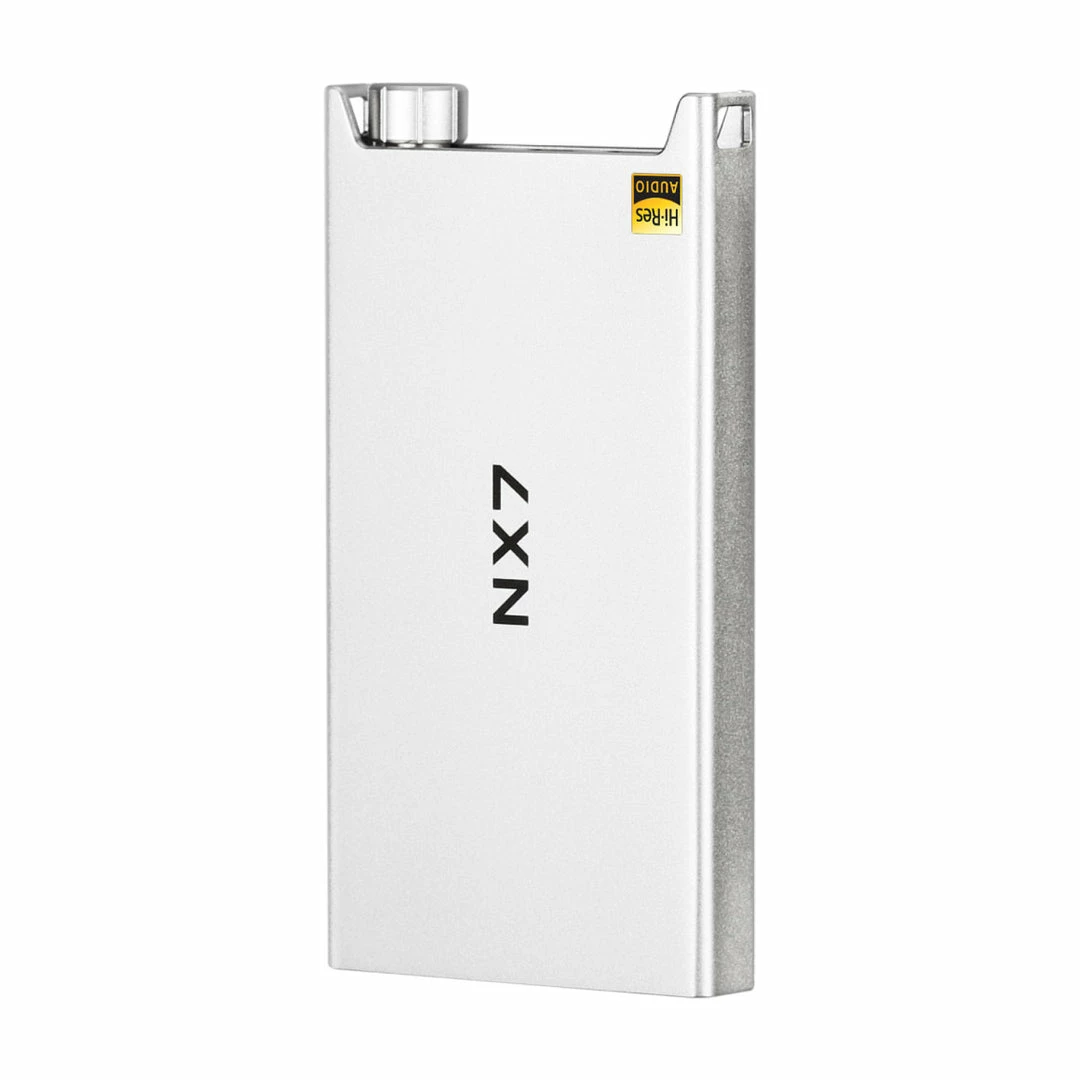

The team of designers at Topping have gone to all lengths to ensure that users of NX7 have the most enjoyable and worry-free operation when using the device. This ideology is reflected in the final design and offers a thoughtful solution to common issues. The Topping NX7 is designed with corner guards at both ends to protect the entire panel, effectively preventing the volume knob from being accidentally touched in the pocket and reducing the possibility of breaking the headphone plug. This design is considered and resolves issues with portable devices so you can enjoy music without worry.

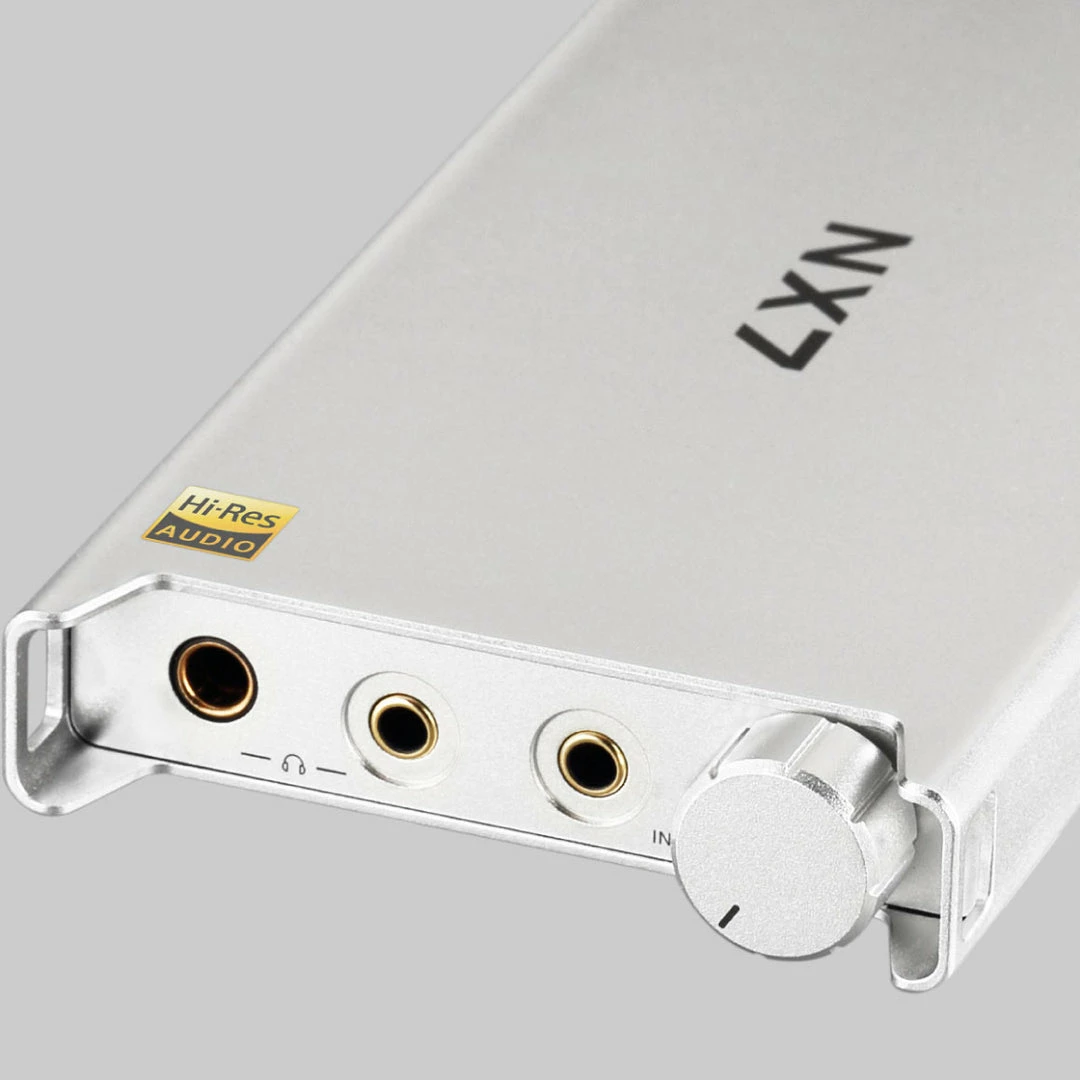

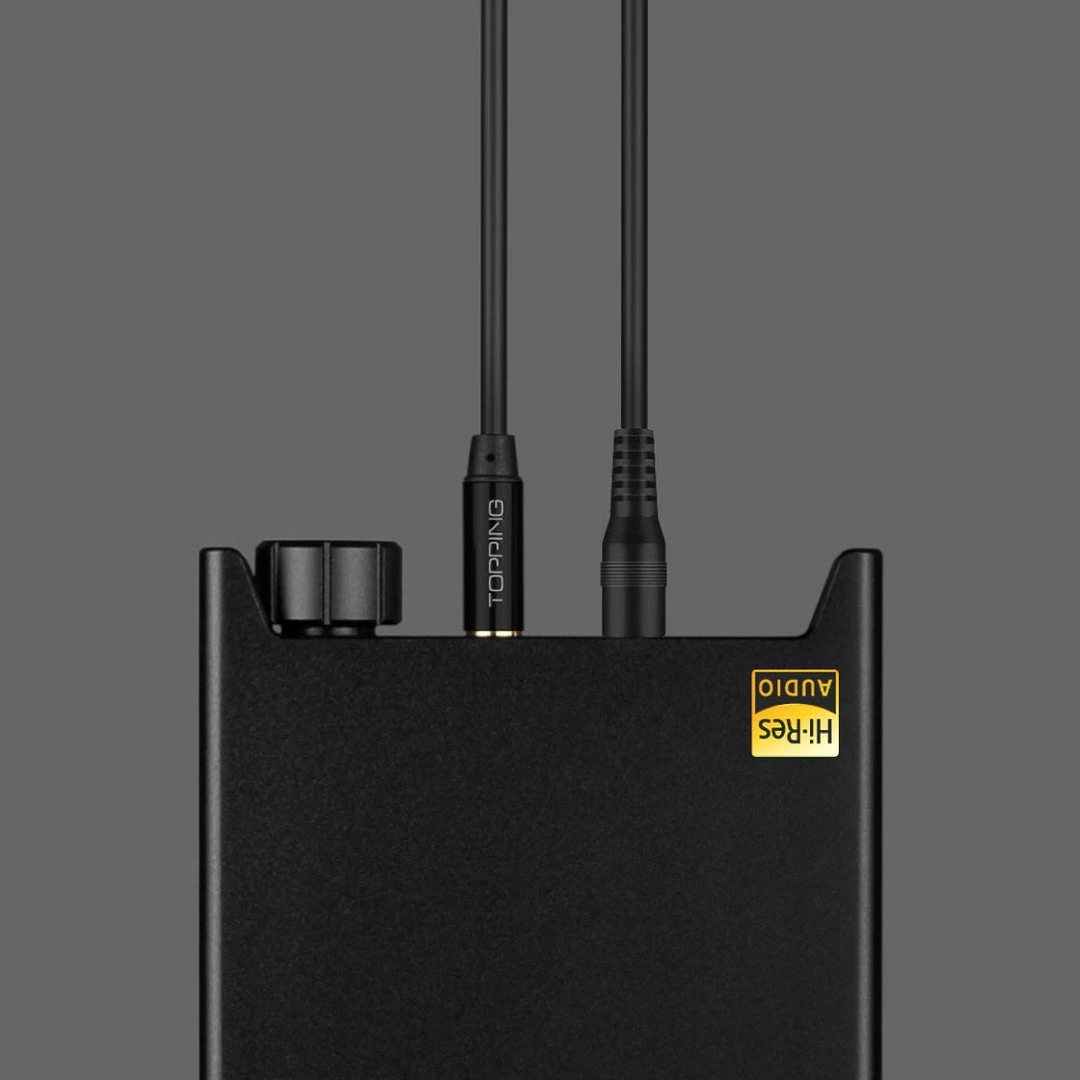

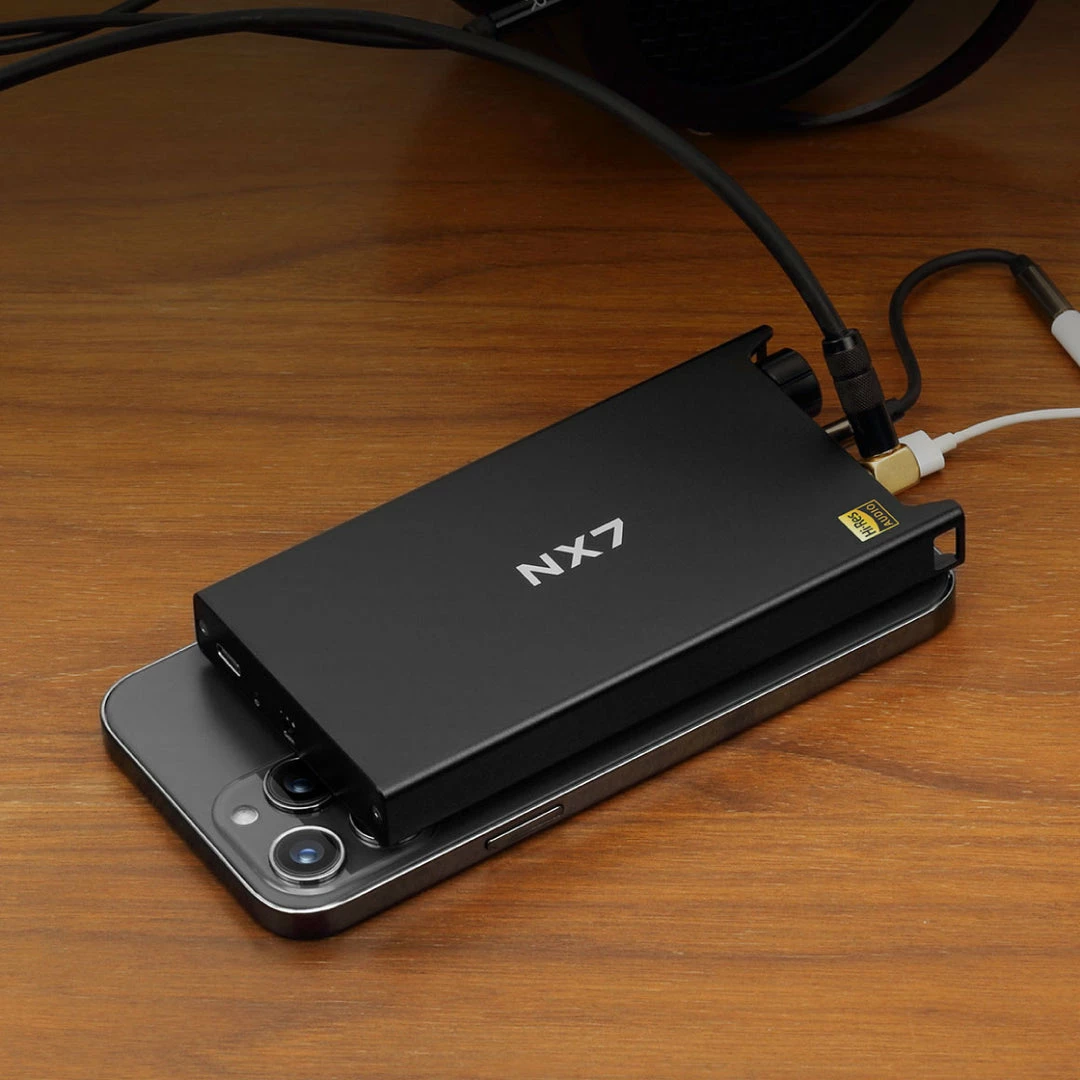

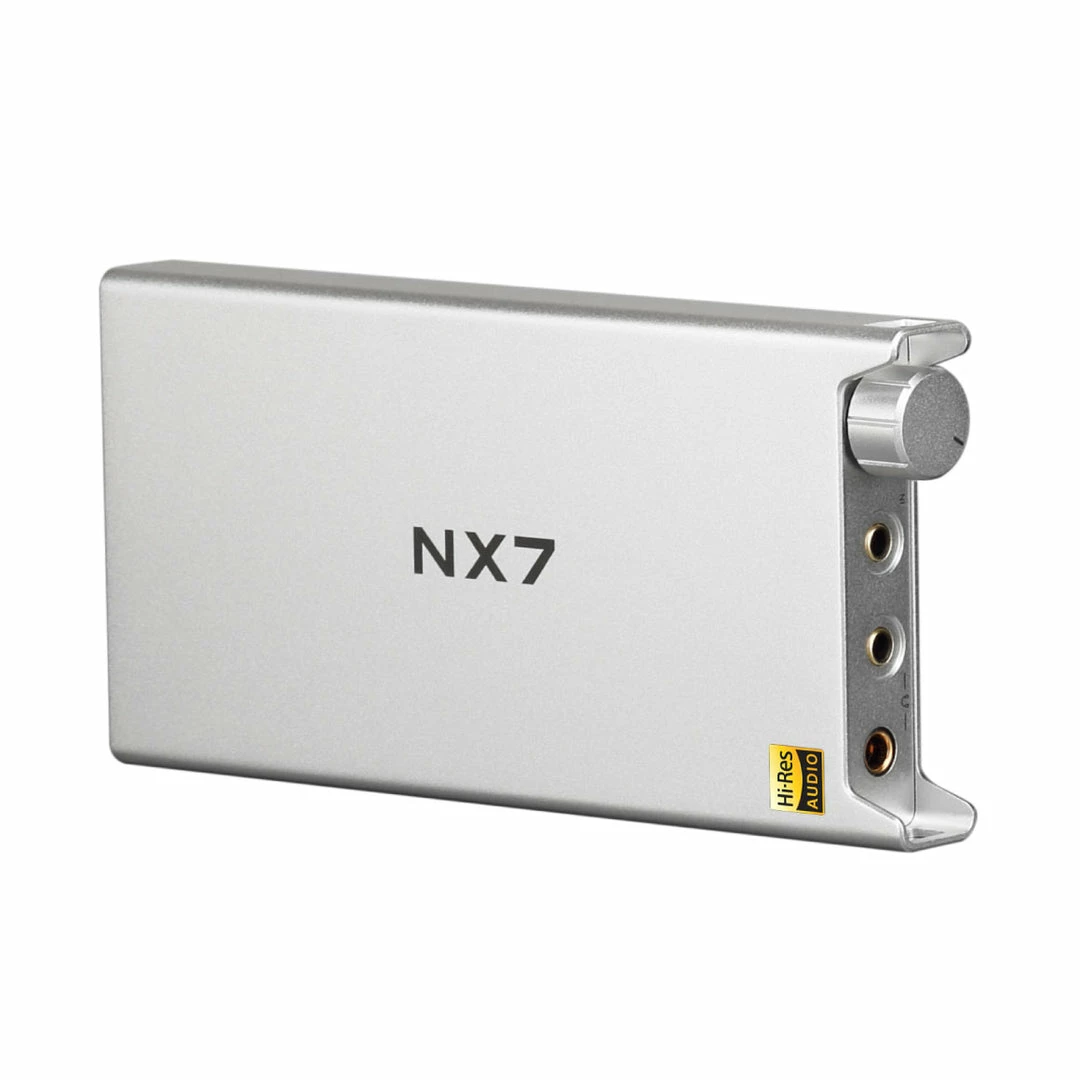

Even though the Topping NX7 is a slim and portable device, it packs a punch in battery life. The NX7 is optimised to offer a long battery life. It can be battery-powered for 20 hours at a medium gain and can reach 10 hours at high gain. Along with this, the output impedance is 0.1Ω. As a result, even high-sensitivity IEMs do not cause timbre colouring. With Topping NX7, you can use it without hiss noise without having to think about sound matching. The NX7 also offers dual headphone outputs with 3.5mm and 4.4mm connections to plug your headphones or IEMs.

Topping NX7 comes bundled with an array of accessories to help you get started with the NX7. You get a USB charging cable and a 3.5mm to 3.5mm audio cable for quick connectivity and charging the NX7. You also get a rubber pad and rubber band to place your NX7 and avoid damaging the device. Along with these, you get a user manual and a warranty card to get you started. The inclusion of these accessories is thoughtful and allows you to get started with NX7 right out of the box.

SPECS

3.5MM HEADPHONE OUTPUT

THD+N @1kHz (A-wt)	<0.00008% @ 200mW 32Ω <0.00007% @83mW 300Ω
THD @20-20kHz (90kBW)	<0.0010% @ 200mW 32Ω <0.0002% @ 83mW 300Ω
SNR @ MAX OUT 1kHz (A-wt)	135dB
SNR @ 50mV OUT 1kHz	104dB
DYNAMIC RANGE @1kHz (A-wt)	135dB
FREQUENCY RESPONSE	20Hz – 40kHz (±0.1dB)
OUTPUT LEVEL	7.4Vpp @G=L 11Vpp @G=M 21Vpp @G=H
AP MEASURE NOISE LEVEL@A-wt	<0.7uVrms @G=L <0.7uVrms @G=M <2.0uVrms @G=H
AP MEASURE NOISE LEVEL@A-wt	<0.3uVrms @G=L <0.3uVrms @G=M <1.3uVrms @G=H
CHANNEL CROSSTALK@1kHz	-91dB
INPUT SENSITIVITY	13Vrms @G=L 4Vrms @G=M 1.5Vrms @G=H
GAIN	-13.8dB @G=L -0.1dB @G=M 13.9dB @G=H
OUTPUT IMPEDANCE	<0.1Ω
OUTPUT POWER	1200mW x2 @16Ω THD+N<0.1% 1400mW x2 @32Ω THD+N<0.1% 820mW x2 @64Ω THD+N<0.1% 180mW x2 @300Ω THD+N<0.1% 90mW x2 @600Ω THD+N<0.1%
ADAPTER IMPEDANCE	>8Ω

4.4MM HEADPHONE OUTPUT

THD+N @1kHz (A-wt)	<0.00008% @ 200mW 32Ω <0.00007% @83mW 300Ω
THD @20-20kHz (90kBW)	<0.0010% @ 200mW 32Ω <0.0002% @ 83mW 300Ω
SNR @ MAX OUT 1kHz (A-wt)	135dB
SNR @ 50mV OUT 1kHz	104dB
DYNAMIC RANGE @1kHz (A-wt)	135dB
FREQUENCY RESPONSE	20Hz – 40kHz (±0.1dB)
OUTPUT LEVEL	7.4Vpp @G=L 11Vpp @G=M 21Vpp @G=H
AP MEASURE NOISE LEVEL@A-wt	<0.7uVrms @G=L <0.7uVrms @G=M <2.0uVrms @G=H
AP MEASURE NOISE LEVEL@A-wt	<0.3uVrms @G=L <0.3uVrms @G=M <1.3uVrms @G=H
CHANNEL CROSSTALK@1kHz	-96dB
INPUT SENSITIVITY	13Vrms @G=L 4Vrms @G=M 1.5Vrms @G=H
GAIN	-13.8dB @G=L -0.1dB @G=M 13.9dB @G=H
OUTPUT IMPEDANCE	<0.1Ω
OUTPUT POWER	1200mW x2 @16Ω THD+N<0.1% 1400mW x2 @32Ω THD+N<0.1% 820mW x2 @64Ω THD+N<0.1% 180mW x2 @300Ω THD+N<0.1% 90mW x2 @600Ω THD+N<0.1%
ADAPTER IMPEDANCE	>8Ω

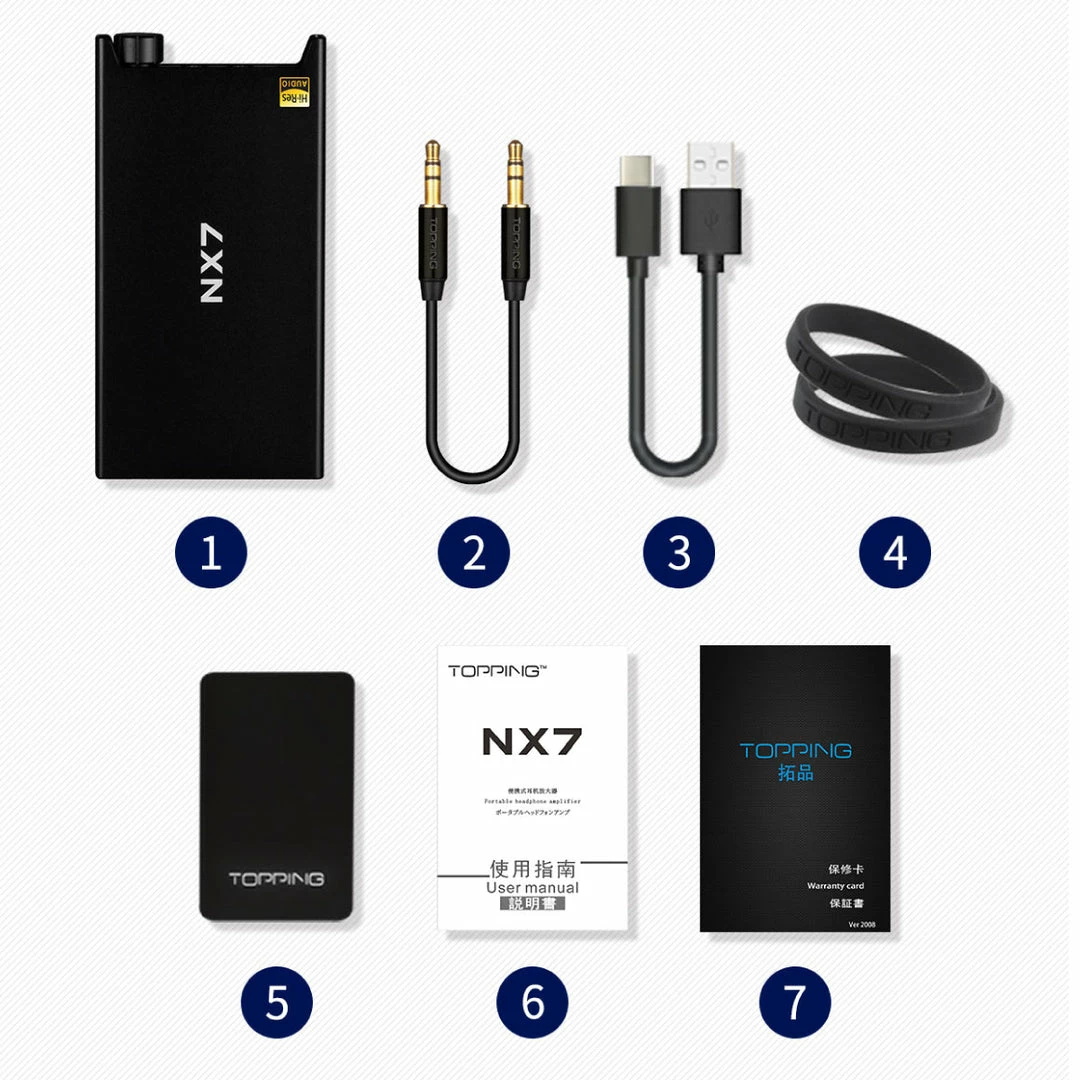

IN THE BOX

BOX CONTENTS	1. TOPPING NX7
	2. 3.5 to 3.5 Audio Cable
	3. USB Charging Cable
	4. Rubber band
	5. Rubber pad
	6. User Manual
	7. Warranty Card

FAQs

: All TOPPING products come with 1 year of warranty. To claim warranty read more on TOPPING Warranty here.
: Yes! The TOPPING NX7 does support Hi-Res Audio that makes sure you always have the best sound output.
: TOPPING NX7 comes with 16Ω – 1200mW x2, 32Ω – 1400mW x2, 64Ω – 820mW x2,300Ω – 180mW x2, 600Ω – 90mW x2 load power.
: Yes, the TOPPING NX7 comes with a 4.4mm balanced output.
: For the 3.5mm headphone output the impedance is <0.1Ω and for the 4.4mm balanced headphone output the impedance is <0.1Ω
