Cheapest 👍 Portable Amps &DACs FiiO – BTR5 2021 🎉

Original price was: $84.55.Current price is: $65.10.

SKU: fiio-7221553135804 Category: Portable Amps &DACs Tags: CI_9 hrs, CI_LDAC, Collection_E10K, Detailedreviewforamps_dacs, Fiio-btr5-2021-unboxed-reviews, Filters_Portable Amps/DACs, K_Audiophiles, Topconvertingforfb

Safe and Secure Payments, Always
The best quality products, always.
Unbeatable Quality Guaranteed
Safe Payments for a Better Shopping Experience

Chi-Fi
Excellence

1 Year of
Warranty

Ideal for
Taking Calls

Ideal for
Audiophiles

Best Suited for
Portable Use

Bluetooth with LDAC
aptX LL, aptX HD & AAC

9 Hours of
Battery Life

2.5mm
Balanced Output

Pair with Laptop
via USB C

ESS Sabre ES9219C
Dual DAC Chip

Upto 240mW @ 32Ω
Power Output

Battery Capacity of
550 mAh

DESCRIPTION

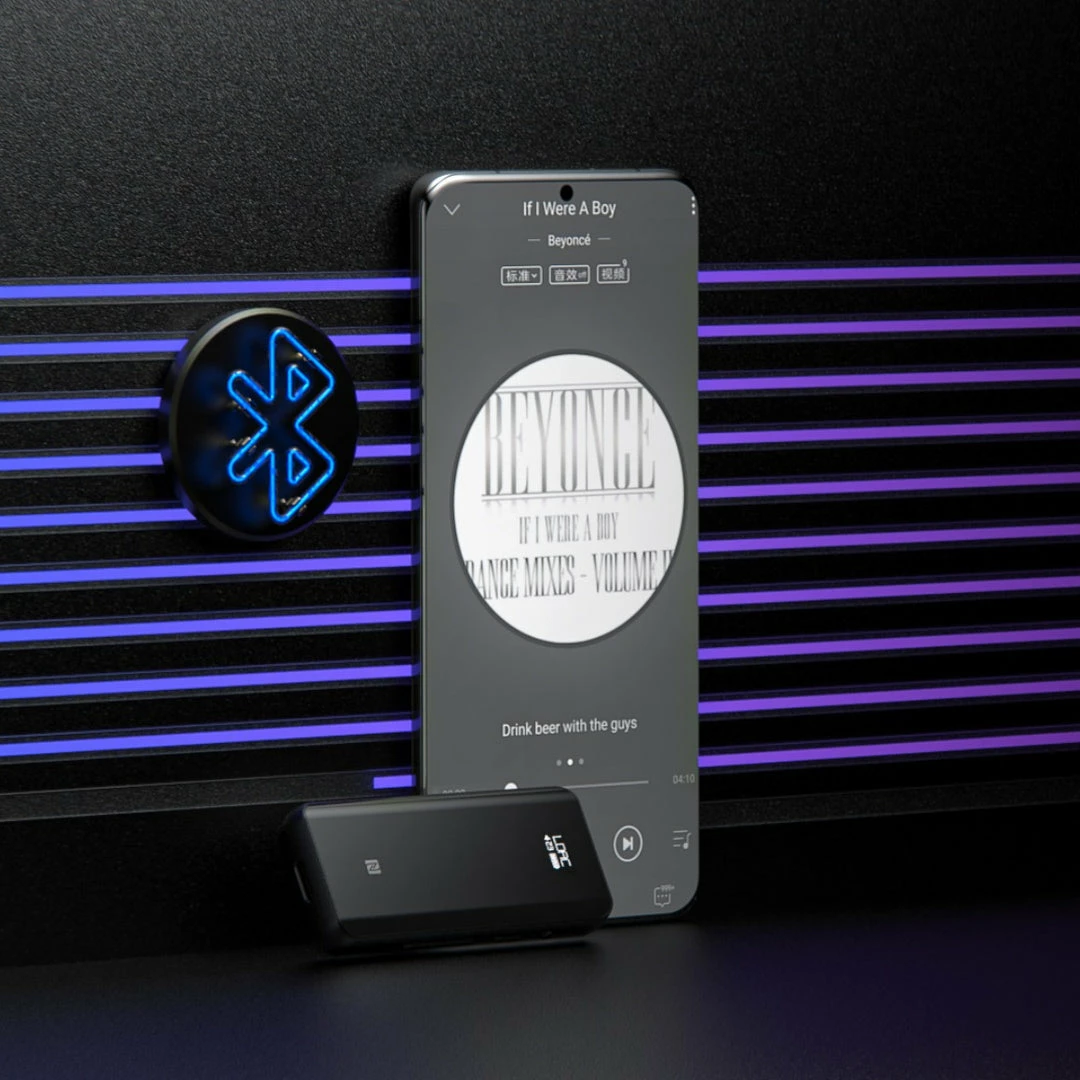

Make your Bluetooth device a part of the High-Res wireless set up with the FiiO BTR5 2021. With Bluetooth 5.0, the BTR5 extends support to high-quality Bluetooth codecs like AAC, SBC, AptX, AptX LL, AptX HD, and LDAC up to 96 kHz. So if you are on the lookout for high-end audiophile setups, the FiiO BTR5 is a perfect option for you to access excellent sound using your current device.
Headphone-Zone-FiiO-BTR5 2021

The FiiO BTR5 2021 has been upgraded to offer maximum audio playback capability. A new addition to the updated BTR5 2021 is support for MQA protocol with decoding and rendering capability. This allows for high-resolution, master-level sound quality even in reasonably sized files. FiiO BTR5 2021 supports up to 16X MQA decoding with applicable music apps to enjoy music in life-like quality.
Headphone-Zone-FiiO-BTR5 2021

The core of the FiiO BTR5 2021 has been renewed with two ESS SABRE ES9219C DAC chips with better decoding performance than the previous generation, a higher signal-to-noise ratio, and lower power consumption. To further solidify the audio architecture the BTR5 2021 has utilised an XMOS XUF208 control chip. With this chip, the BTR5 2021 is capable of asynchronous audio decoding and can decode up to 384kHz sampling rate and native DSD in USB2.0 and Asynchronous USB DAC supports 384kHz sampling rate and DSD256 natively.

The biggest perk of integrating and updating the Qualcomm CSRS8675 into the FiiO BTR5 2021 is low-power consumption and improved audio capabilities. This chip allows BTR5 2021 to support 24-bit and 120Mhz DSP audio processing for efficient Bluetooth decoding. You can use the BTR5 2021 for watching videos, playing games or listening to music and be assured of outstanding sound quality.

FiiO BTR5 2021 comes embedded with a precision FPGA clock and this is responsible for the transmission and reception of Bluetooth and USB digital audio signals as well as clock management. In the BTR5 2021, after the Bluetooth signal is processed through the FPGA, jitter is reduced and signal stability is improved, completely solving the problem of different clock rates between the different components. With the addition of a dedicated FPGA, the 45.1584/49.152MHz dual crystal oscillators can more accurately reproduce audio signals under various sampling rates during Bluetooth and USB decoding.

To offer greater power and detailed resolution, the FiiO BTR5 2021 features both 2.5mm balanced and 3.5mm single-ended outputs. In its balanced audio architecture, each channel is driven separately with its own DAC and amplifier, allowing the BTR5 2021 to bring a purer sound with unmatched finesse and balance. This truly balanced audio architecture extends pure balanced sound. Kindly note that when 3.5mm and 2.5mm outputs are inserted simultaneously only the 3.5mm port will provide sound to ensure that the BTR5 functions normally.

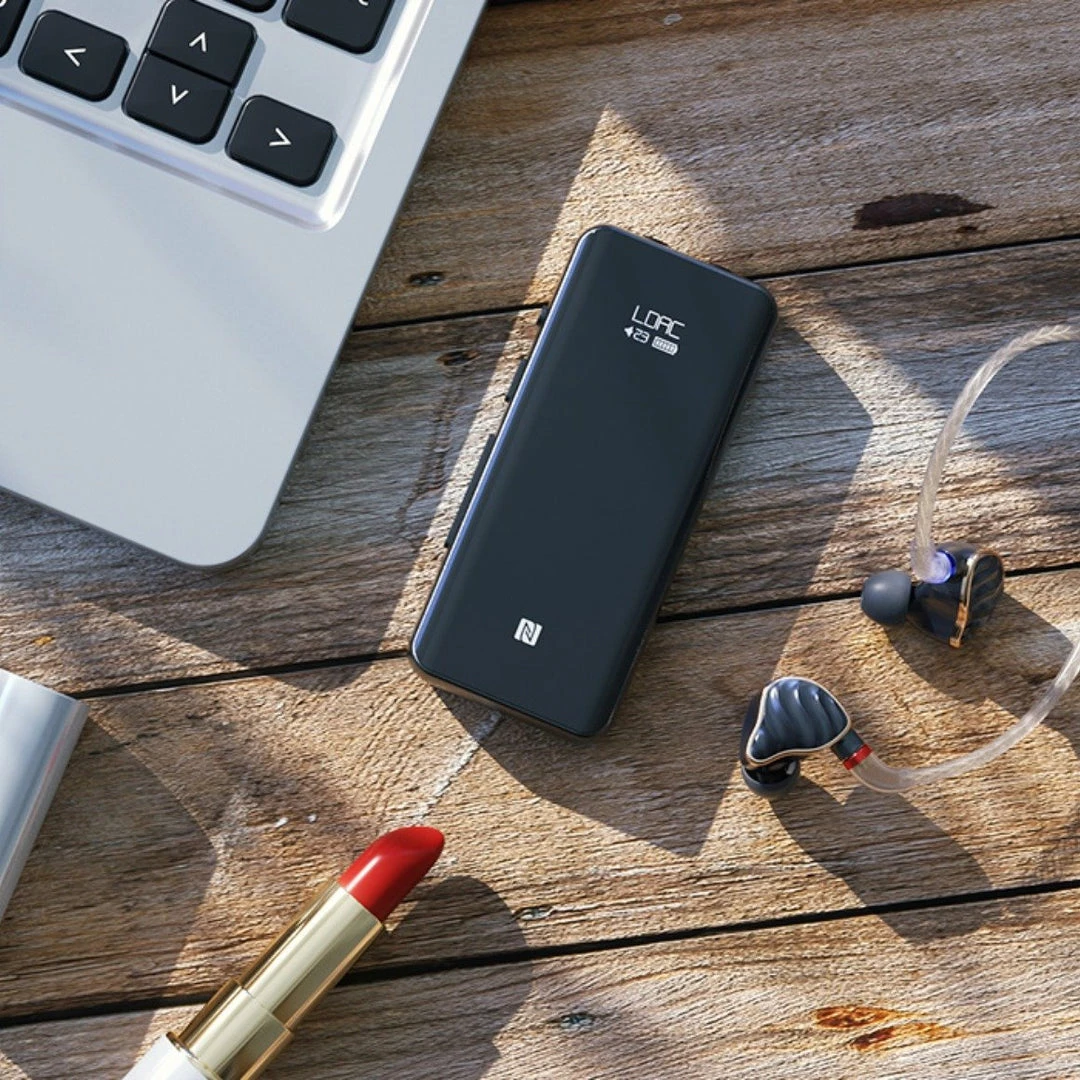

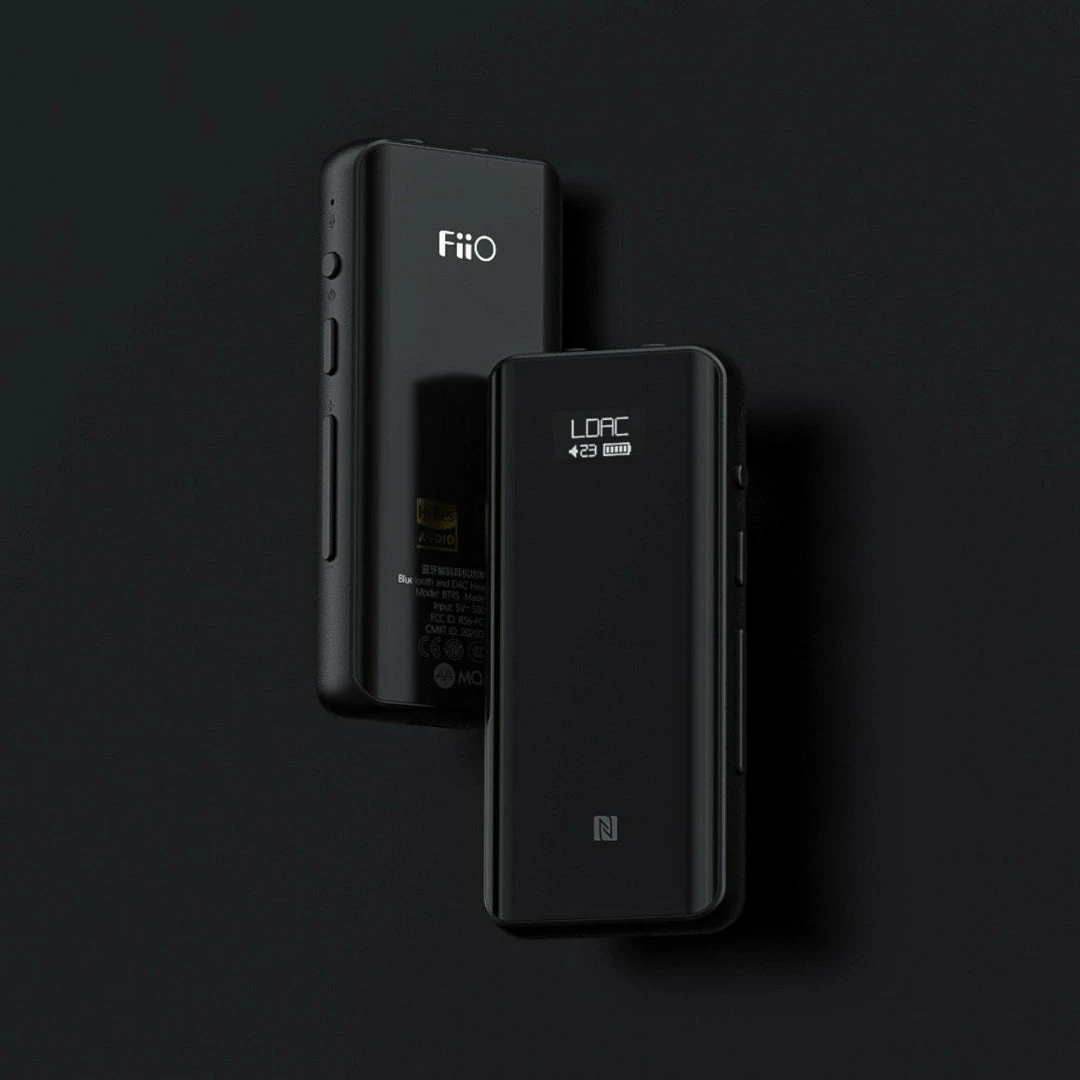

The crisp and clear 0.49 inch 64×32 resolution OLED screen is among the best features of the FiiO BTR5 2021. It is one screen that displays everything, including info about pairing, connection, call status, power status, encoding format and volume. It also allows you to view and modify the charging status, car mode, filters and EQ. Similar to some of the latest smartphones, the FiiO BTR5 2021 sports a durable aluminium body with curved glass and an oleophobic layer on the top which gives it a smooth and fingerprint-resistant body.

Fully charge the built-in 550mAh battery of your FiiO BTR5 2021 in just 1.5 hours. Once it’s charged completely you can use it for as long as 9 hours. With built-in dual omnidirectional high-sensitivity microphones, you can use a headset like the CTIA, which comes with an external microphone. When using either set of microphones, you can benefit from CVC 8.0 noise cancellation technology, which intelligently adjusts microphone gain and effectively suppresses background noise for crystal clear calls.

When you connect the BTR5 2021 to your headphones or phone, It remembers your preferred volume level, saving you effort and time. In iOS devices, you can even view the battery percentage right from the widget. Smart enough to detect the kind of headphone you are using, the FiiO BTR5 2021 adjusts its output once you insert the headphone. The moment you remove the headphone, the BTR5 is smart enough to pause the music and to go into low power consumption mode saving battery life. When a USB connection is detected with the BTR5 2021, it will automatically prompt you to turn on “USB Audio Adapter” mode, which turns off charging to the BTR5 2021 and allows you to use it as an audio dongle. You can connect to compatible devices using NFC one-touch connectivity. If you are using the BTR5 in the car mode, the BTR5 turns on and off depending on the car.

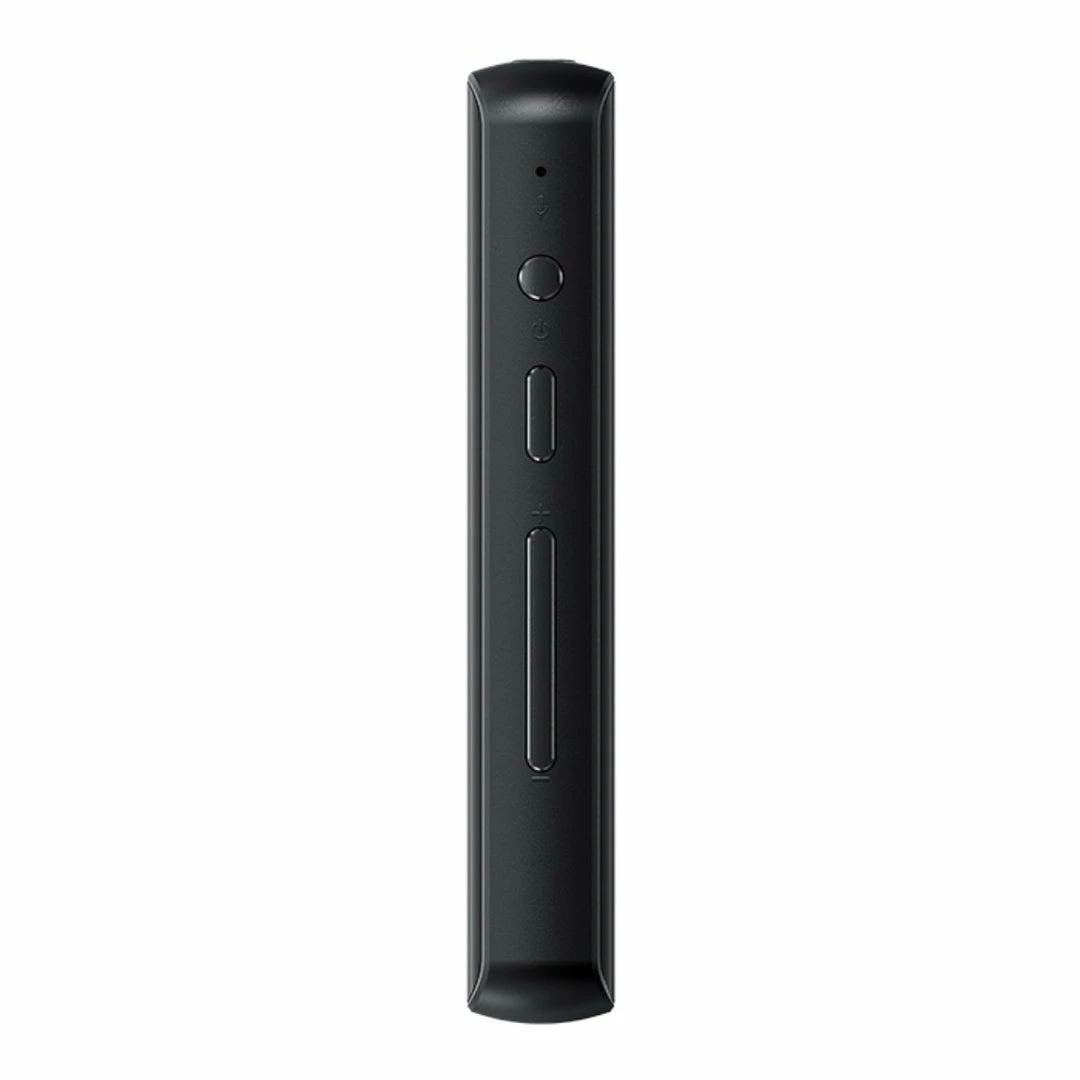

Pairing, play, pause, accept calls, hang up calls and open voice assistant using the dedicated buttons on the FiiO BTR5 2021. Once you’ve disconnected your paired devices via Bluetooth, you can press the Bluetooth reconnect button to reconnect with the device again. Just double-tap the dedicated button to activate your voice assistant. You can change how your BTR5 2021 sounds using the FiiO Music App and remotely control channel balance, select from 4 DAC lowpass filters or adjust the sound on a 10 band equaliser. Kindly note that the equaliser functionality does not work in the LDAC. In the box, you get a 360° of all-around protection case along with a detachable back clip and a USB Type-C to Type-C cable.

SPECS

SPECIFICATION

MODEL	BTR5 2021
WEIGHT	About 43.7g（incl. battery）
DIMENSIONS	About 72mm × 32mm × 11.1mm (exclusive of back clip)
AUDIO INPUT	Bluetooth connection (Bluetooth 5.0 supported)
SUPPORTED AUDIO FORMATS	AAC/SBC/aptX/aptX LL/aptX HD/LDAC
DRIVER-FREE MODE（SWITCH MODE)	Supported
IN-VEHICLE MODE	Supported
NFC	Supported
MIC FUNCTION	Support Bluetooth call, built-in omnidirectional microphone; support external microphone of CTIA cable
SE HEADPHONE OUTPUT	3.5 mm stereo port
USB PORT	Type C USB
BALANCED HEADPHONE OUTPUT	2.5mm port
RECOMMENDED HEADPHONE IMPEDANCE	16~100Ω（PO） 16~150Ω（BAL）
CHANNEL BALANCE	≤0.1dB
GAIN	Supported (High/Low)
VOLUME CONTROL	Side buttons
STATUS INDICATION	Display indicates the Bluetooth code, charging, battery, volume, sampling rate, menu
APP INTERCONNECTION	Supports setting through App
CHARGING TIME	≤1.5 h (DC 5V 500mA)
POWER INPUT	Recommend DC 5V 500mA
BATTERY CAPACITY	550mAh
OUTPUT POWER	PO about 80mW（32Ω loaded） PO about 90mW（16Ω loaded） BAL about 240mW（32Ω loaded） BAL about 240mW（16Ω loaded）
FREQUENCY RESPONSE	20Hz～20kHz (aptX connection） 20Hz～40kHz (LDAC connection）
THD+N	PO＜0.003%(LDAC 1kHz 32Ω dbA) BAL＜0.002%(LDAC 1kHz 32Ω dbA)
OUTPUT IMPEDANCE	PO≤1.0Ω（32Ω loaded） BAL≤2.0Ω（32Ω loaded）
NOISE FLOOR	PO≤2uV（32Ω dbA） BAL≤2.2uV（32Ω dbA）
AMPLITUDE	PO：1.6V（32Ω /THD+N＜1%） PO: 1.8V (no loaded) BAL: 2.8V（32Ω /THD+N＜1%） BAL: 3.6V (no loaded)
SNR	PO≥118dB (32Ω dbA) BAL≥122dB(32Ω dbA)
CROSSTALK	PO≥ 79dB（1kHz 32Ω loaded） PO≥ 95dB（1kHz no loaded） BAL≥ 118dB（1kHz 32Ω loaded） BAL≥119dB（1kHz no loaded)
SAMPLING RATE SUPPORTED UPTO	384kHz/32bit（USB DAC）
DSD SUPPORT (USB IN)	DSD64/128/256
CHIPS USED	DAC: ES9219C * 2 USB: XMOS XUF208 Bluetooth： CSR8675

IN THE BOX

STANDARD EDITION	1. FiiO BTR5 2021
	2. Type-C to Type-C Cable
	3. Back Clip
	4. Quick Start Guide
	5. Warranty Card
APPLE EDITION	1. FiiO BTR5 2021
	2. Type-C to Type-C Cable
	3. Type-C to Lightning Cable
	4. Back Clip
	5. Quick Start Guide
	6. Warranty Card

FAQs

: FiiO offers a one year warranty. If you need to claim warranty, you can contact us. We are quite friendly people, just sayin. You can read more about warranty here.
: The FiiO BTR5 2021 is a Bluetooth amplifier that comes with dual ESS Sabre ES9218P DAC chip for better sound and more power.

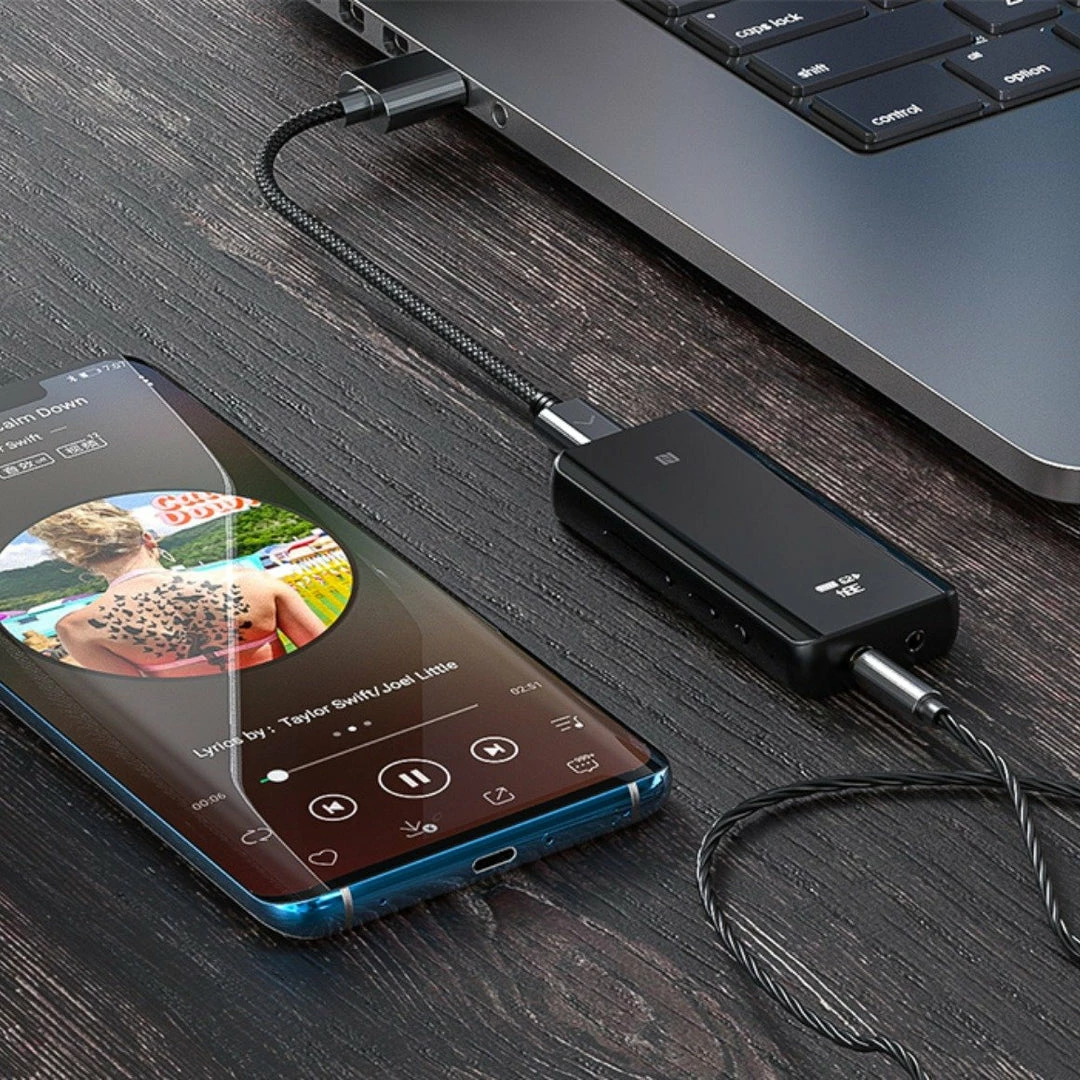

: Yes, you can connect the FiiO BTR5 2021 to your computer to use it as a DAC/AMP, acting as a external sound card.
: The BTR5 2021 has a high-performance lithium polymer battery with 550mAh battery capacity and about 9 hours of battery life (tested under ACC codec and low gain). It takes only about 1.5 hours for a full charge (tested under 3.5mm output and AAC codec).
: 1. The BTR5 2021 adopts a brand new ES9219C DAC, which has stronger decoding ability and better performance which provides high SNR while ensuring low power consumption.
2. Added MQA support, which can unfold the MQA tracks on the mobile phone. When working with music applications supporting MQA, it can achieve 16x MQA unfolding.
3. The BTR5 2021 supports switching to the “USB Audio Adapter mode” (USB dongle) by just one press. When a USB connection is detected the BTR5 2021, it will automatically prompt you to turn on “USB Audio Adapter” mode, which turns off charging to the BTR5 2021 and allows you to use it as an audio dongle for your phone or other devices. Please press any button in 15s when the prompt menu jumps out. If there is no operation within 15 seconds, the charging function will stay on. (The pop-up menu can also be closed through the FiiO Control App.)
4. A short skin-friendly silicone Type-C to Type-C cable is added to the accessory list.
5. The package box is newly designed in a science fiction style, and the back panel adds an MQA logo.
6. The software filters have been reduced from 6 to 2 (since the DAC has added MQA support, we canceled the internal filter).
: 1. At present, most mobile phones on the market can support the FiiO music App, but the USB audio standard of various phone brands is not uniform, so we cannot guarantee full compatibility.
2. The BTR5 2021 supports a switch to “USB Audio Adapter Mode” by just one press. When a USB connection is detected the BTR5 2021, it will automatically prompt you to turn on “USB Audio Adapter” mode. At this time, just press any button so that it will turn off the charging function and enter the “USB Audio Adapter Mode”.
: After turning on the car mode, you can connect the BTR5 2021 to the on-board USB port, and the BTR5 2021 will power on automatically when the vehicle engine starts, and power off when the engine stops.
: Hold the Volume’+’ and Volume’-‘ buttons at the same time for about 5s when the BTR5 2021 is powered on.
: Ensure the mobile phone supports NFC. Turn on the BTR5 2021 and unlock the phone. Put the NFC area of the BTR5 2021 close to that of the phone (usually there will be a dialogue popping up or a prompt tone).
NFC is a near field communication technology. The NFC sensing area of the mobile phone and the BTR5 2021 must be closer enough to each other to be paired. In addition, the NFC power of different mobile phones is different (mobile phones with a metal shell have relatively low NFC sensitivity). In addition, a mobile phone wearing a phone case also has low NFC sensitivity, so it is suggested to remove the case and try again.
: Currently, any Bluetooth device will have a delay. But there is no obvious influence when listening to music. The time of delay is different for different Bluetooth codecs. The BTR5 2021 supports aptX LL (less than 40ms delay). For other Bluetooth codecs, the delay is about 100ms.
: Yes. When it’s connected successfully yet without playback and operation, it will enter standby mode (low power consumption). When it’s not connected, it will turn off automatically after 2 minutes if there is no operation. (the auto-timer can be set on the App). The battery life is about 300 hours under standby mode.
: The BTR5 2021’s middle frame is made of aluminum alloy, with a 6H hardness 2.5D tempered glass on both the front and back panel (scratch resistance is the same as that of iPhone’s), which is not easy to scratch in use. But please don’t put it together with sharp metal objects like keys. Besides, the back clip is made of ABS (Acrylonitrile Butadiene Styrene).
: -BTR5 2021 Standard Edition: Type-C to Type-C short cable, back clip, user manual, warranty card, Bluetooth instructions.
-BTR5 2021 Apple Edition: except for those included in the standard edition, there is an extra Type-C to Lightning cable.
: If the BTR5 2021 is frozen, please try to hold the Power button for at least 10 seconds to reset it.
: No. Ever since the HWA was launched, its sound quality has been recognized by many users in China. The FiiO BTR3, as the earliest product on the market that perfectly supports HWA, was very popular. However, it has encountered some problems that we could not solve temporarily. For example:
1. HWA, as the latest technology, has more poor connection reliability than LDAC and aptX.
2. There were few devices that support HWA, especially consumers in foreign countries. Most of them have no idea about the HWA.
3. The internal ROM capacity of the CSR8675 is limited, especially after an upgrade to Bluetooth 5.0. The BLE function (App control) will take up more space. While coupled with the HWA algorithm, it will have more limited ROM capacity, and will restrict us to make improvements and expansion for the product functions. This is the main reason.
4. As the owner of HWA, Huawei also stated that HWA will face a large upgrade, and the upgraded HWA will no longer be compatible with the previous version. So Huawei themselves also canceled HWA support on their latest system.
: Please refer to the Bluetooth instruction card inside the package. The BTR5 2021 supports high-rate and high-quality signal transmission, but the transmission distance will be shorter when transmitting high-quality signals. We have also compared similar devices of other brands. It turned out that the BTR5 2021 was excellent.
: The BTR5 2021 supports headphones of CTIA standard for remote control and microphone. But OMTP headphones can only listen to music.
