Matrix Audio - Element P Hi-Res Audio Players

Budget 👍 Matrix Audio – Element P Hi-Res Audio Players ⭐

Original price was: $413.00.Current price is: $93.99.

SKU: matrix-audio-4806959562815 Category: Hi-Res Audio Players Tags: CI_1 Year, CI_iOS, Cl_ESS SABRE DAC Chip, K_Audiophiles, Nocod, Nonreturnable, Noreturn, Pre-Order

Safe and Secure Payments, Always
The best quality products, always.
Unbeatable Quality Guaranteed
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Chi-Fi
Excellence

1 Year of
Warranty

Ideal for
Audiophiles

Ideal for Casual
Music Listening

Ideal for
Indoor Use

Metal
Build

Connect With
USB Cable

ESS Sabre ES9028PRO
DAC Chip

Works with
Android & iOS

Remote
Controls

DESCRIPTION

The Matrix Audio element P is one device that’s meant to fulfil all your audio needs. It can work as a source device, DAC as well as a speaker amplifier. It’s designed especially for passive speaker amplifiers. All you need to do is configure a NAS storage device or connect it to a USB drive to play music up to 768kHz PCM and 22.4MHz DSD.
element X

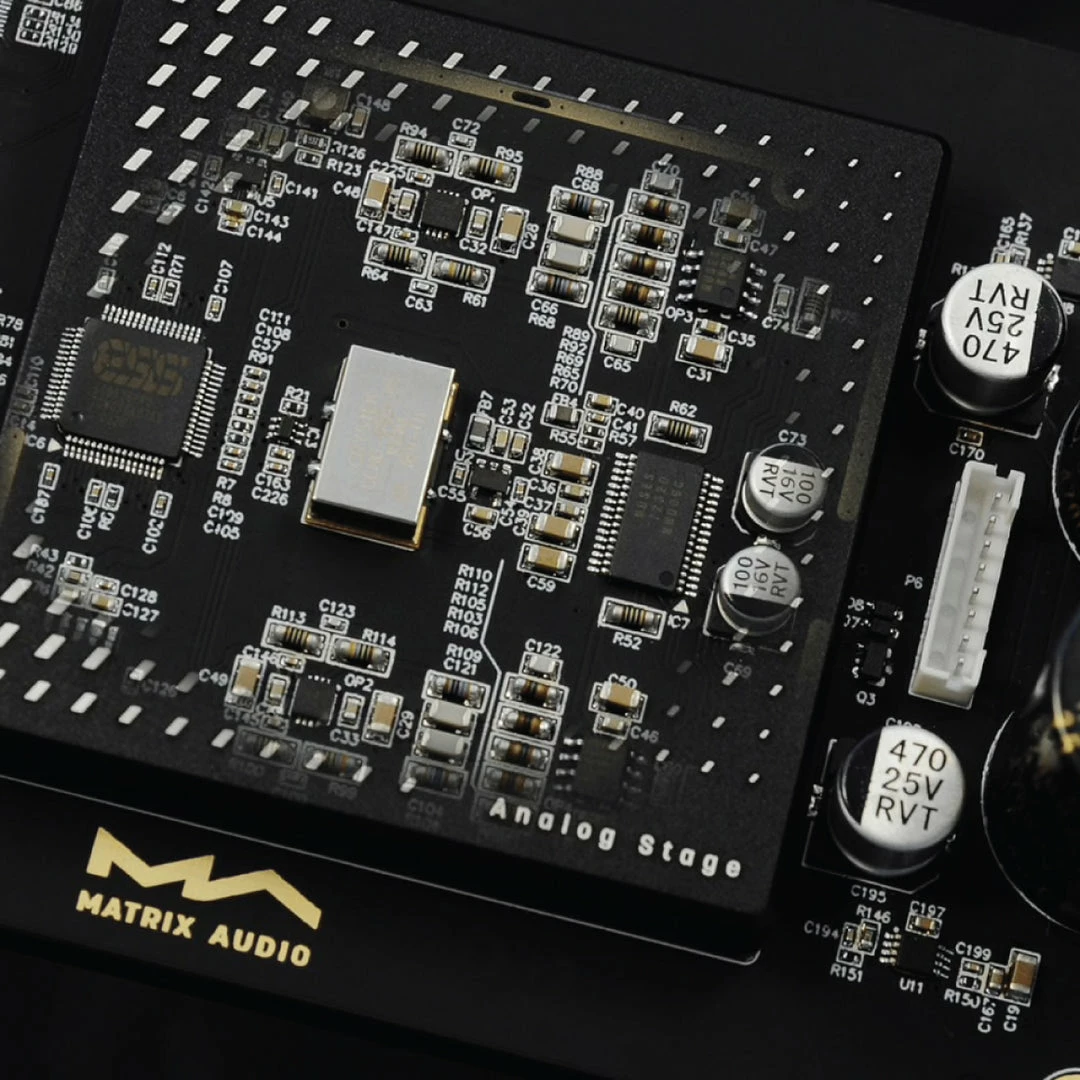

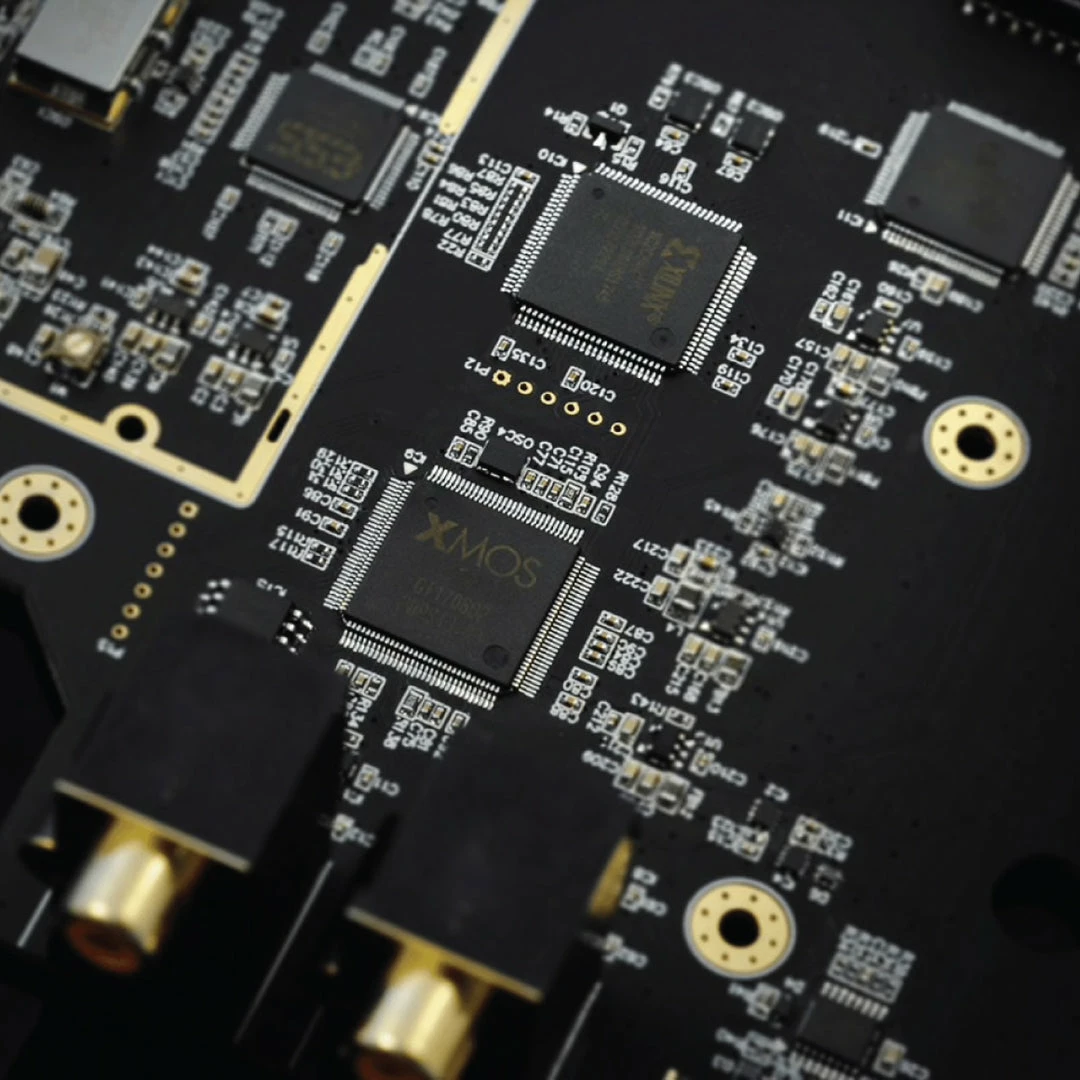

The XMOS XU216 USB Interface feeds the audio signal to the ESS ES9028PRO DAC and Crystek CCHD-950 ultra-low phase noise femtosecond clock for high-res jitter-free sound. To keep the audio quality from degrading, a MUSES72320 resistor for the analogue volume control is used. The element P supports MQA technology to decode Master Quality Authenticated files and playback the sound of the original master recording.

Stream audio wirelessly from any device including your smartphone with the element P. With the help of the MA player, enjoy music using DLNA or AirPlay. It’s also Roon ready. What’s more? You can control the music wherever you are with the MA Remote app (available for iPhone, iPad and Android phones). It is integrated with Tidal and Qobuz.

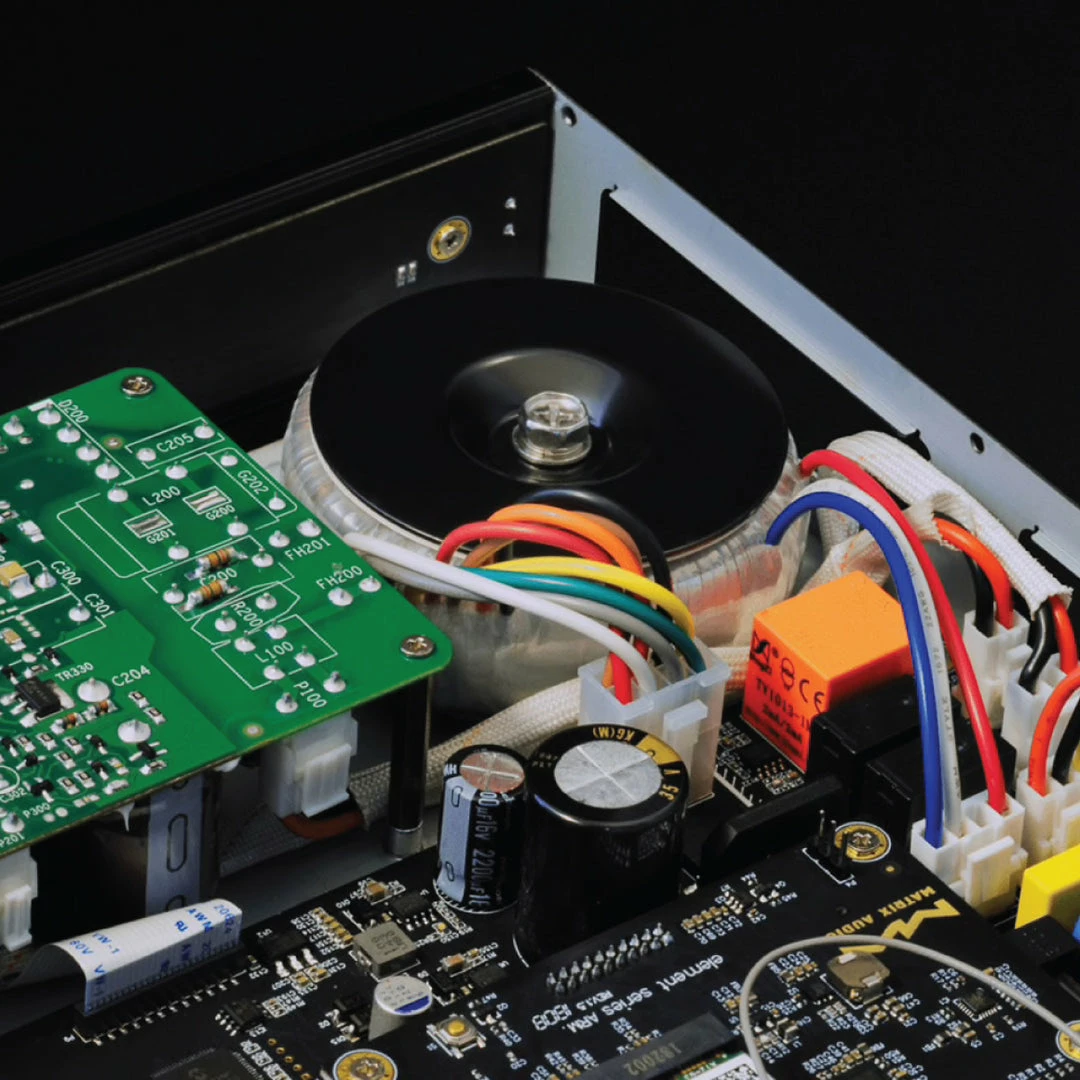

The element P is the first Streamer from Matrix Audio that features a full-featured audio source. The Linux-based audio system uses a Freescale i.MX6 series dual-core ARM processor. The core power amplifier is the Danish ICEpower 250ASX2 class-D amplifier module that offers an output of 230 Watts per channel @ 4Ω. To prevent the superimposed noise in the module’s power supply from entering the pre-amp section, a front-end linear power supply is used. This consists of a multi-channel linear LDO with Nichicon audio-grade capacitors and a customised Noratel toroidal transformer.

The element P features a double-shell structure. The outer shell is made of 4mm CNC anodized aluminium while the inner shell is fitted with stamp galvanized steel with multi-strip reinforcing ribs. Both metals are effective in removing the fixed resonant frequency of each shell. This reduces the negative impact that case resonance has on audio quality. It also ensures excellent durability. The simple visual lines on the case are meant to add to its sleek look.

SPECS

HARDWARE PLATFORM

CPU	NXP i.MX 6Quad 4x Cortex-A9 @1.2 GHz
D/A CHIP	ES9028PRO
CLOCK SOURCE	Crystek CCHD-950

DIGITAL INPUT

COAXIAL & OPTICAL	PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD 2.8MHz (DoP)
IIS LVDS	PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP) DSD 2.8MHz, 5.6 MHz, 11.2 MHz, 22.4MHz, 45MHz (Native)
USB AUDIO	PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)

SPEAKER OUTPUT

SNR	>-121dB
THD+N	<0.008%@1W (8Ω, 1k)
FREQUENCY RESPONSE	20Hz-20kHz ±0.25 -3dB@85kHz
OUTPUT IMPEDANCE	<25mΩ
OUTPUT POWER	230W@4Ω, 110W@8Ω (1%THD+N)

NETWORK

LAN	10BASE-T/100BASE-TX
WLAN	2.4GHz/5GHz, IEEE 802.11 a/b/g/n standard

MA PLAYER

FORMAT SUPPORTED	MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF
PCM SAMPLING RATE	PCM 16/24/32Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
DSD SAMPLING RATE	DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz
ROON READY	PCM 16-24Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD 2.8MHz, 5.6MHz, 11.2MHz
AIRPLAY	PCM 16Bit 44.1kHz

USB STORAGE DEVICE

COMPATIBLE

element p can use the devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices or memory cards.

POWER

POWER VOLTAGE	230V position is fit for AC220V-240V 50/60Hz 115V position is fit for AC100V-120V 50/60Hz
STAND-BY POWER CONSUMPTION	< 6W
SLEEP POWER CONSUMPTION	< 10W
NO PLAY CONSUMPTION	< 22W

OTHERS

DIMENSIONS	340×281×60mm (L×W×H, including protruding parts)
WEIGHT	4.7Kg

IN THE BOX

BOX CONTENTS	1. Matrix Audio element P
	2. RM3 remote control
	3. Power cable
	4. USB cable
	5. WiFi antenna x2

DOWNLOADS

Manual

As the most popular streaming service in the world, Spotify did not get enough attention from audiophiles in terms of accessibility on high-end devices. This changes now as Spotify announced in early 2021 that they will provide lossless audio streaming in the coming future. Following this announcement, Matrix announced their first Spotify Connect enabled product and announced the new firmware for Matrix element devices are available for download. Users can enjoy Spotify music through Matrix element devices now. The implementation of Spotify to the Matrix device is different from the TIDAL and Qobuz integration. Customers no longer need to log in to their Spotify account in the app by Matrix, rather open the Spotify app, find Matrix products in the “Device Picker” of Spotify, and select the device, allowing music to be played on your Matrix’s audio device.

Applicable models: element X, element P, element M and element i

Install Spotify on your phone, tablet or computer, log in to your Spotify account, find the music, in the Playing interface, tap the icon to open Device Picker, select the Matrix device you would like to play the music. Please note, when you enter the Device Picker interface on an iPhone or iPad for the first time, your app will ask for permission to find and connect to devices on your network. Please allow it. After the music is played on your element device, the screen of the device will display as below. With the latest version of the MA Remote app, you would see the track in the Playing interface, you can play/pause, next/previous, enable/disable repeat and shuffle through the MA Remote app.

FAQs

: The warranty period on all Matrix Audio products is 1 year from the date of purchase. In order to claim warranty, please visit our Matrix Audio warranty page.
: The Matrix Audio – element P features ESS Sabre ES9028PRO DAC Chip that delivers best in class audiophile grade sound quality.
: The Matrix Audio – element P has ‘Virtual Remote Control’ feature, you can proceed all the setting operations of the unit through the app.
: Yes, the Matrix Audio – element P enables you to play music from your smartphone or other mobile devices via AirPlay & DLNA for convenient wireless streaming.
: It supports MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF.

Warranty & MEDIA REVIEWS

Budget 👍 Matrix Audio - Element P Hi-Res Audio Players ⭐ -Headphone Zone Shop Warranty Final 1 Year

Don’t sweat it, this Matrix Audio element P comes with a 1 year warranty from Matrix Audio that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer’s warranty.

Read more about Matrix Audio’s warranty in India.
