Chi-Fi
Excellence
V-Shaped Sound
Signature
1 Year of
Warranty
Ideal for
Commuting
Ideal for
Audiophiles
Best Suited for
Portable Use
6 Knowles BA
Drivers
Replaceable MMCX
Cables
Works with
Android & iOS
Tangle-Free
Cables
Super Lightweight
Design

PRAVEEN KAMATH
Headphone Guru
About PRAVEEN KAMATH
Praveen, our Headphone Zone is an audio connoisseur and staunch Meze fanboy. He loves the RAI Penta and the Empyrean, equally. When not writing about, thinking about or listening to music: He’s an avid beerologist too and staunchly believes that the combination of both beats every music setup out there! You’ll often find him listening to The Weeknd, The Score and The Script.
DESCRIPTION
A RARE 6 KNOWLES BA DRIVER SETUP FOR A BREATHTAKING SONIC EXPERIENCE
Engineered with 6 Knowles BA drivers per ear, along with a fine-tuned 4-way crossover and a low-frequency ultra-long sound tube, the FiiO FA9 takes care of the entire audible frequency range with excellence. There is a dedicated SWFK-31376 driver for high and ultra-high frequencies that unite extreme resolution and rich sound. The mid frequencies are seamlessly managed by the EJ-33877 custom driver which is jointly developed by FiiO and Knowles for lush vocals. When it comes to lower frequencies, the HODVTEC-31618 driver along with 2 woofers does a splendid job by producing dynamic and powerful bass. With such a powerful setup at play, you are all set to experience sound like never before.


FIRST-EVER COLLABORATION BETWEEN FIIO AND KNOWLES FOR A CUSTOM BA DRIVER
This is the first time FiiO is utilising EJ balanced armature drivers from Knowles. Both FiiO and Knowles worked collectively to come up with a custom EJ-33877 driver specifically for the FA9. This custom driver delivers mid frequencies with lifelike vocals and instruments.


MASTERFULLY TUNED ACOUSTIC FILTER FOR SMOOTH FREQUENCY RESPONSE AND TEXTURED BASS
To produce the purest sound and seamless integration of multiple drivers, FiiO employed a specially-designed, 80.6mm long sound tube in the FA9. This tube functions as a low-pass filter that keeps unnecessary extra mids and highs away from the driver resulting in stable frequency response. Moreover, the tube enhances the mids to sound more smooth and clean while also improving the texture of the bass.

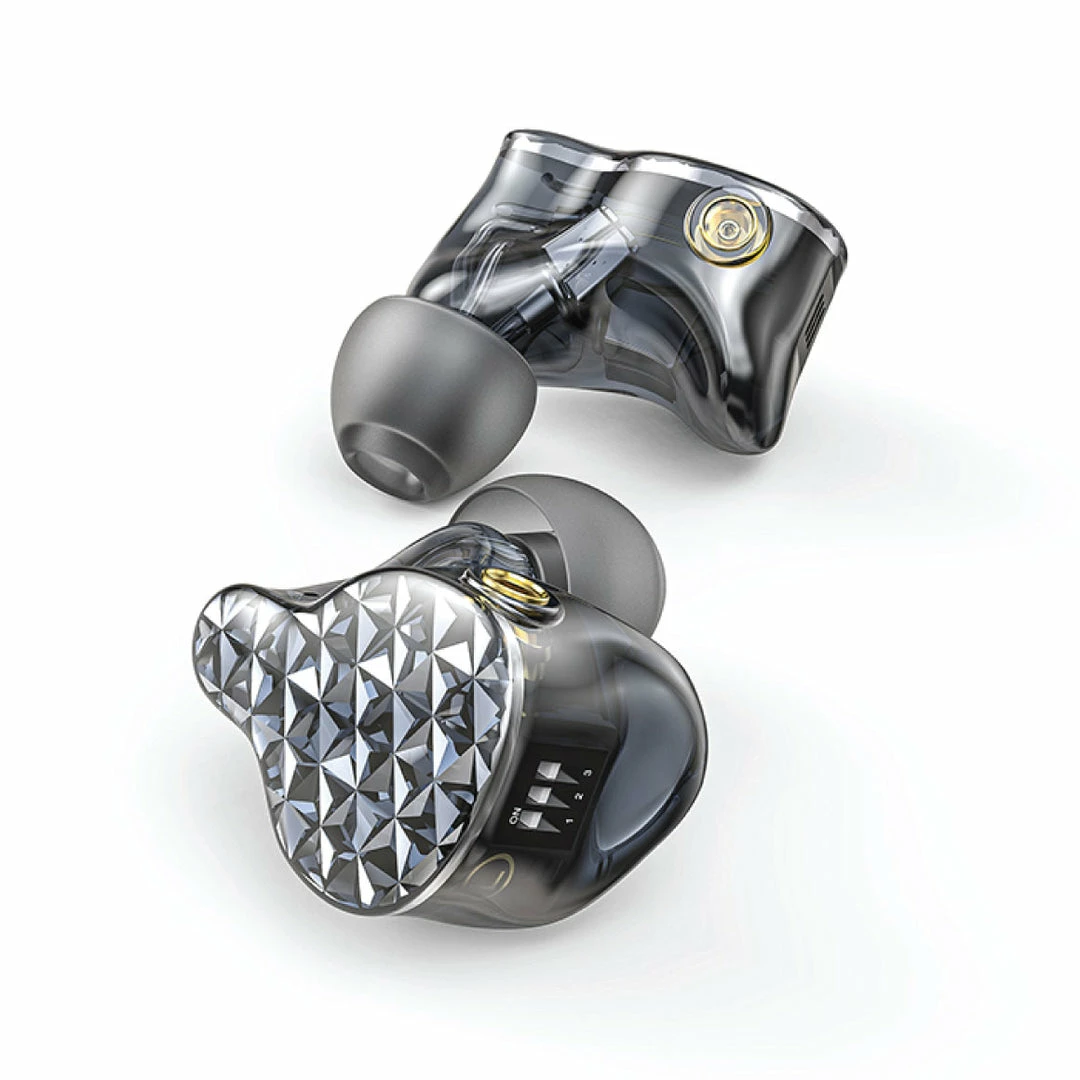

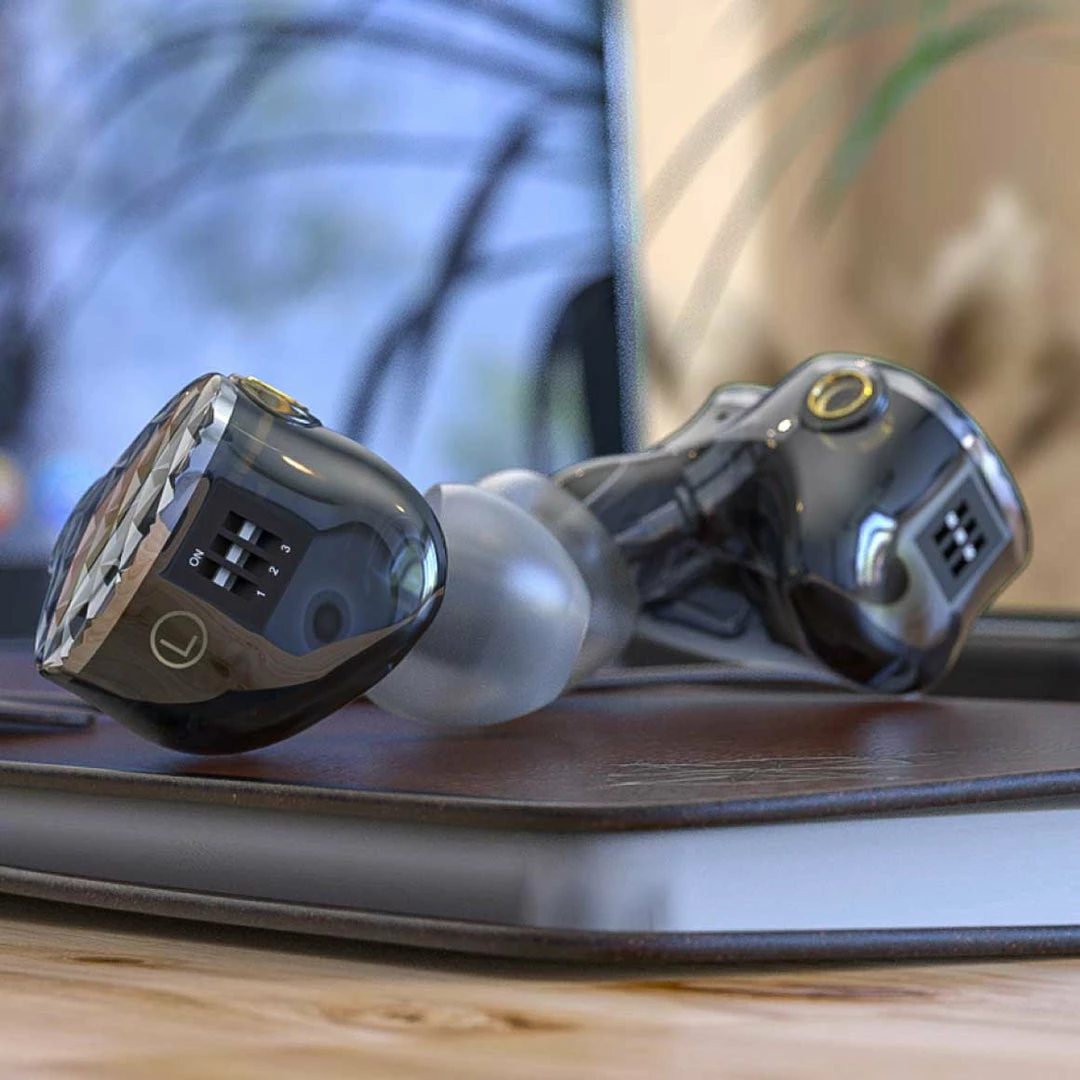

3 SOUND ADJUSTMENT SWITCHES THAT LET YOU TAILOR THE SOUND, JUST THE WAY YOU WANT IT
Explore the freedom of tuning the sound as per your preference with the FiiO FA9. It comes with an electronic crossover technology consisting of 3 sound adjustment switches. Adjust the impedance, bass, mids and treble for a personalised music listening experience. S1 Switch: Turn it on to lower impedance and improve sensitivity. Turn it off to increase impedance and lower audible noise for a natural sound. S2 Switch: Turn it on to boost the treble for rocking highs. Turn it off to go back to the normal treble for a balanced response. S3 Switch: Turn it on to lower bass and improve mids to focus on human voices and instruments. Turn it off to enhance bass and lower mids for punchy bass response.

4-WAY CROSSOVER FROM SEAMLESS DRIVER PERFORMANCE AND TO MAKE YOU LOVE YOUR MUSIC
When there are multiple drivers at work, seamless performance becomes a challenge. To address this the FiiO FA9 has a four-way crossover design. This design perfectly binds the drivers in perfect harmony for coherent low, middle, high, and ultra-high frequencies. The powerful bass, precise yet rich vocals, and detailed yet enjoyable treble on the FA9 will make you appreciate details and intricacies of your music that you might’ve been missing all this while.

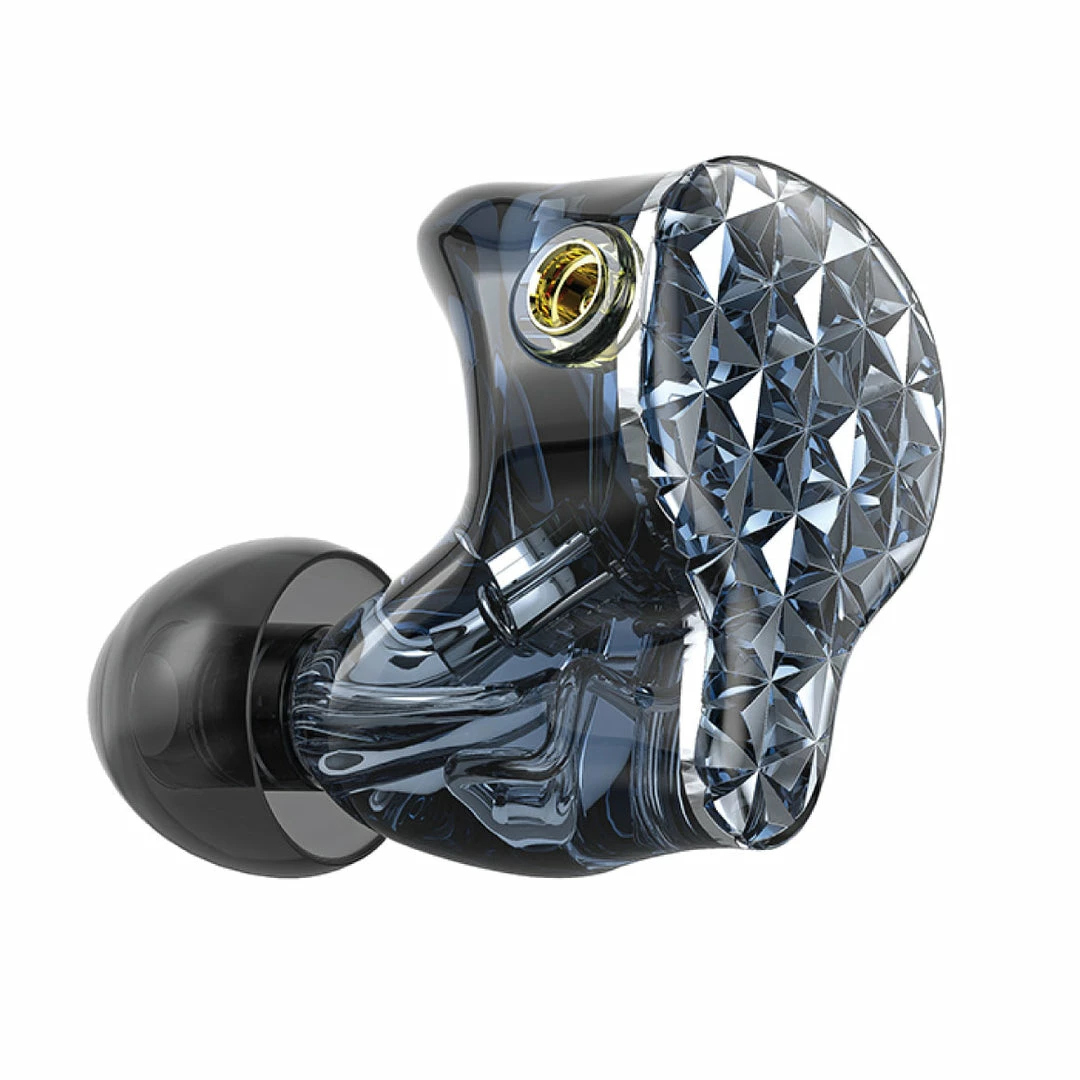

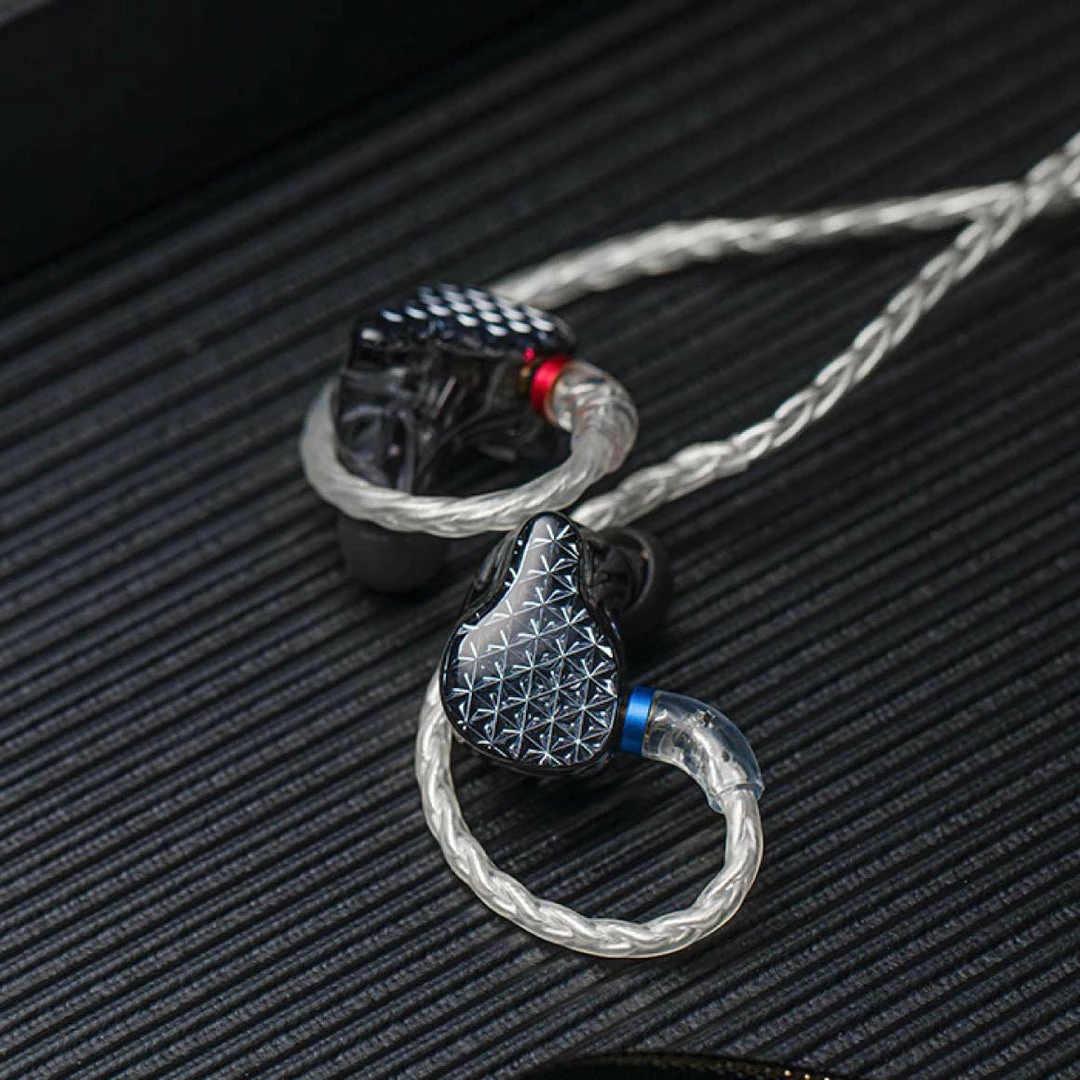

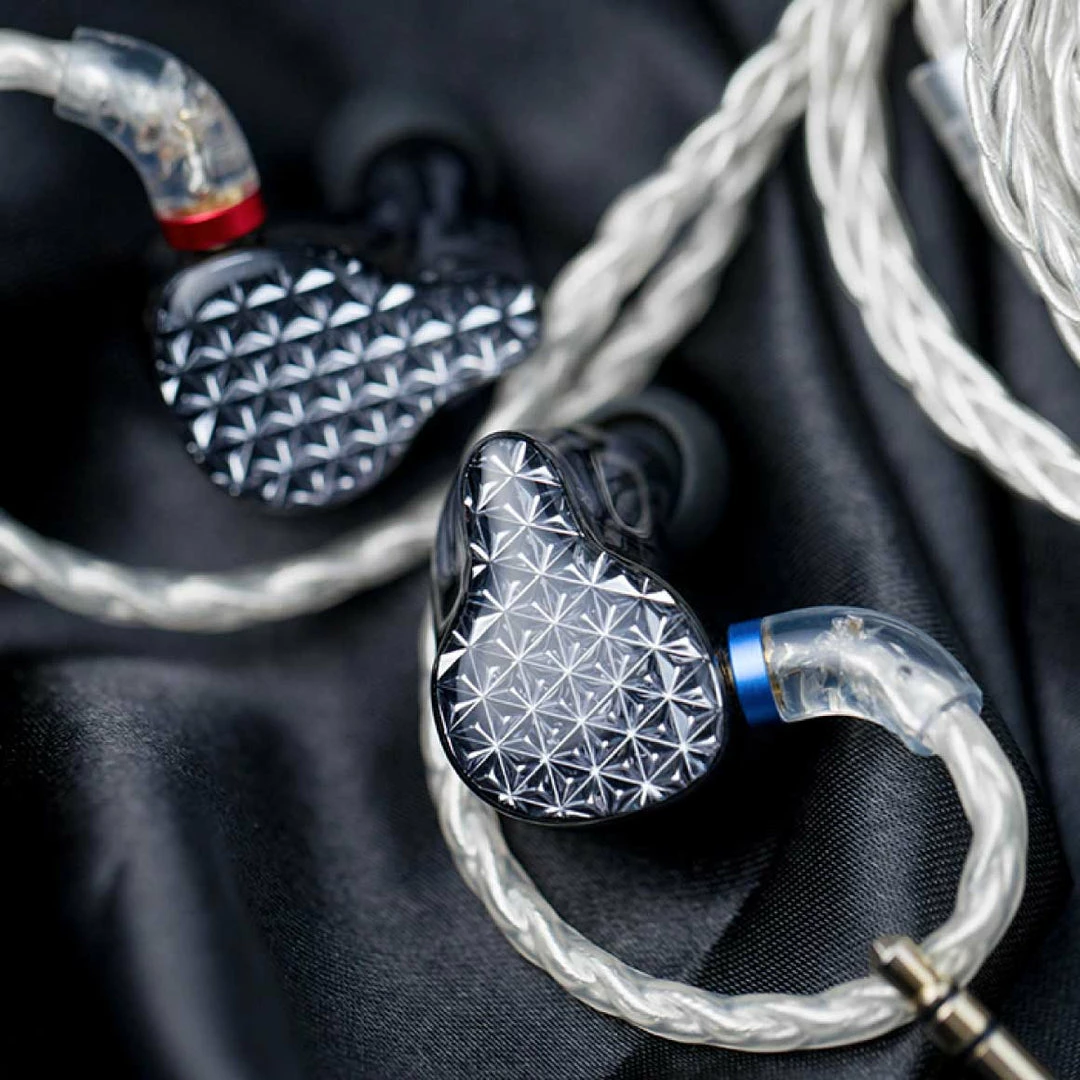

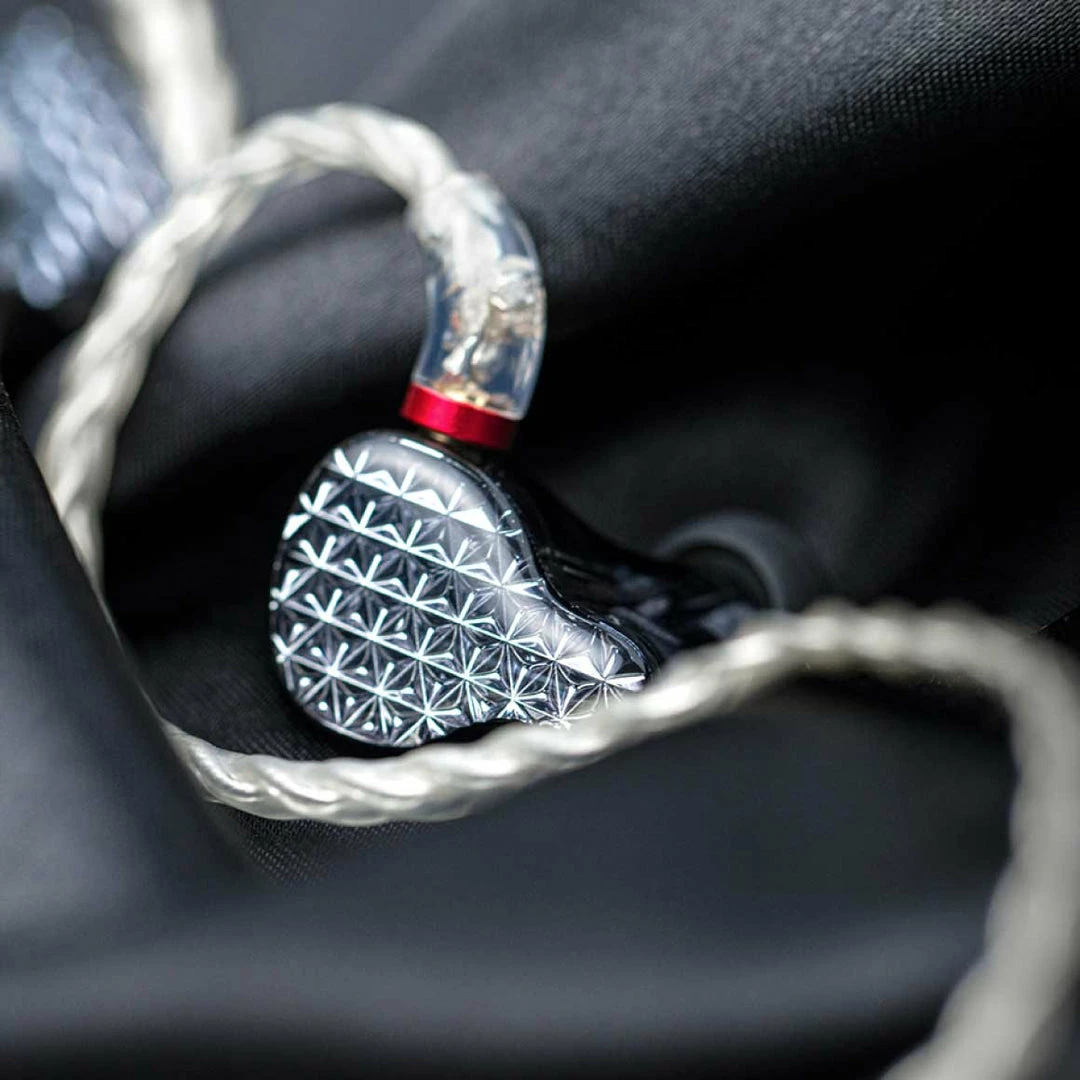

DESIGNED WITH 4TH GEN DLP 3D PRINTING & DIAMOND-CUT FACEPLATE FOR SHEER ELEGANCE
The use of DLP 3D printing technology gives the shell of the FA9 a distinct look that stands apart from other 3D printed headphones. The highly advanced 4th gen DLP 3D printing technology employed in designing the shell of the FA9 gives it a detailed and robust design that is also optimised for audio. The beautiful looks are a result of an all-new diamond-cut faceplate that blends perfectly with the translucent-black resin shell. The resin used here is not regular resin but an EU IIA certified, high transparency resin from German known for its skin-friendly texture, comfort and resistance to discolouration. Take a look at it from any angle and the FA9 will amaze you with its stunning gorgeousness.

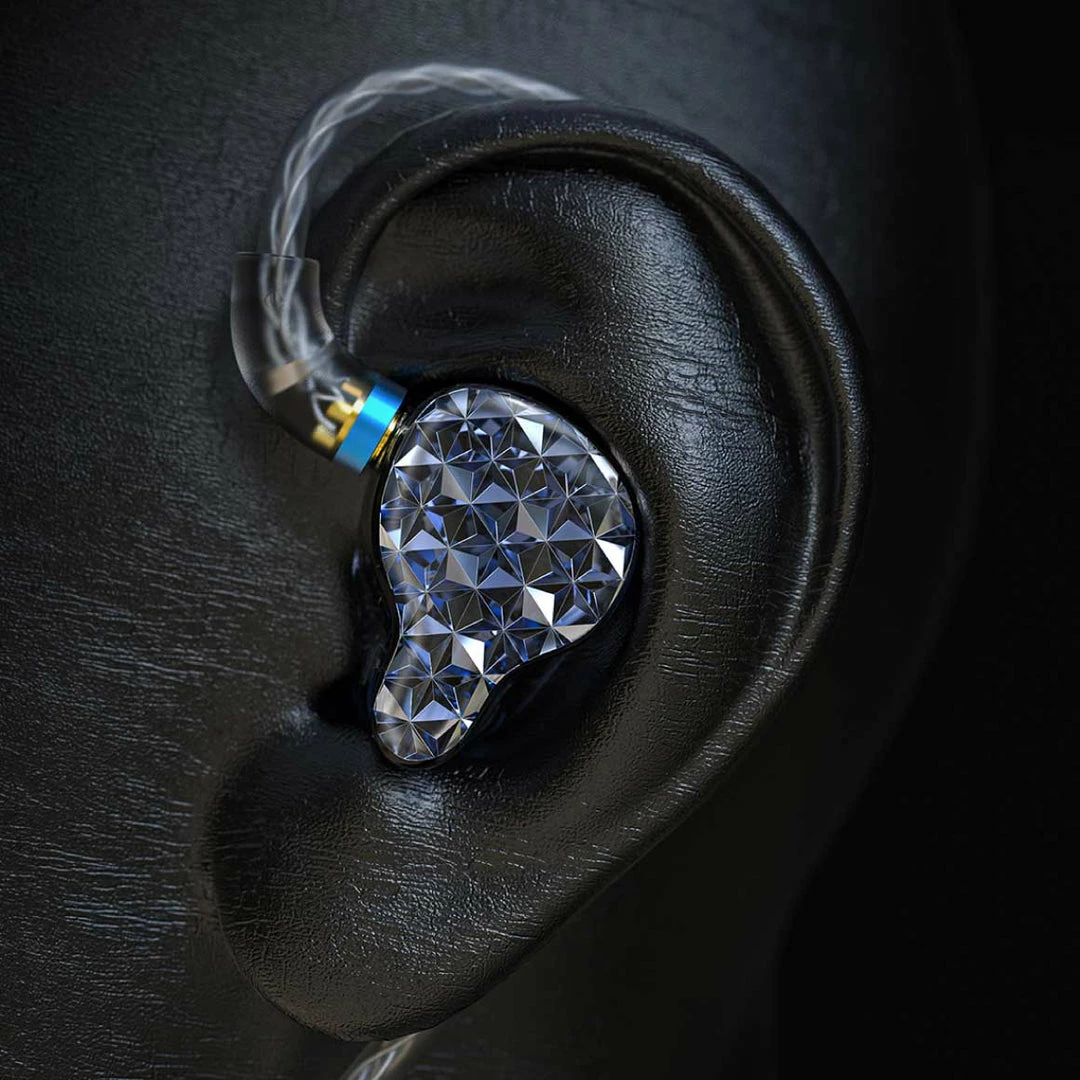

FOR ABSOLUTE WEARING COMFORT THAT EVERY MUSIC LISTENER DESERVES
Data of thousands of human ears were scanned to derive the perfect design of the FiiO FA9. The small, comfortable design of the FA9 offers pleasant wearing and listening experience. To add to this experience the FA9 is made with optimised 3D printing technology and comes with skin-friendly resin materials while each unit weighs up to 6.2 gram for lightweight comfort.

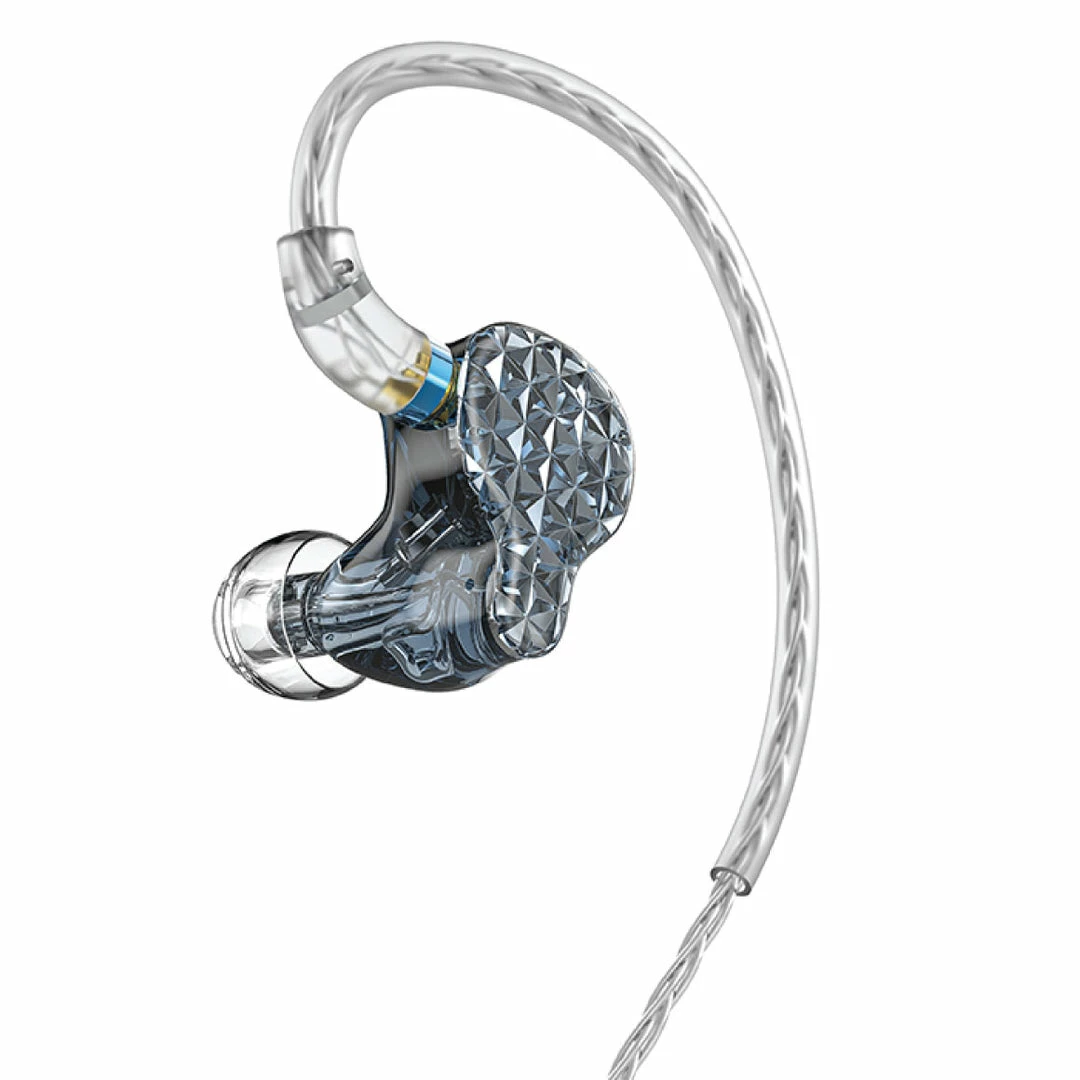

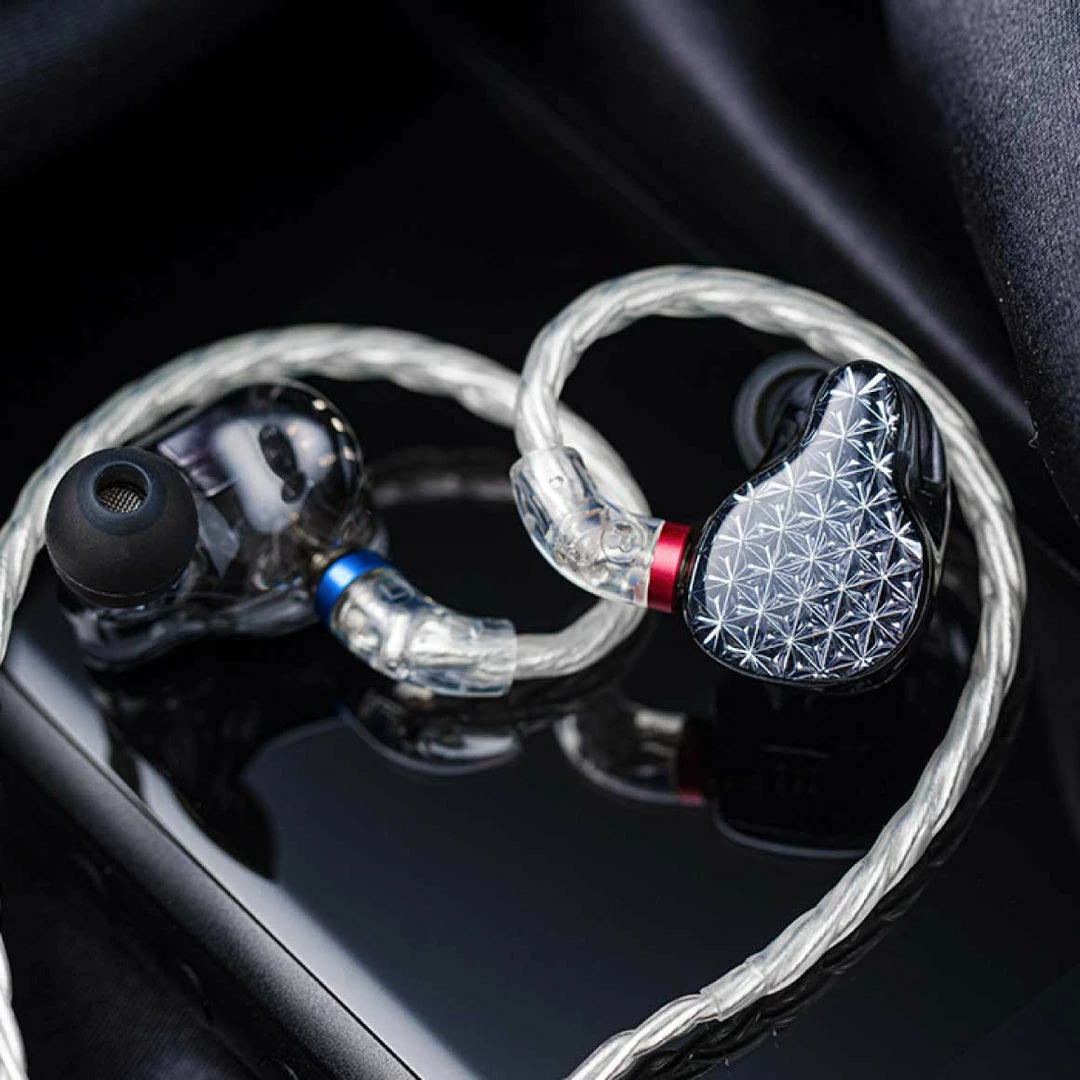

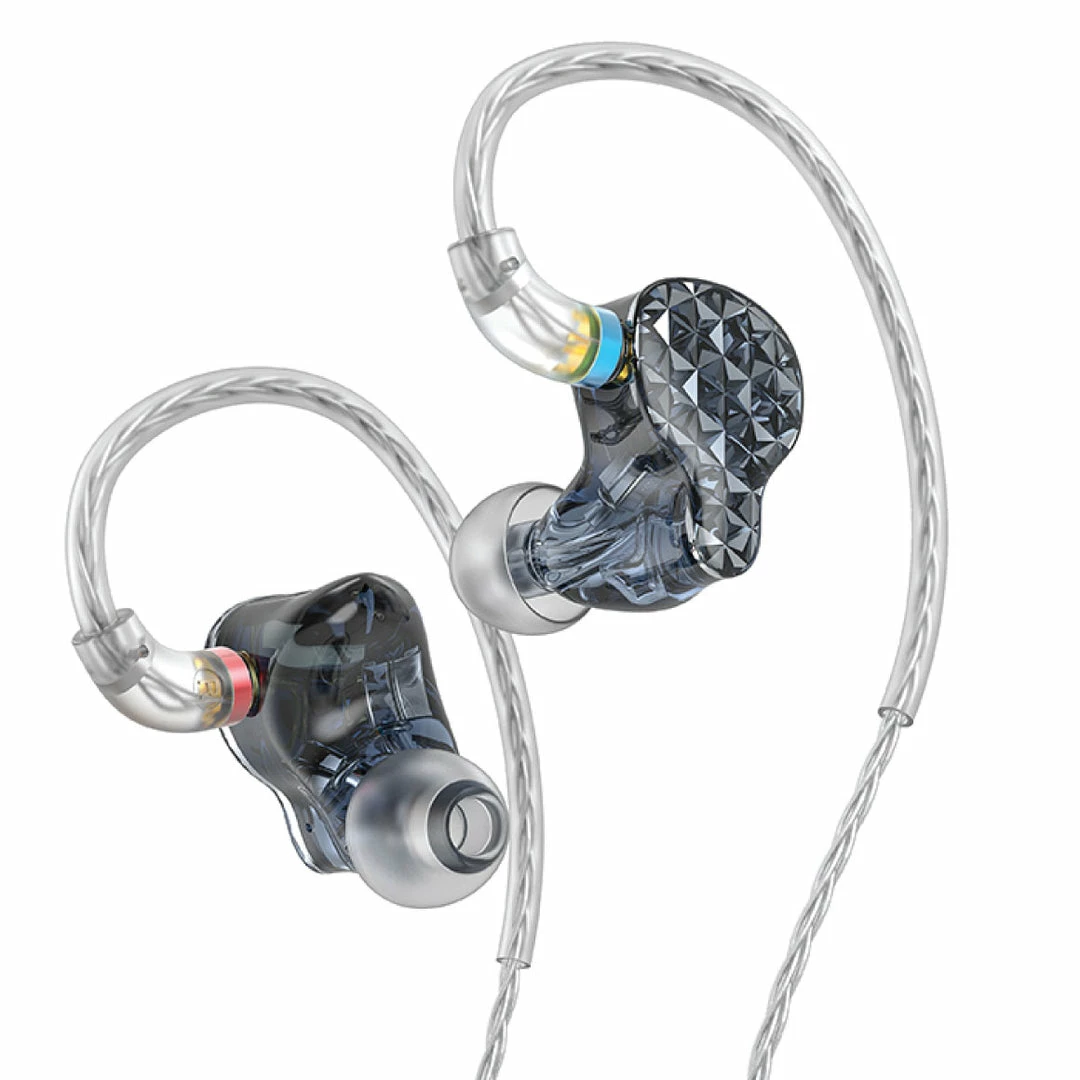

HIGH-RES AUDIO CERTIFIED EARPHONES WITH 8-STRAND MONOCRYSTALLINE SILVER-PLATED COPPER CABLES
With the support of 8-strand monocrystalline silver-plated copper cables, the FA9 delivers pure audio goodness, in fact so pure that you won’t even think about upgrading it to a better cable. These cables come with left blue and red right markings along with MMCX connectors and a gold-plated 3.5mm plug. Listen to your music exactly the way the artist intended with the High Res Audio certified FiiO FA9.




SPECS
| DRIVERS | Balanced Armature |
| DRIVERS CONFIGURATION | SWFK-31736๏ผhigher frequencies๏ผ EJ-33877๏ผmid frequencies๏ผ HODVTEC-31618๏ผlower frequencies๏ผ |
| FREQUENCY RESPONSE | 15Hz ~ 40kHz |
| IMPEDANCE | 16~32ฮฉ@1KHz |
| SENSITIVITY | 110/113dB@1mW |
| MAX POWER | 100mW |
| WIRED CONNECTIVITY | 3.5mm |
| MICROPHONE | No |
| CONNECTOR | MMCX |
| WEARING STYLE | In-ear |
| DETACHABLE CABLE | Yes |
| CABLE | 3.5mm headphone jack, expanded MMCX connectors |
| CABLE LENGTH | 120cm |
| WEIGHT | about 6.2g |
| BOX CONTENTS | 1. FiiO FA9 IEMs |
| 2. 8-strand, monocrystalline, silver-plated, copper MMC terminated cable | |
| 3. HB3 leather Case | |
| 4. SK-01 Magnetic Organizer | |
| 5. 2 X Spinfit eartips | |
| 6. 3 X Enhanced Bass eartips | |
| 7. 3 X Balanced eartips | |
| 8. 3 X Enhanced Vocal eartips | |
| 9. 2 X Double-flange tips | |
| 10. 2 X Foam tips | |
| 11. Cleaning brush |
COMPARISONS
FiiO – FA9โน 39,990/-โน 45,990
| FiiO – FA7โน 26,990/-โน 34,990
| FiiO – FD5โน 28,990/-โน 32,990
| FiiO – FH7โน 39,990/-โน 44,990
| |
| Sound Signature | ||||
| Driver Type | Balanced Armature | Balanced Armature | Beryllium-Plated Dynamic Drivers | Hybrid Drivers |
| Driver Configuration | 6x Knowles Balanced Armatures | 4x Knowles Balanced Armatures | 1x Beryllium-Plated Dynamic Drivers | 4x BA + 1x Beryllium-Plated Dynamic Drivers |
| Detachable Cable | MMCX | MMCX | MMCX | MMCX |
| Sensitivity | 110/113dB | 110dB | 109dB | 111dB |
| Impedance | 16~32ฮฉ | 23ฮฉ | 32ฮฉ | 16ฮฉ |
| Connector Type | 3.5mm | 3.5mm Gold-Plated Plug | 3.5mm, 2.5mm & 4.4mm Balanced Plugs | 3.5mm |
| In The Box | FiiO FA9 IEMs 8-Strand, Monocrystalline, Silver-Plated, Copper MMC Terminated Cable HB5 Leather Case SK-01 Magnetic Organizer 2 X Spinfit Eartips 3 X Enhanced Bass Eartips 3 X Balanced Eartips 3 X Enhanced Vocal Eartips 2 X Double-Flange Tips 2 X Foam Tips Cleaning Brush | FiiO FA7 IEMs High Purity Monocrystalline Silver-Plated Copper Cable With 3.5mm Plug Headphone Case Storage Bag 3 X Enhanced Bass Eartips 3 X Balanced Eartips 3 X Enhanced Vocal Eartips 1 X Bi-Flange Tips 3 X Foam Tips Cleaning Brush Cable Clamp | FiiO FD5 IEMs 8-Strand, Monocrystalline, Silver-Plated, Copper MMC Terminated Cable HB5 Storage Case Final MMCX Assist Interchangeable Audio Jack – 2.5mm, 3.5mm, And 4.4mm Interchangeable Sound Tubesโ2 (1-Large, 1-Small) Bass Eartips (S, M, L) Balanced Eartips (S, M, L) Vocal Eartips (S, M, L) Triple-Flange Tips (S, L) Foam Tips (S, M, L) Cleaning Brush. | FiiO FH7 IEMs 3 Pair Sets Of Interchangeable Sound Filters 3 Pair Sets Of SpinFit Ear Tips 1 X Fabric Carrying Case 1 X Faux Leather Carrying Case Detachable Litz Monocrystalline SPC Cable 3 X Base Eartips 2 X Balanced Eartips 2 X Foam Eartips 3 X Vocal Eartips 1 X Cleaning Brush User Guide/Warranty Magnetic Cable Tie |
| Experts Verdict | “The faceplate is a rhomboid pattern inlay that sits underneath & not on top of the resing layer. It looks charming in person,when it catches the light from the right angle.” AUDIOPHILE ON | “The FA7 feels and looks like a gem. I think FiiO finally released a product which is rock solid and dependable for the long run.I think we will hear the FiiO brand name a lot more in the IEM market soon.” Headfonia | “Once again, FiiO achieves great lengths and delivers exactly what they promised. the main quality of the FH5, openness, a feature you wonโt get any soon on any other model.” Headfonia | “FiiO continues to use their โwaveโ design language with their new FH7 and I admit it looks pretty cool. I pretty much like FiiO designs recently and this one is no exception.” Headfonia |
FAQS
DOWNLOADS
Warranty & Media Reviews
1 Year Warranty
Don’t sweat it, this FiiO FA9 comes with a 1 year warranty from FiiO that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer’s warranty.
Read more about FiiO’s warranty in India.
“Bass is moderately accentuated but the bump is not too much. FiiO never overemphasizes bass boost and it can be proved by numerous players and DACs.”
Read More
“FiiO FA9, the flagship, -printed shell, Knowles Balanced Armature drivers, a whole new 4-way filter, and, most importantly, 3 sound adjustments.”
Read More
“The switching is controlled by FiiOโs use of an electronic 4-way crossover & total of 3 switches on the sides of the drivers that offer up to 6 different sound signatures.”
Read More
“The FiiO FA9 is a multi BA IEM with a Semi-Custom Monitor shell which has 6 Knowles BA Driver’s on each monitor & shows a 4-way crossover system.”
Read More
Treble is quite a shapeshifter as it goes up & down multiple times.There is possibly a drop in the lower treble region that completely scares the brightness away.”
Read More
“Fa9 is made of plastic,it is one of the most comfortable IEMs I have ever tested.They arenโt small,considerably larger than RE800 Silver form HIFIMAN.”
Read More
“The faceplate is a rhomboid pattern inlay that sits underneathย & not on top of the resing layer. It looks charming in person,when it catches the light from the right angle.”
Read More
