A lot of power even for the most demanding of headphones, an excellent build, the versatility to take it along on the road makes the E10K a yesteryear hero and an all-time favourite

DESCRIPTION

One of the notable developments in the FiiO E10K-TC is its PCM5102 DAC chip. This chip brings about significant improvements in the functionality of the E10K-TC and improved audio quality without any phase shift or delays. The PCM5102 DAC can handle PCM files up to 32-bit/384kHz, or outputting 192 kHz over coaxial S/PDIF while improving audio quality via a linear internal filter; this also reduces delay, improves internal silence on changing tracks and induces no phase shifts. Now you can connect the E10K-TC to your laptop via its USB Type-C connection, which also provides it with power and offers a better interface with modern devices.

FiiO E10K-TC now comes embedded with an LMH6643 OP-Amp that elevates its driving power exponentially. The FiiO E10K-TC offers an output power of 200mW @32Ω and a USB decoding sample rate of 24 bit / 96kHz with enhanced transient response. Keeping up with the times, the E10K-TC comes embedded with the flagship XMOS XUF208 chip for more efficient USB decoding. This offers USB Audio Class 2.0 and supports up to 32bit/384kHz playback. The E10K-TC is also equipped with a Dual Gain setting that has an optimised low-pass filter along with a selectable Bass Boost circuit that delivers a low noise floor. Taking control of the volume is easy with the volume control knob that offers precise increments or decrements in volume and you can enable the Bass Boost Circuit via the button on the front panel.

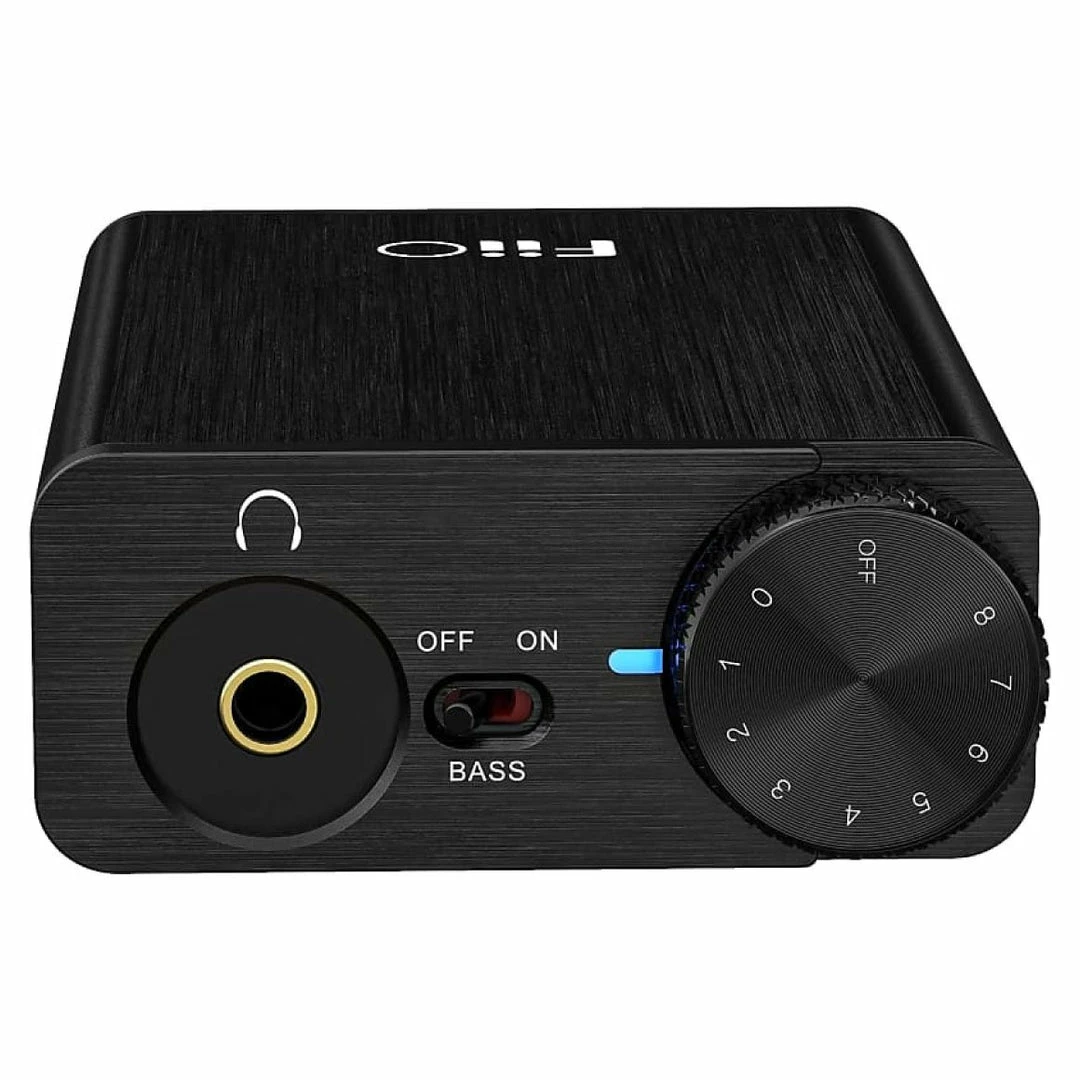

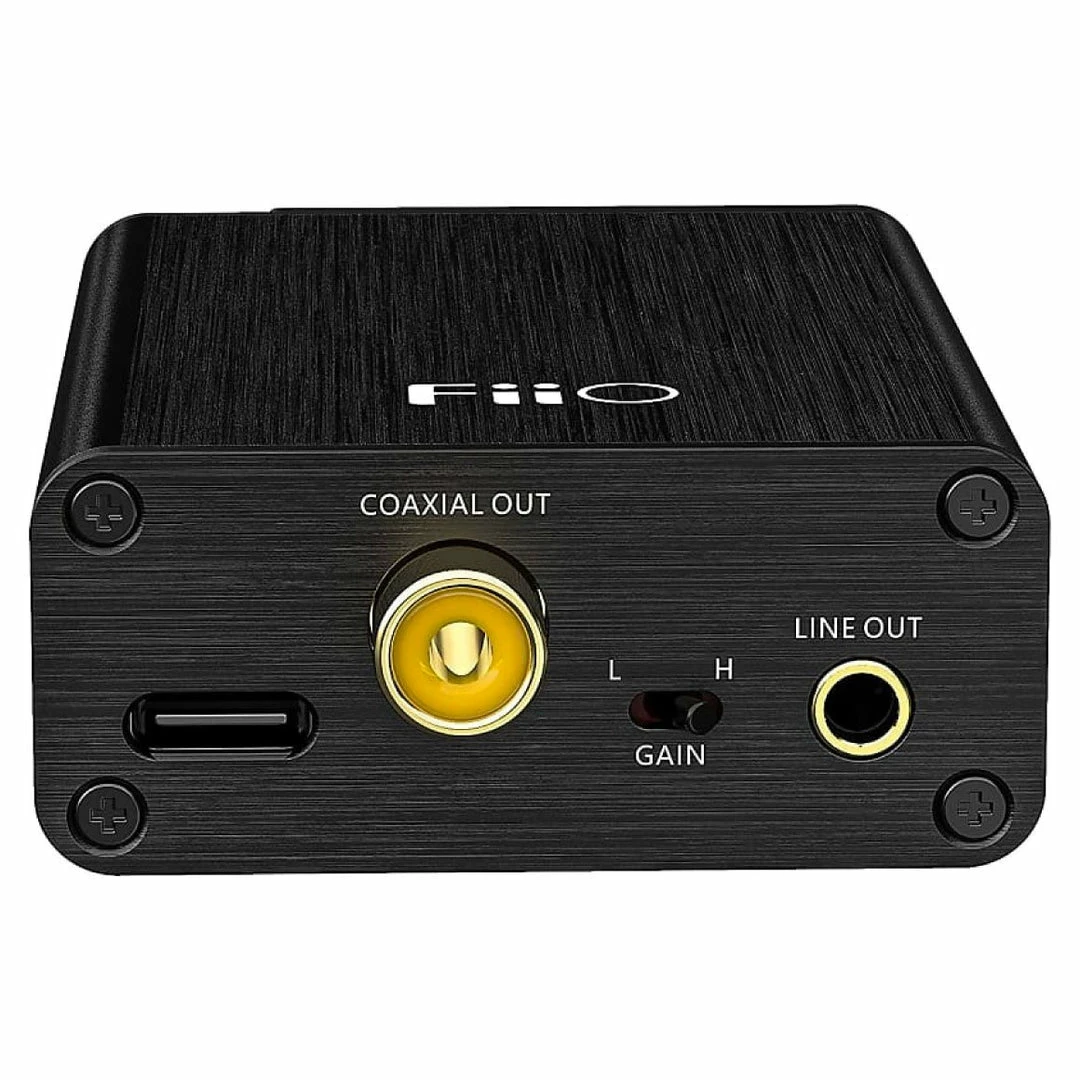

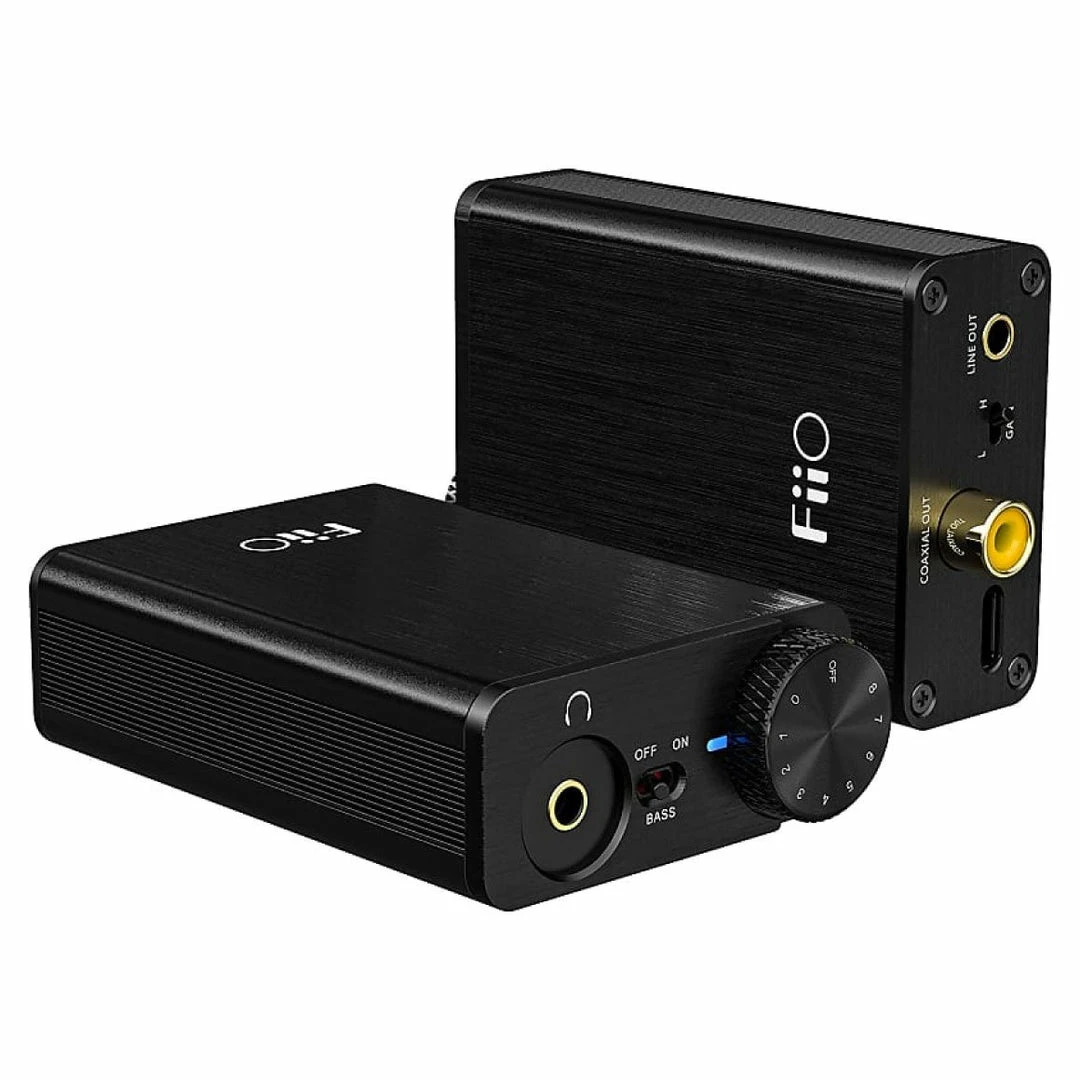

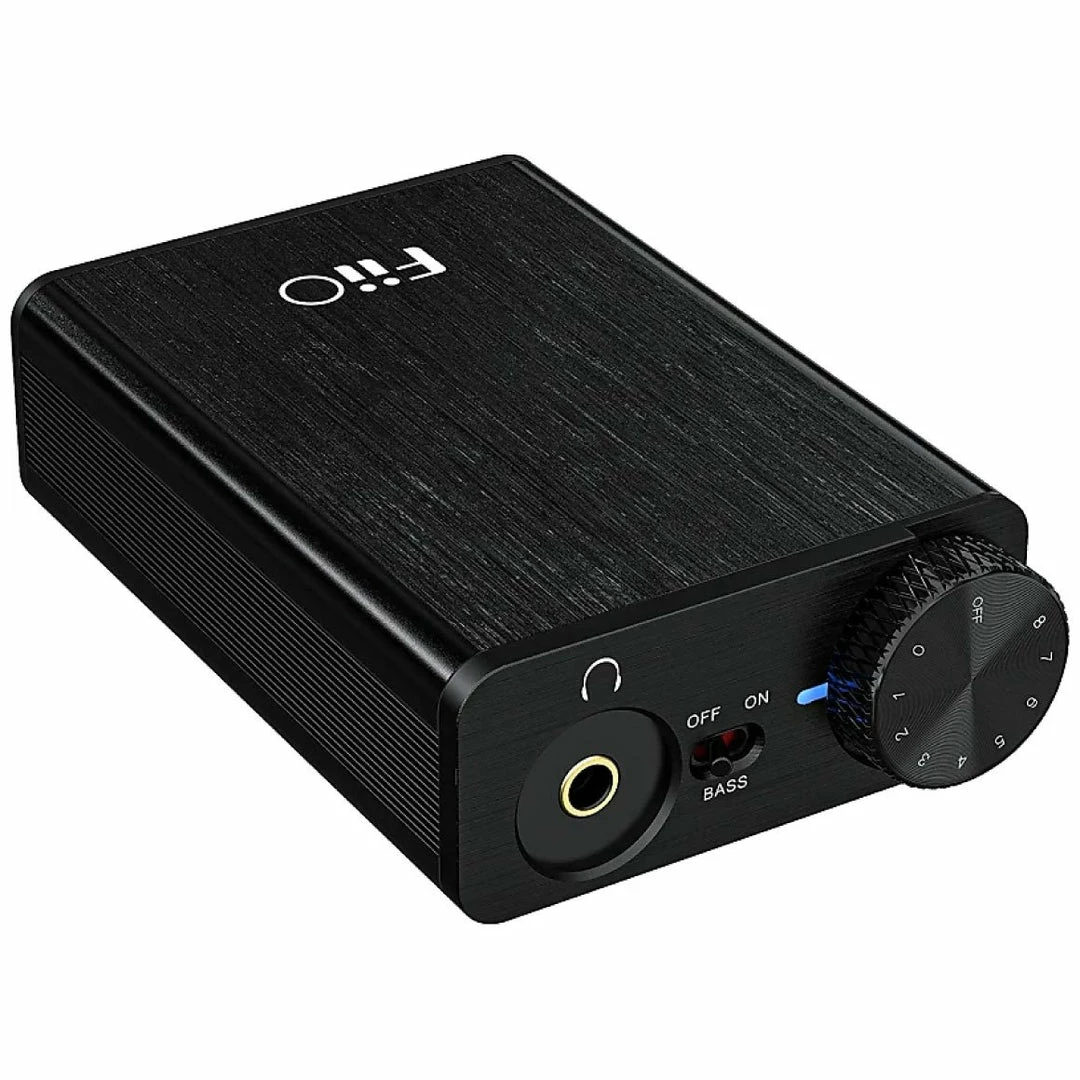

The FiiO E10K-TC is compact, portable and more durable than ever before, thanks to its brushed aluminium shell and chassis that allow for portable operation without worry. The E10K-TC connects to your laptop via its USB Type-C connection and offers a variety of connectivity options, including a front-panel 3.5mm headphone jack, a rear-panel 3.5mm line output, and a rear-panel RCA coaxial digital output, which allows you to send your digital audio to another destination. The connectivity options make it easier to connect to other pieces of equipment. These additions are thoughtful and keep in tune with technological advancements.

SPECS

SPECIFICATIONS

MODEL NAME	E10K
COLOR AVAILABLE	Black
WEIGHT	78 g
DIMENSIONS	79 mm×49.1 mm×21 mm
DAC CHIP	PCM5102
POWER SOURCE	Standard USB Type-C Connector
SIGNAL To NOISE RATIO	≥114dB
HEADPHONE OUTPUT	3.5 mm stereo Jack
COAXIAL DIGITAL OUTPUT	Stereo PCM
COAXIAL OUTPUT	192kHz/24Bit
SAMPLE RATE (USB DECODING)	Type-C: Upto 32Bit/384kHz
VOLUME CONTROL	ALPS Potentiometer
BASS BOOST	Yes
HEADPHONE IMPEDANCE (RECOMMENDED)	16~150 Ω
POWER INPUT	recommend DC5V 500mA
BATTERY CAPACITY	N/A
BATTERY LIFE	N/A
OUTPUT POWER	>200 mW (32 Ω/THD+N＜1%)
CHARGING TIME	N/A
THD	＜0.006% (1 kHz)
OUTPUT IMPEDANCE	＜1.04 Ω
FREQUENCY RESPONSE	20 Hz~20 kHz
SUPPORTED S/N RATION	≥108 dB
INPUT SENSITIVITY	N/A
MAX INPUT LEVEL	N/A
CROSSTALK	≥70 dB (1 kHz)
CHANNEL IMBALANCE	＜0.4 dB
GAIN	1.6 dB (GAIN=L) 8.8 dB (GAIN=H)
BASS BOOST RANGE	N/A
MAX OUTPUT CURRENT	81.6 mA

IN THE BOX

BOX CONTENTS

1. FiiO E10K-TC

COMPARISONS

	FiiO – E10K ₹ 5,990/- ₹ 6,490/-	FiiO – K3 ₹ 8,990/- ₹ 10,990-	EarMen – Donald DAC ₹ 9,999/-	TOPPING – MX3 ₹ 11,999/- ₹ 13,999/-
Warranty
Ideal For	Portable	Desktop	Smartphone & Desktop	Desktop
Weight	78g	82g		475g
DAC Chip	PCM5102	AKM AK4452	Cirrus Logic CS43198
Sample Rate	24Bit/96kHz	384kHz/32 bit	32bit/384kHz	44.1KHz-96KHz/16Bit-24Bit
Balanced Outputs
Outputs	3.5mm	2.5mm & 3.5mm	RCA	3.5mm
Digital Inputs	Type-C	USB-C	USB-C – DATA/Power Supply USB-C – External Power Supply	BT/USB/OPT/COAX/AUX
Output level	200 MW (32 Ω/THD+N＜1%)	220mW(16Ω) 120mW(32Ω) (3.5mm Headphone Output) 320mW(16Ω) 200mW(32Ω) (2.5mm Headphone Output)		257mW X 2 At 32ohms 42mW X 2 At 300ohms
Signal to Noise Ratio	＞105 DB （A-Weighted）	320mW(16Ω) 200mW(32Ω) (2.5mm Headphone Output)		103dB
Bluetooth Version				V4.0
Bluetooth Codecs
MQA Support
Volume Control
Expert Verdict	“The bottom line for people upgrading from a computer’s headphone jack the new E10k has great power for a very small device and is insanely better in power and volume.” Headfonics	“The K3 looks like a cuter version to some Maudio’s pro audio interfaces and the matte grey black finishing make it looks sleek and very industrial.” Headfonics	The EarMen Donald DAC is one of the better budget DAC’s out there. I enjoy a load of purity now and then and I can safely say that this DAC is something purists will like a lot.” Headfonics

FAQS

: The warranty period on FiiO E10K is for 1 year. Read more information about FiiO’s warranty in India.click here.
: [Fail to turn on] When the E10K-TC could not be turned on, please try to reconnect or unplug and plug it off the USB to return to normal performance.
[No sounds out, noisy sounds, only one channel can work] The following methods can help you troubleshoot the cause:
1. Reboot the E10K-TC by operating the power on/off knob.
2. Switch input source: such as the adapter cable, USB cable, computer
3. Switch output source: such as headphones, headphone cable
[Water damage] Please shut down the E10K-TC immediately and do not charge it. Store it in a dry place and contact our support team for help
: [Windows system] *Windows system supports USB DAC 2.0 mode: When first connecting, please go to our website to download the DAC driver, and install it as the instruction to enable the USB DAC function.
Download link: http://fiio-file.fiio.net/FiiO_USB_DAC_Driver-V4.47.0.zip
*The following instruction takes Windows 7 as an example to introduce how to install the USB DAC driver (v4.47.0) on the computer, and use the E10K-TC to play songs: https://forum.fiio.com/note/showNoteContent.do?id=202106181129330797039&tid=17
[MacBook] MacBook does not need to install the driver. Directly choose the E10K-TC as the output device.
How to use the FiiO device as USB DAC on MAC: https://forum.fiio.com/note/showNoteContent.do?id=202105191616354037331
: [Power/Volume Knob] *Turn the Power/Volume knob clockwise until a click sound is heard to turn on the device; keep turning clockwise to increase the volume.
*Turn anticlockwise to decrease the volume; turn anticlockwise until a click sound is heard to turn off the device.
[GAIN switch] H: Switch to high gain
L: Switch to low gain
Choose the gain level based on the earphones you are using. It is suggested to adjust the volume knob between 9 and 3 o’clock. and choose the gain level for your own preference.
[BASS switch] Bass boosting: Turn the BASS switch to ON to boost the bass performance. You could turn it on or off based on your personal preference.
: 1. After connecting to the computer, if the E10K-TC can work normally but the indicator light keeps off, the light is probably broken.
2. After connecting to the computer, if the indicator light keeps flashing, it is suggested to unplug and plug the USB cable or restart the computer. If the problem still exists, it may be the issue of the E10K-TC.
3. Last but not least, it is suggested to disconnect and reconnect the E10K-TC after quitting the music app.
: The E10K-TC supports 3.5mm single-ended headphone, coaxial and line-out output.
(The coaxial can support up to 192k/24bit output.)
The E10K-TC’s headphone, coaxial and line-out output can work at the same time.
: The volume of the E10K-TC’s coaxial and line-out output cannot be controlled through the volume knob.
: The E10K-TC has a power switch (i.e. the volume knob). When the E10K-TC is not in use, you only need to rotate the knob to turn off the E10K-TC yet without having to unplug the USB cable.
: The port of the E10K-TC is a combo of both power supply and data transfer, which is designed for desktop computers or laptops. It is not recommended to connect it to mobile devices.
: 1. Both of them are portable desktop DAC and headphone amplifier.
2. In terms of the USB Audio class, both of them support PCM up to 384kHz/32bit. The difference is that the New K3 also supports native decoding up to DSD256, while the E10K-TC does not support DSD.
3. The New K3 features a 2.5mm balanced output port, while the E10K-TC only has a 3.5mm single-ended output port.
4. The E10K-TC is more cost-effective.
In short, for balanced output and DSD requirements, the New K3 will be more appropriate, while single-ended output and non-DSD decoding can take the E10K-TC as a choice.
