DESCRIPTION

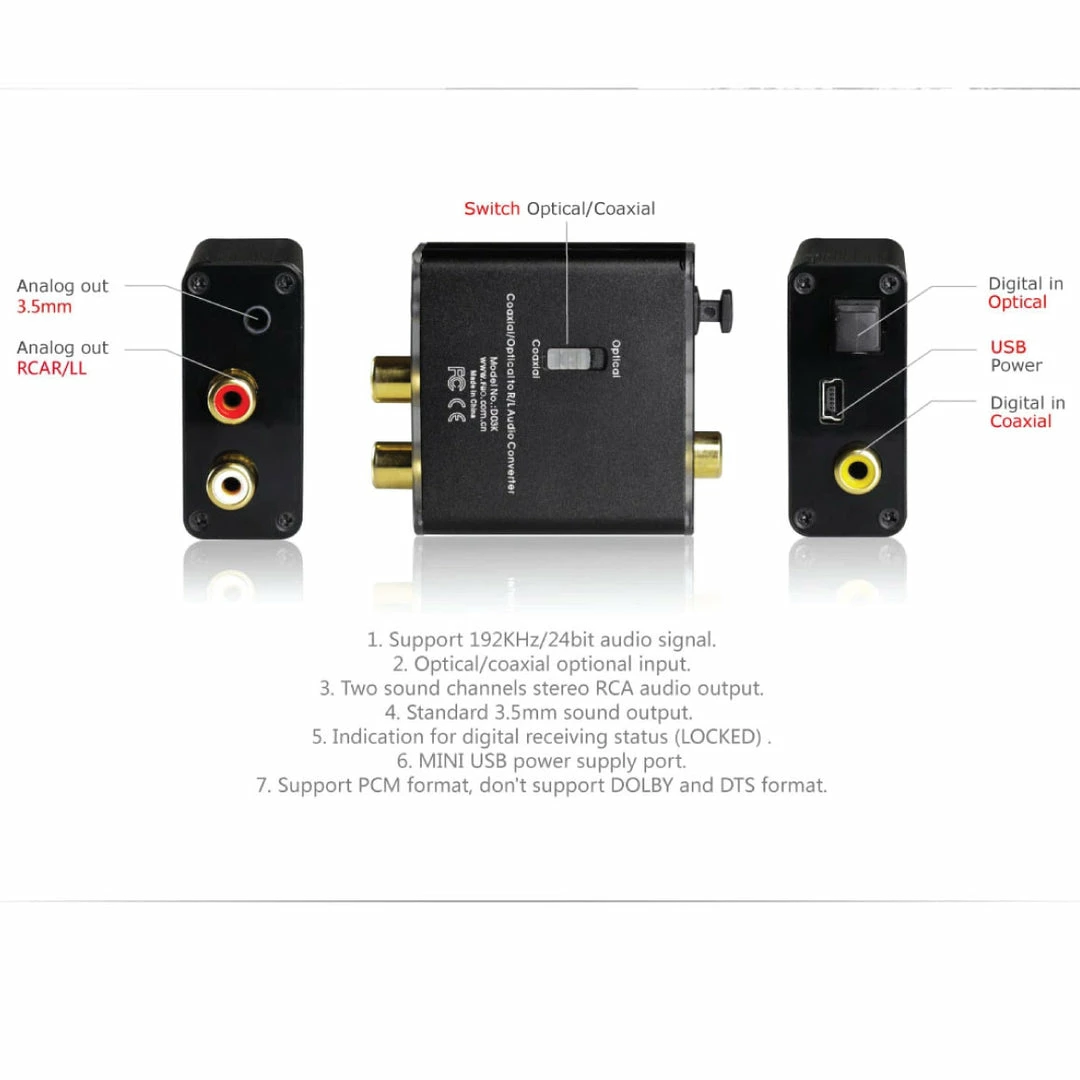

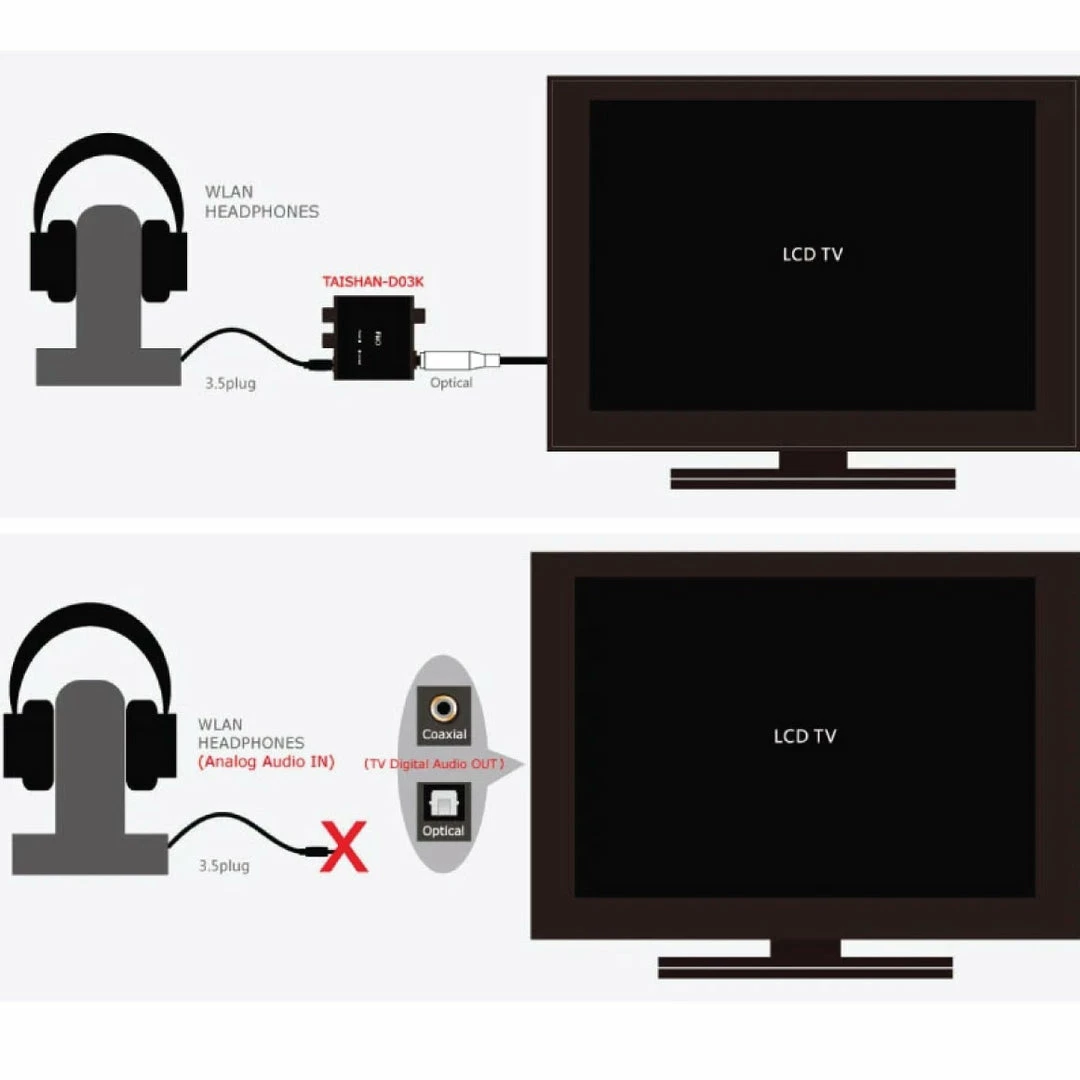

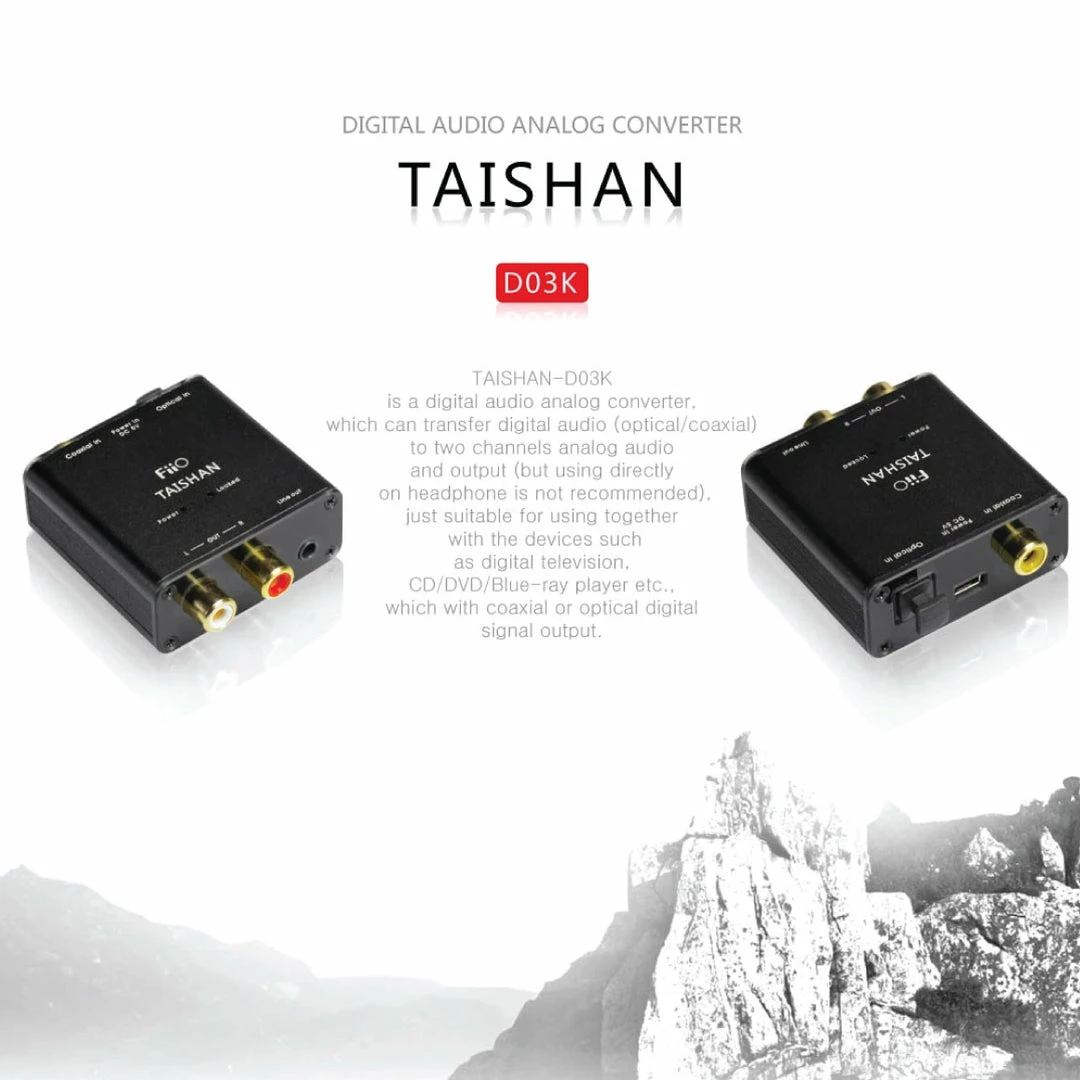

A simple yet powerful DAC that converts coaxial or optical digital audio input to the analogue stereo output using RCA and a 3.5mm mini stereo jack. Perfect for modern devices including TVs, gaming consoles, analogue amps, active speakers and wireless headphones that come with digital audio output.

The ultra-low jitter digital receiver chip and the low noise DAC allows the FiiO D03K to support a range of sample rates including 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz, that too at up to 24-bit resolution. Choose from the selectable coaxial or optical inputs. Note: Kindly note that the FiiO D03K only supports PCM audio signals and not Dolby, DTS, or other surround sound signals. Therefore make sure that the digital audio output of your device is PCM/LPCM output or else the sound output will be noise or static.

SPECS

MAIN UNIT

MODEL	TAISHAN-D03K
AUDIO INPUT	COAXIAL/OPTICAL
DRIVE ABILITY	speaker(recommend)
SAMPLE RATE SUPPORT	192 kHz/24 bit
HEADPHONE OUTPUT	3.5 mm stereo Jack
CHARGING TIME	N/A
BATTERY CAPACITY	N/A
BATTERY LIFE	N/A
BASS BOOST	N/A

POWER SPECIFICATIONS

POWER INPUT	recommend DC5V 500mA
OUTPUT IMPEDANCE	N/A
FREQUENCY RESPONSE	20 Hz~20 kHz
THD+N	＜0.008% (1 kHz)
SNR	＞95 dB
CROSSTALK	≥85 dB (1 kHz)
INPUT SENSITIVITY	N/A
MAX INPUT LEVEL	N/A
CHANNEL IMBALANCE TIME	N/A
BASS BOOST RANGE	N/A
MAX OUTPUT VOLTAGE	N/A
MAX OUTPUT CURRENT	N/A

DESIGN & GENERAL

COLOR	Black
DIMENSIONS	61.6 mm×49.1 mm×21 mm
WEIGHT	50 g
VOLUME CONTROL	N/A

IN THE BOX

BOX CONTENTS	1. FiiO D03K
	2. 1 X USB cable
	3. 1 X Quick Start Guide
	4. Warranty Card

FAQs

: FiiO offers a one year warranty. If you need to claim warranty, you can contact us. We are quite friendly people, just sayin. You can read more about warranty here.
: Try changing to another USB power adapter or using a computer USB port as power source as a test. If the problem persists, it may be a problem with the D03K itself; please contact your seller for aftermarket support.
: 1. Please check whether the unit is powered.
2. Please check that your audio equipment / TV is set to output stereo PCM signals to the D03K. If Dolby, DTS or other multichannel format audio was being output, please change to stereo PCM and try again.
3. Please check whether the input selection switch at the bottom is set to the correct position corresponding to optical / coaxial input used, or change to another optical / coaxial cable and try again.
4. If the problem persists please contact your seller for aftermarket support.
: 1. The D03K does not support Dolby, DTS or other multichannel input. Please set your equipment’s audio output format to stereo PCM.
2. When the D03K is connected to an Apple TV, it will produce about 1 minute of noise upon connection of the Apple TV to AC power as the Apple TV’s optical digital output is initializing. After that, the D03K will play audio normally from the Apple TV; this is a normal phenomenon.
3. While the audio output is confirmed to be stereo PCM, if noise / interference occurs while playing songs, please try swapping out the optical / coaxial cable for one of better quality and confirm that the connection is secure, or try changing the RCA cable.
