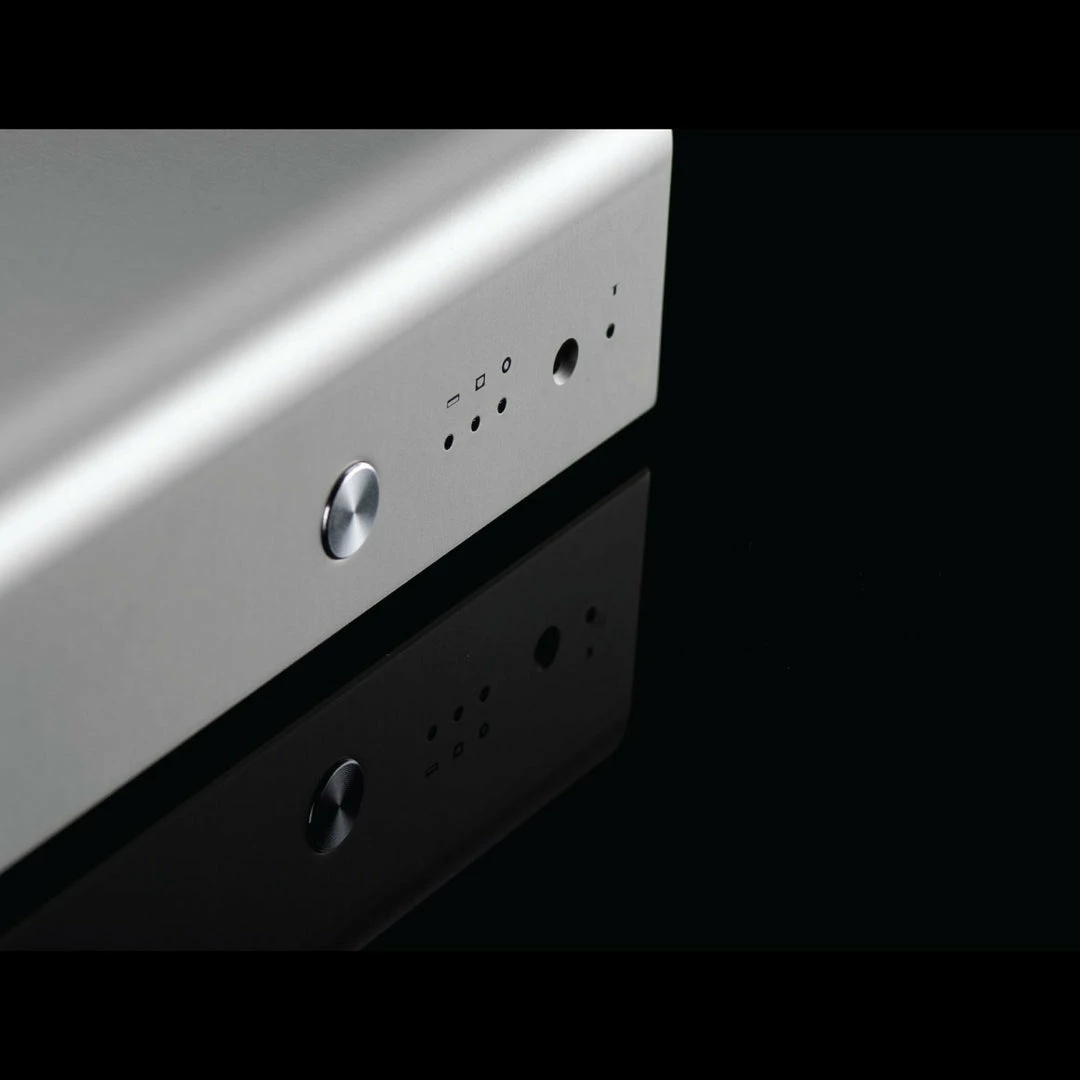

Top 10 ✨ Desktop Amps & DACs Schiit – Bifrost 2 😉

Original price was: $501.00.Current price is: $97.99.

SKU: schiit-4519273234495 Category: Desktop Amps & DACs Tags: CI_5 Years, CI_DAC, Collection_Desktop Amps/DACs, Detailedreviewforamps_dacs, Filters_Desktop Amps/DACs, K_Audiophiles, Nocod, Noreturn

Safe and Secure Payments, Always
The best quality products, always.
Unbeatable Quality Guaranteed
Safe Payments for a Better Shopping Experience

Designed & Made
in the USA

5 Years of
Warranty

Ideal for
Audiophiles

Ideal for
Indoor Use

AD5781ARUZ
Dual DAC Chip

Pair with Laptop
via USB

Connect With USB
Coaxial SPDIF & Optical SPDIF

Metal
Build

Remote
Controls

DESCRIPTION

The Schiit Bifrost 2 comes equipped with Schiit’s unique True Multibit™ D/A converters and their proprietary time & frequency domain optimized digital filter. It has two AD5781 converters that do the conversion while the digital filter is applied on Analog Devices SHARC DSP.

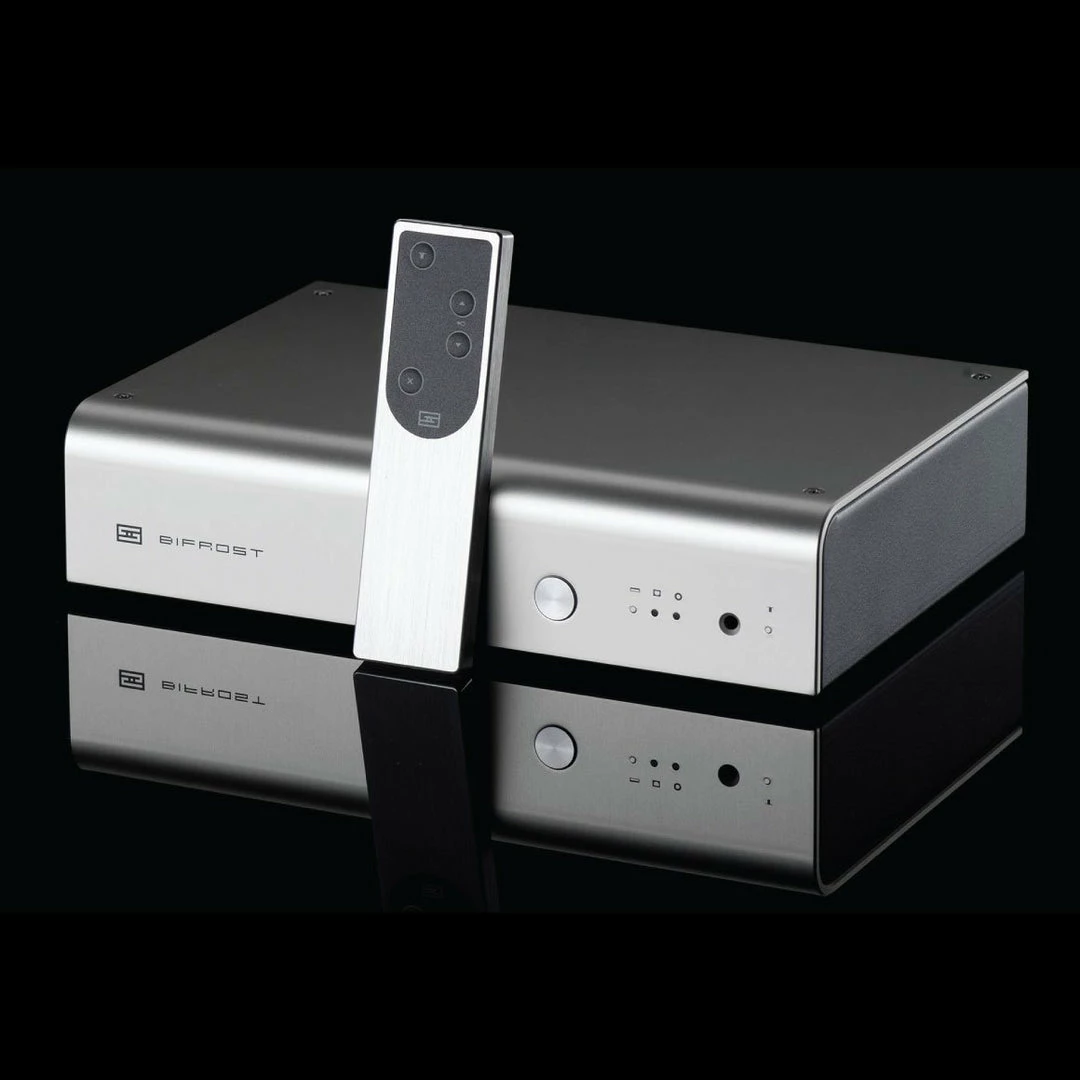

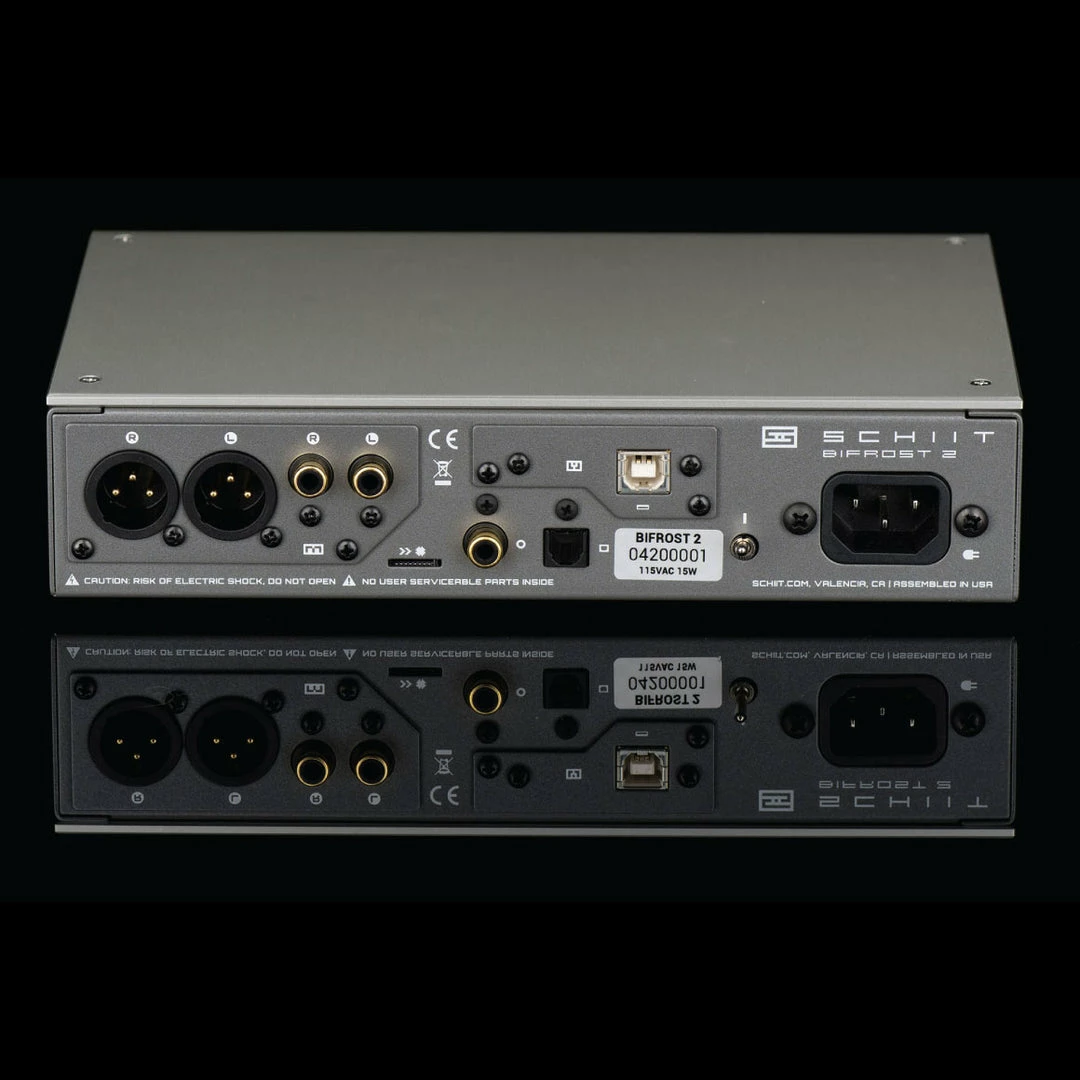

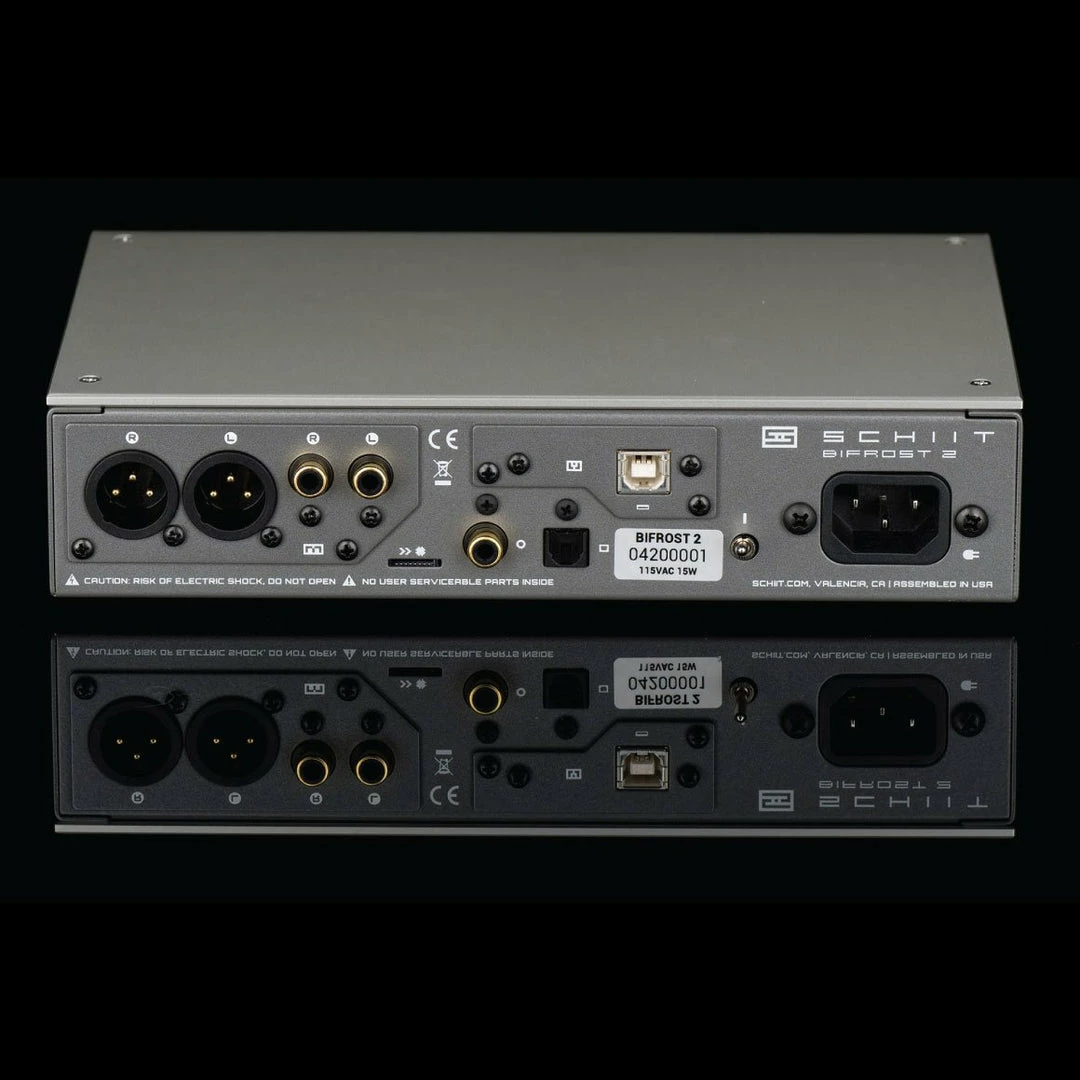

The Bifrost 2 comes with multiple input & output options. A unique Unison USB offers the best performance with minimum power consumption thanks to its precision local clocks, PIC32 microprocessor and electrostatic & electromagnetic isolation. It also features an XLR balanced output and RCA single output. It comes with a milled aluminium remote control that allows you to choose from various options including inputs, mute and change phase.

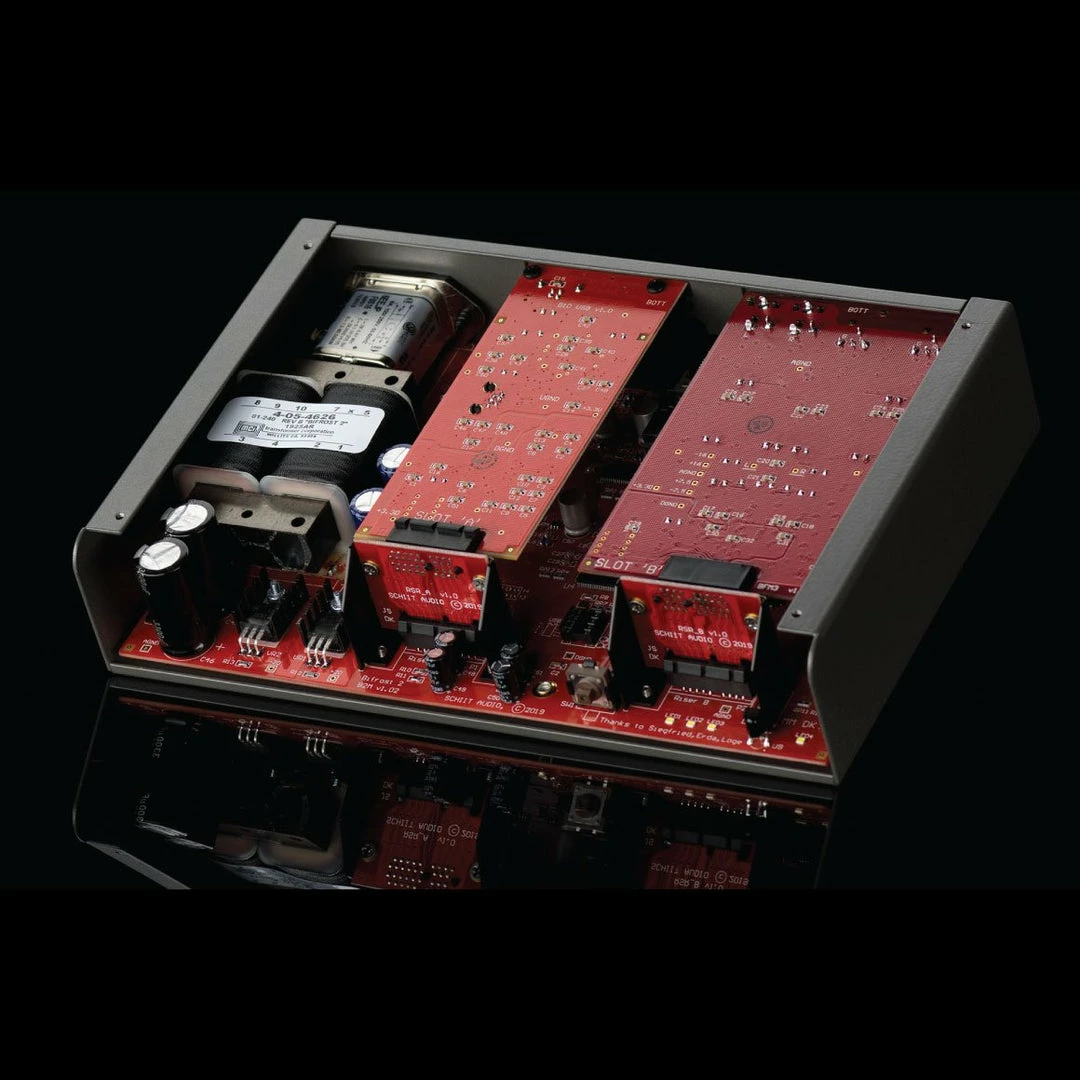

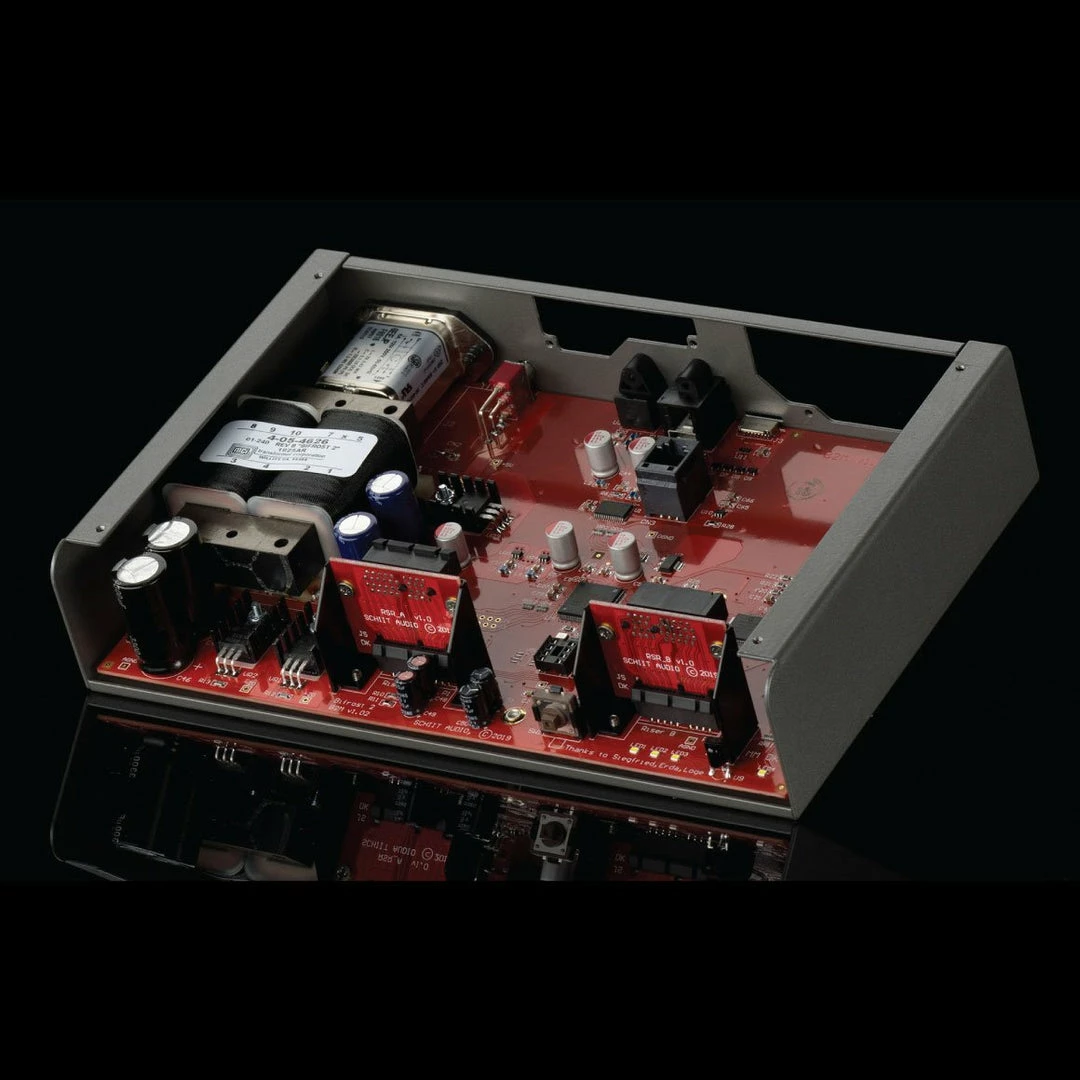

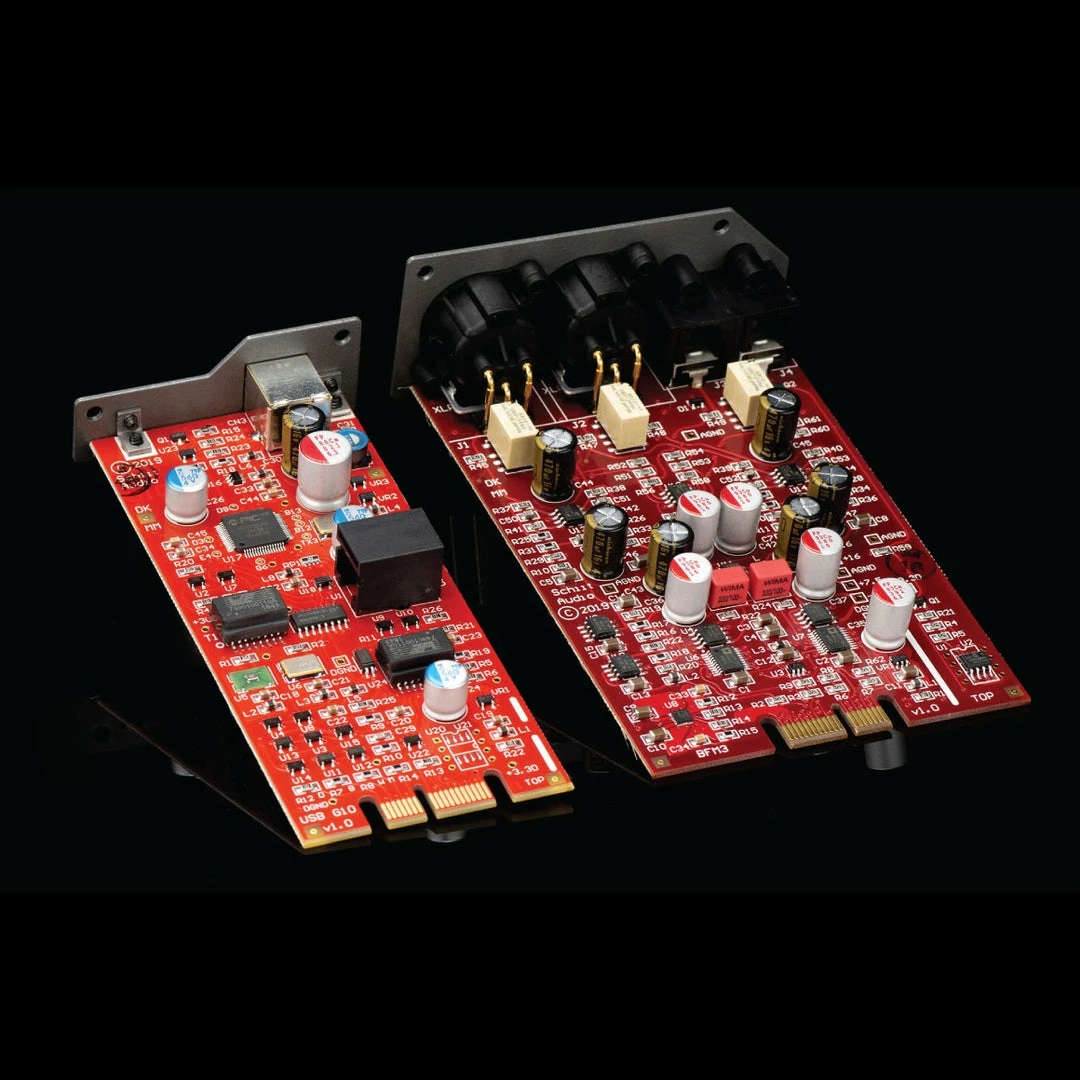

The Schiit Bifrost 2 is entirely modular and you don’t have to reach out to Schiit for upgrades, but can do it yourself. The modules are designed to slide in from the back of the chassis, letting you easily upgrade them. You can use the external microSD card slot to install firmware updates. In short, you get the freedom to improve your DAC whenever you want.

SPECS

SPECIFICATIONS

CONVERSION TYPE	Schiit True Multibit™
D/A CONVERSION IC	Analog Devices AD5781ARUZ x 2
DIGITAL FILTER	proprietary Schiit time- and frequency-domain optimized digital filter implemented on Analog Devices SHARC DSP processor, running 8X oversampling
ANALOG STAGE	Differential, based on LME49724 for both balanced and single-ended output, direct coupled throughout
FREQUENCY RESPONSE	20Hz-20KHz, +/-0.1dB, 2Hz-100KHz, -1dB
MAXIMUM OUTPUT	2.0V RMS single-ended and 4.0V RMS balanced
THD	<0.003%, 20Hz-20KHz, at max output
IMD	<0.004%, CCIR
S/N	>114dB, referenced to 2V RMS
INPUTS	Coaxial SPDIF, Optical SPDIF, USB
INPUT CAPABILITY	up to 24/192 for all inputs
INPUT RECEIVER, SPDIF	AK4113, USB: Schiit Unison™ USB, based on Microchip PIC32 microprocessor
OUTPUT	RCA (single-ended) and XLR (balanced)
OUTPUT IMPEDANCE	75 ohms for both
POWER SUPPLY	24VA transformer, 8 stages of regulation, including separate supplies for critical digital and analog sections
UPGRADABILITY	Autonomy™ architecture with externally replaceable DAC/Analog Card and USB Input Card, plus MicroSD card slot for firmware updates
REMOTE CONTROL	included, controls source selection, phase invert, and mute.
POWER CONSUMPTION	12W
SIZE	9 x 6.75 x 2”
WEIGHT	5 lbs

IN THE BOX

BOX CONTENTS	1. Schiit Bifrost 2
	2. Remote Control
	3. Power Cord

FAQs

: Yes, it was. And it is. For example, and you can still upgrade, say, an original Bifrost Uber to a Bifrost Multibit, and when Unison USB is available for all the current DACs, you’ll be able to add that too—
: Well, the original Bifrost was around for 8 years. That is pretty much about a millennium in terms of DAC years, or at least about 286 years in dog years. Seriously, look around and tell us how long affordable DACs last before they’re replaced with all-new models—with no option to upgrade. And again, the original Bifrost remains upgradable, and supported. Bifrost 2 doesn’t change that.
: Why an iPhone 11? Why a Galaxy 10? Because times change, and our capabilities change with them. Bifrost 2 allows us to give you an all-new platform that is easy to update, when and if the time comes, without having to send it back to us for upgrades.
: It’s entirely different:

1. Balanced output: Bifrost 2 now has balanced output, as well as single-ended output, to simplify its integration with your system

2. Remote control: Bifrost 2 now has a remote control for input select, mute, and phase invert.

3. Better DACs: Bifrost 2 now uses the 18-bit Analog Devices AD5781ARUZ D/A converter, rather than the 16-bit AD5547.

4. Better USB: Bifrost 2 introduces our Unison USB—a complete elevation of the USB input.

5. Easier updates: Bifrost 2’s Autonomy architecture means that both cards are replaceable from the back of the product for easy hardware updates, and firmware changes are handled with an external MicroSD card slot.

6. Improved power supply: Bifrost 2’s transformer is larger, and the power supply has more stages of local regulation, for insanely great low-noise performance.
: Yes. It controls input select, mute, and phase inversion.
: We did. It’s an additional $299. It’s called “Saga S.” There’s even a tube remote volume option for $399, called “Saga+.”
: I’m sorry, but that’s not possible. Literally every single part is different—chassis, transformer, cards, etc. However, you can still continue upgrading your Bifrost, if you would like. We’re also giving every original Bifrost owner or upgrader $100 off the price of Bifrost 2 if you want to move on.
: No, we named it True Multibit™ because there’s a lot of confusion over what is really multibit and what isn’t. Some companies refer to multilevel delta-sigma D/A converters (like the AK4490 used in the $99 Modi 3 and Fulla) as “Multibit” DACs. While kinda-sorta-maybe is technically correct, this is pretty misleading. 2 to 5 bits of actual resolution plus massive amounts of noise shaping is not true multibit. Hence, True Multibit. We use True Multibit to denote DACs that have 16-20 actual bits, rather than multilevel noise-shaping delta-sigma DACs, coupled with our unique combination of time- and frequency-domain optimized digital filter, based on math first proposed by Western Electric in 1917, and developed into usable algorithms by a team that included a professor emeritus of math and a Rand Corp mathematician. It’s unlike any other digital filter today, and we believe it provides the closest thing to a true interpolation while retaining the original samples as closely as possible.
: Cool. You should go buy one. We make a couple of them. They’re also in your phone and Bluetooth speakers.
: Well, leaving aside the fact that there probably ain’t nowhere near 24 usable bits in any recorded music, no matter the audiophile cred, if you’re looking for resolution below the 18-bit level, take a look at our measurements, showing Bifrost 2 clearly resolving a -144dB signal. That’s -24 bits. Boom.
: How does a 2- to 5-bit delta-sigma DAC do the same thing? It’s magic. We put tiny pixies in each DSP chip. Either that, or we know a thing or two about DSP and dithering.
: Unison USB is our own proprietary USB input, not based on C-Media or XMOS or any other off-the-shelf USB receiver out there. Instead, we spent a couple of person-years developing our own code for a standard Microchip PIC32 microprocessor, which allowed us to create a higher-performing USB input than anything else on the market.
: UniNot Unison USB. Even Mike Moffat, the famous “friends don’t let friends use USB” guy, prefers Unison to SPDIF.
: Yes.
: Yes.
: We know how you feel.
: Unison USB is special because it was developed for a single purpose: to provide the highest performance input for PCM digital, period. It doesn’t have ten thousand un-used functions, nor is it trying to optimize for five different unicorn formats that will probably be gone tomorrow. It also uses very high-quality local clocks and offers complete electrostatic and electromagnetic isolation from the source. It also provides lower power draw and complete UAC2 compatibility.
: Actually, the question should be “What platforms support your Unison USB input?” since our Unison USB input is 100% UAC2 compliant (that is, USB Audio Class 2, the accepted standard for USB audio transmission.) So, here you go:

Linux. As in, most popular streamers, from the Sonore MicroRendu to the Salk Streamer. Note “most.” Also most Linux distros that support UAC2 natively will be plug and play. Please note that we cannot provide detailed technical support for Linux.

Windows 10. Yes, Windows 10 only. We don’t provide UAC2 drivers for earlier versions of Windows, sorry. Yes, it is time to step into the present (not the future, Windows 10 has been out for a couple of years now.) Yes, it is time to upgrade. Yes, it’s worth it. Windows 10 is actually a very nice platform.

Mac OSX. From 10.10 on up, Macs are good to go. Sometimes you’ll run into power management problems that will require you to turn off App Nap. Got an older version of MacOS? See the comments on Windows above. Time to upgrade. The software is free.

iOS. From iOS7 on up, iOS devices work with USB Camera Connection Kit, Lightning to USB Camera Adapter, a Lightning to USB3 Camera Adapter, or directly with the new USB-C models.

Android. Most Android devices that shipped with Android M or above will work using a USB OTG cable. Some may require separate player software, like USB Audio Player Pro.
: Yeah. We know. But again, we really needed to name this. Because now, no matter the update, Bifrost 2 never has to leave your hands. New firmware? Just plug in an external MicroSD card. New analog card? Just slide it in. New USB card? Same. Again, we’re not planning on a ton of updates, but when there are updates, you won’t miss your DAC anymore.
: We try. The biggest problem with the original Bifrost’s platform is that it frequently had to come back to us for updates. We wanted to eliminate this problem—entirely—with the new version.
: In some ways, it actually measures better than a Yggdrasil…so if you’re judging based just on measurements, then it’s probably better. But measurements don’t tell the whole story. If you want great measurements, there’s Modi 3—that’ll save you half a thousand dollars on this guy. But now that you mention it, Bifrost 2 is pretty much a desktop Yggy—it has balanced outputs, it uses DACs from the same family, it has a similar digital filter. And it even has a remote control. No, wait. That’s better than Yggdrasil.

WARRANTY

Don’t sweat it, this Schiit Bifrost 2 comes with a 5 year warranty from Schiit that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer’s warranty.
