Chi-Fi
Excellence
3 Years of
Warranty
Ideal for
Audiophiles
Ideal for
Indoor Use
R2R Ladder
DAC
3-Pin XLR
Balanced Output
Connect With USB,
AES, I²S, Coaxial & TOSLink
Pair With Laptop
via USB
Metal
Build
DESCRIPTION
REVISED TECHNOLOGY DELIVERING SUPERIOR SIGNAL
The Denafrips Terminator II is developed from the technologies found in the flagship device of the company. The device uses state of the art fourth generation discrete resistor 26 Bit R-2R for PCM decoding, 6Bit DSD hardware decoding with 32 steps FIR filters. This is a total breakthrough of the traditional integrated chip constraints. The result of this architecture is superior sound signal and seamless decoding capability.

SOPHISTICATED DESIGN INTEGRATING ADVANCED CRYSTAL OSCILLATOR CLOCK

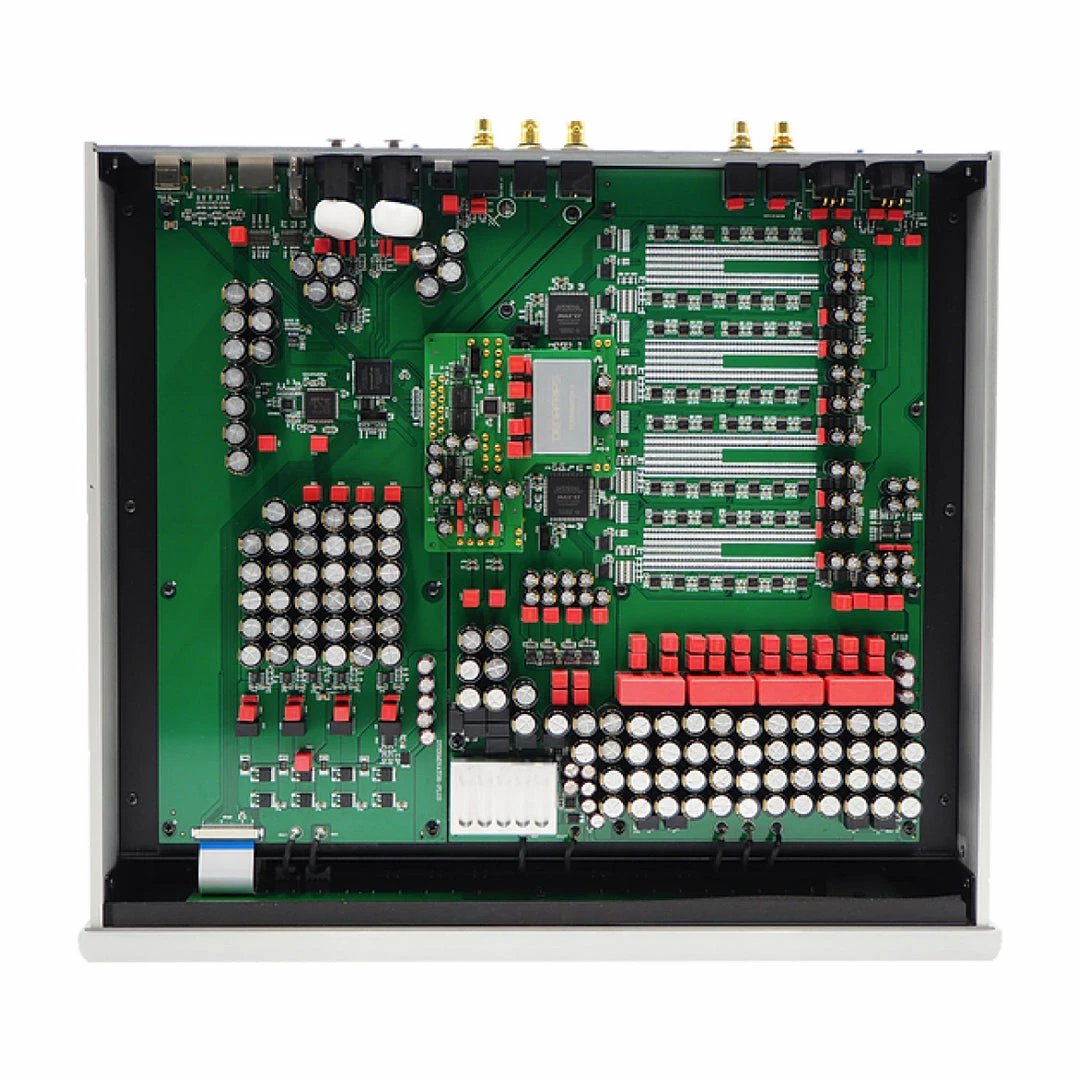

Denafrips Terminator II’s core conversion module, R-2R is constructed with 0.005% high precision, 10ppm low thermal effect precision resistors. Each channel uses more than 500pcs of these precision resistors, or 1000pcs for two channels, 4 times more than the other typical R-2R DAC. These achieve a truly astonishing low distortion, full balanced design. Oven Controlled Crystal Oscillators OCXO clocks are used with FIFO buffer and reclocking – to eliminate the word-clock jitter from the sources.


STATE OF THE ART LINEAR POWER SUPPLY ENCASED IN THICK METAL ALLOY ENCLOSURE
The Denafrips Terminator II houses a dedicated encapsulated beefy linear power supply unit, designed in a thick metal alloy enclosure which can be found underneath the DAC board with an additional steel plate divider between them for extra shielding. The box-within-box design eliminates the inherited problems of dual box solutions. Beefy dual O-Core Transformers for Digital and Analog sections, Ultra-Low ESR, Long Endurance Reservoir Capacitors, and multi-stages super linear power supply, ensuring ultra precision, low ripple power supply charging up DAC.

AWARD WINNING TRUE REFERENCE DAC
With the design architecture implemented in the Denafrips Terminator II, the sound reproduction is of reference grade and transparent without any coloration.

SPECS
| R-2R DAC | Proprietary R2R + DSD Architecture True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters) Matched Precision Thin Film 0.005% R-2R Network Arrays |
| HIGHLIGHTS | Encapsulated Ultra Low Noise Power Supply High Precision Oven Controlled Crystals OCXO Total isolation of Digital and R-2R Boards Adaptive FIFO Buffer and Reclocking DSD1024, PCM1536 Supports On USB & I²S Input Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU Licensed Thesycon USB Driver For Windows Platform Driverless On Mac & Linux Dual AES/EBU Input Supports Sharp/Slow Filters Option I²S Pinout Configuration I²S DSD Channel Swap Configuration |
| DSD | DSD64-DoP On All Input DSD1024* On USB & I²S Input Only |
| PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input 1536kHz* On USB & I²S Input |
| NOTE : USB Firmware V3.4.1 – PCM1536 / DSD1024 supports disabled for compatibility with macOS | |

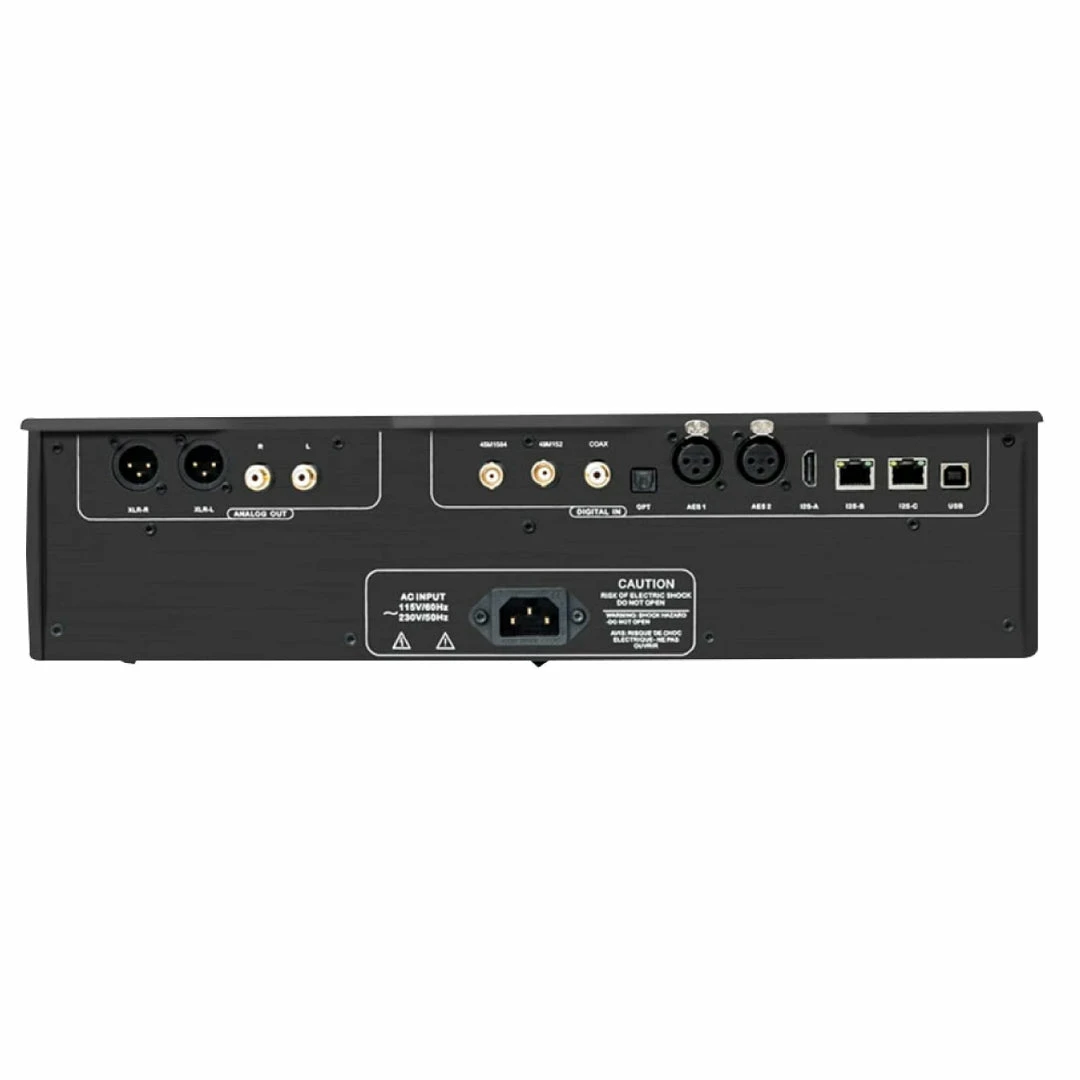

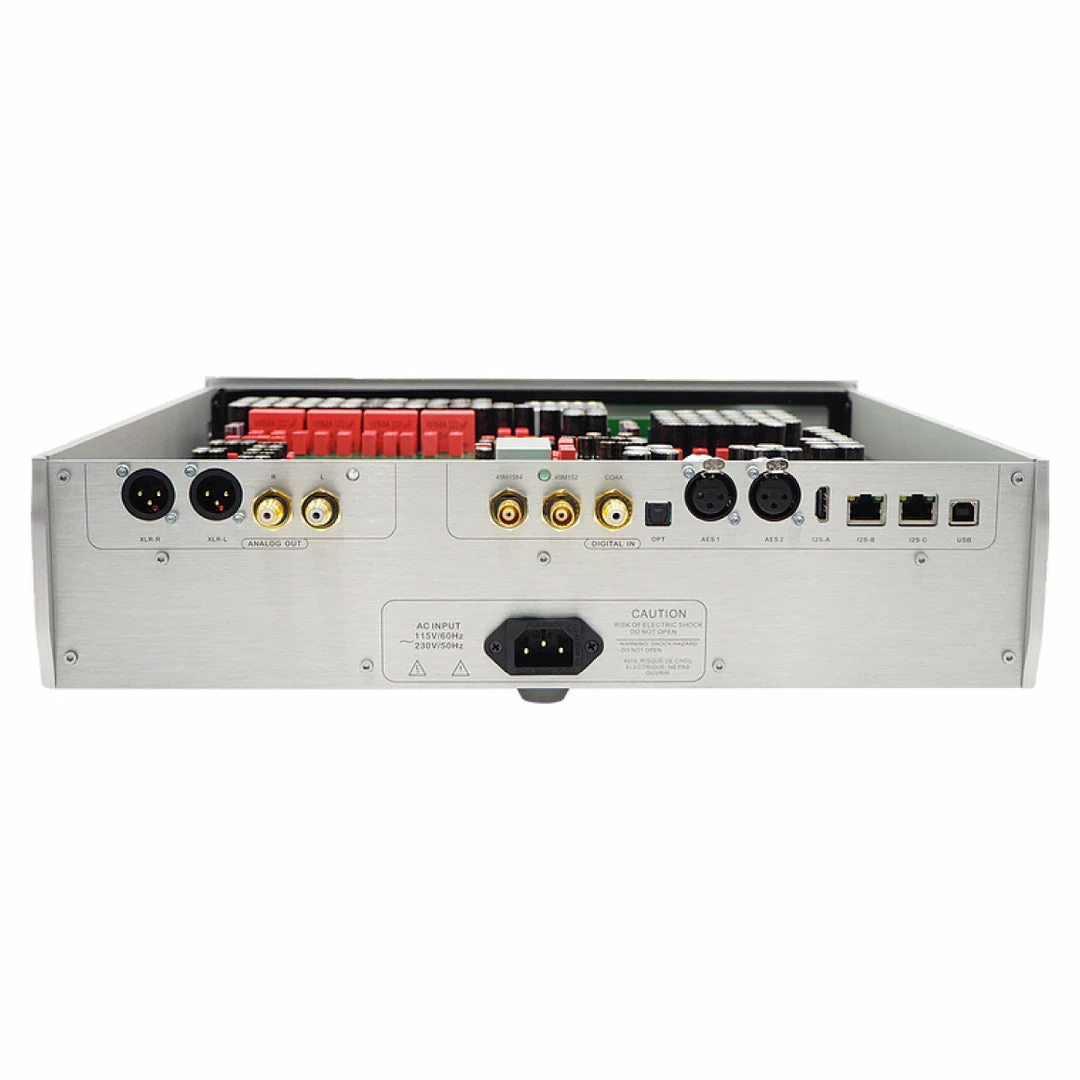

| DIGITAL INPUT | Coax via RCA TOSLink x 1 AES/EBU x 2 (Dual AES/EBU L/R Channel Input Supported) USB I²S via HDMI LVDS I²S via RJ45 LVDS I²S via RJ45 LVCMOS |
| ANALOG OUTPUT | RCA at 2.2Vrms, 625 Ω XLR at 4.4Vrms, 1250 Ω |
| SAMPLING MODE | Non-Oversampling NOS Oversampling OS |
| AC POWER REQUIREMENT | 100-240VAC, 50/60Hz (Worldwide Voltage) |
| POWER CONSUMPTION | ≤20W |
| FREQUENCY RESPONSE | 20-40KHz -0.2dB |
| THD+N | 0.0018% |
| S/N RATIO | 127dB |
| DYNAMIC RANGE | >132dB |
| STEREO CROSSTALK | -110dB |
| DIMENSIONS | 430 x 380 x 105 mm |
| WEIGHT | 19 Kg |
| COLOR | Silver / Black |
| BOX CONTENTS | 1. Denafrips Terminator II |
| 2. User Manual |
FAQs
USER GUIDE
I²S Pinout Configuration
Filter Selection (Effective in OS Only)
Dual AES/EBU Input
WARRANTY
3 Year Warranty
Don’t sweat it, this Denafrips Terminator II comes with a 3 year warranty from Denafrips that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer’s warranty.
